Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil level indicator tube (1).

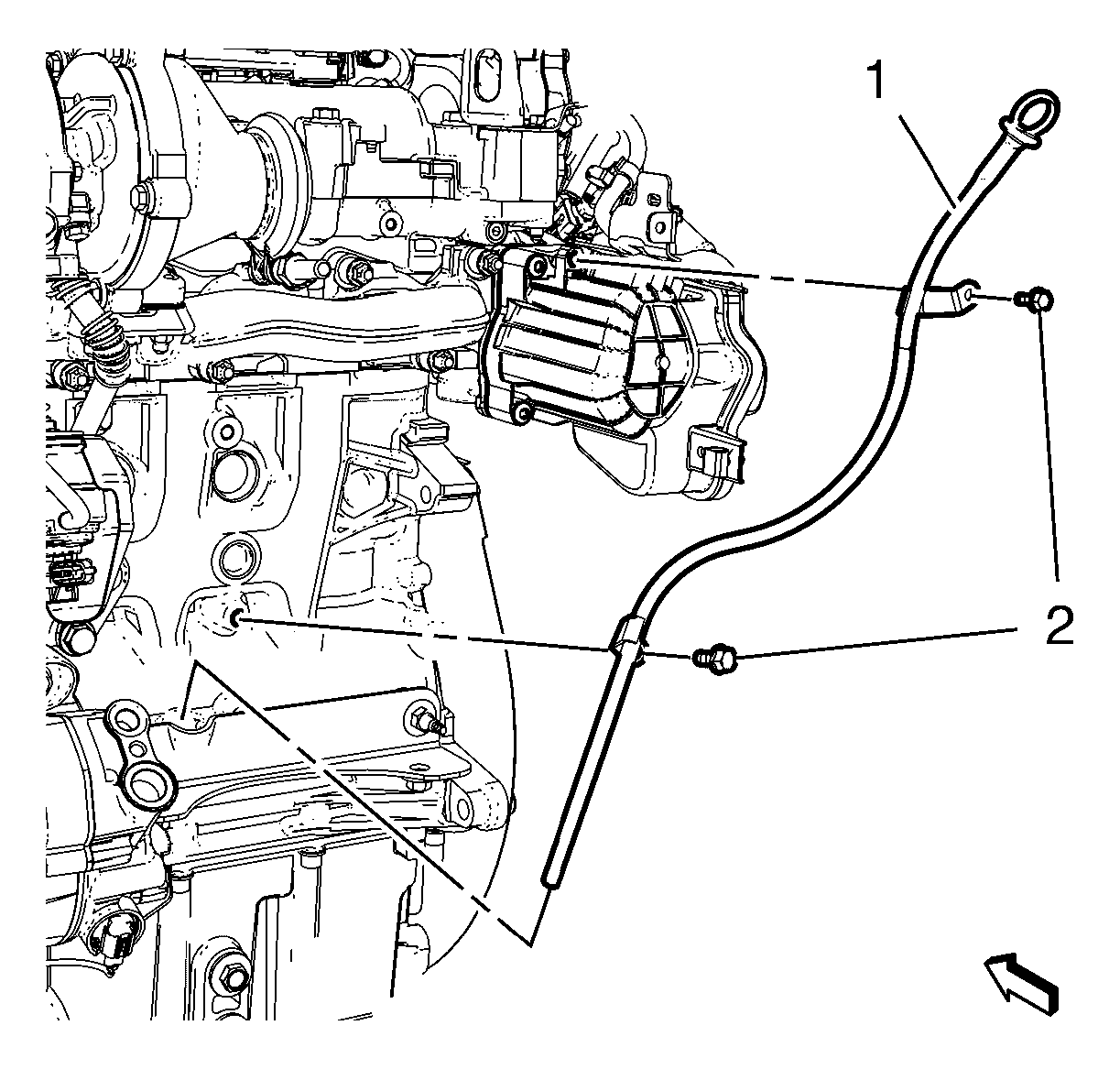

    Fig 1: Oil Level Indicator Tube And Bolts
    GM2190564Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 oil level indicator tube bolts (2) and tighten:
    CAUTION: Refer to Fastener Caution .
    • M6x16 to 9 N.m (80 lb in).
    • M8x16 to 25 N.m (18 lb ft).
  3. Close the hood.
