Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the intake camshaft (1).

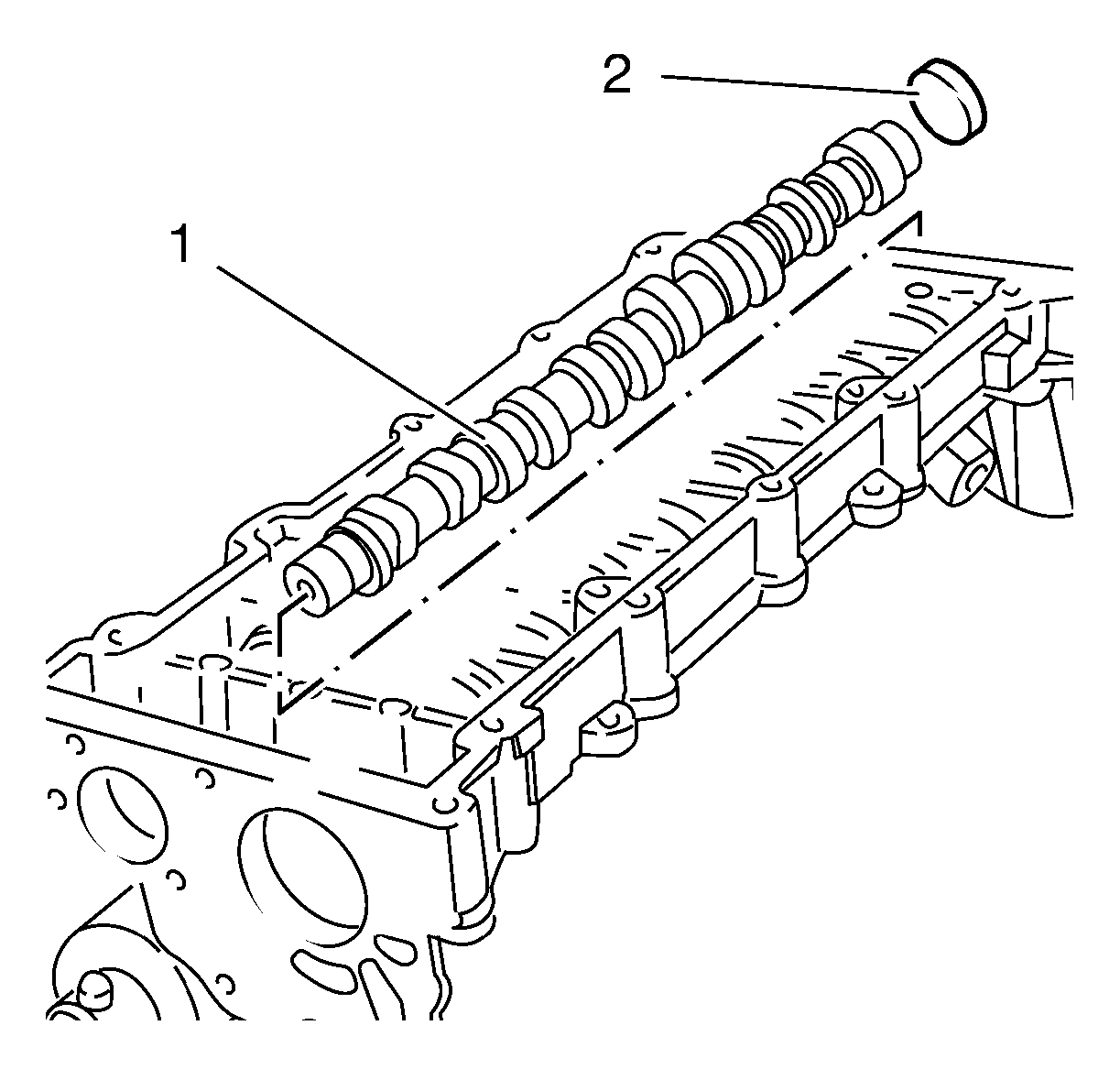

    Fig 1: Identifying Intake Camshaft And Camshaft Housing Plug
    GM2026776Courtesy of GENERAL MOTORS COMPANY
  2. Install a NEW camshaft housing plug (2).
  3. Install the EN-46789  Camshaft Locking Tool.
  4. Install the intake camshaft sprocket (1).

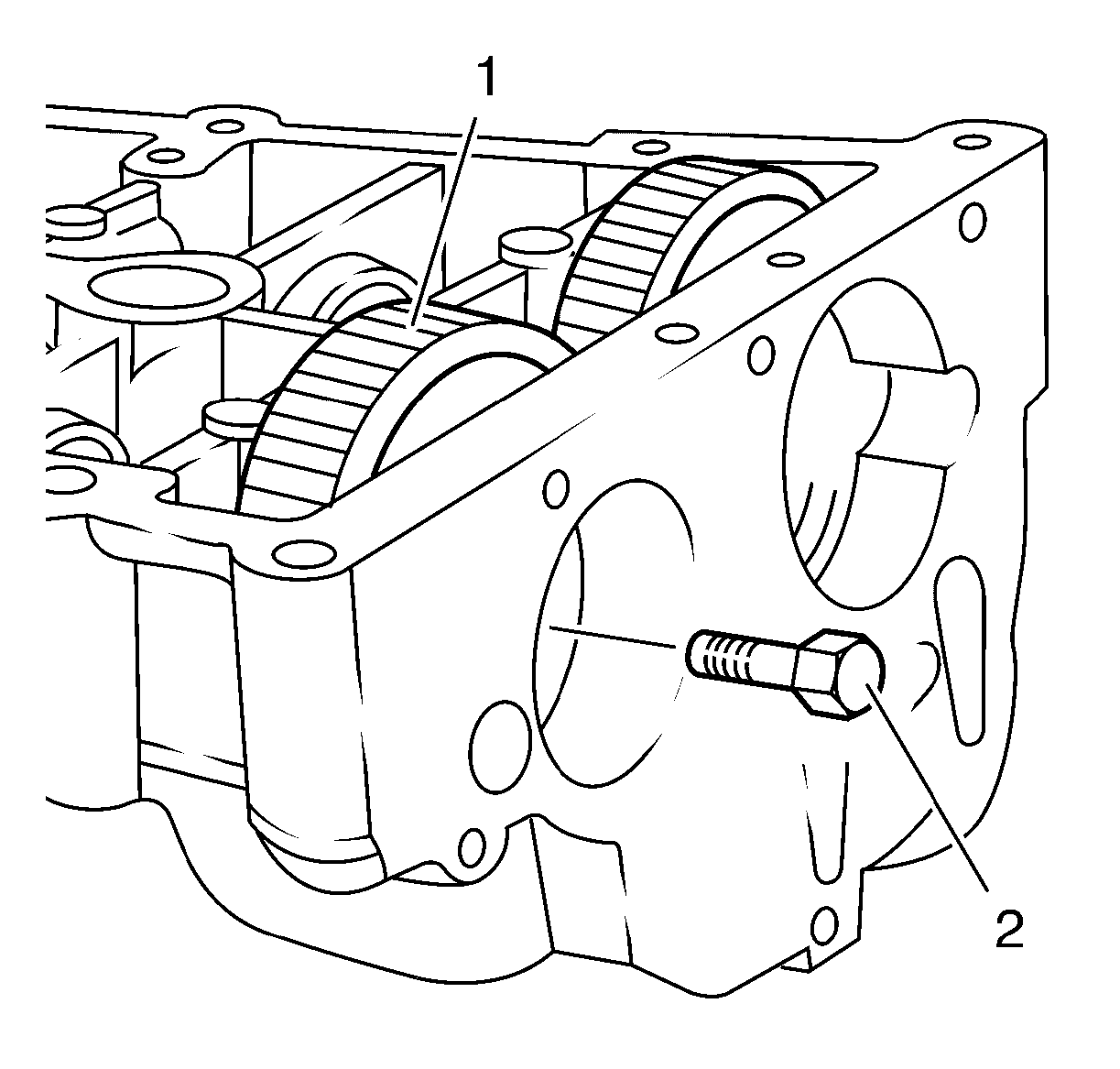

    Fig 2: Identifying Intake Camshaft Sprocket Bolt
    GM2026778Courtesy of GENERAL MOTORS COMPANY
  5. Install the NEW intake camshaft sprocket bolt (2) and tighten a first pass to 40 N.m (30 lb ft).
    CAUTION: Refer to Fastener Caution .
    CAUTION: Refer to Torque-to-Yield Fastener Caution .
  6. Tighten the NEW intake camshaft sprocket bolt a final pass to an additional 55 degrees, using the EN-45059  meter.
  7. Remove the EN-46789  Camshaft Locking Tool.
  8. Install the camshaft housing. Refer to Camshaft Housing Replacement .
