Installation Procedure
WARNING: This page is about a different variant/trim than selected.

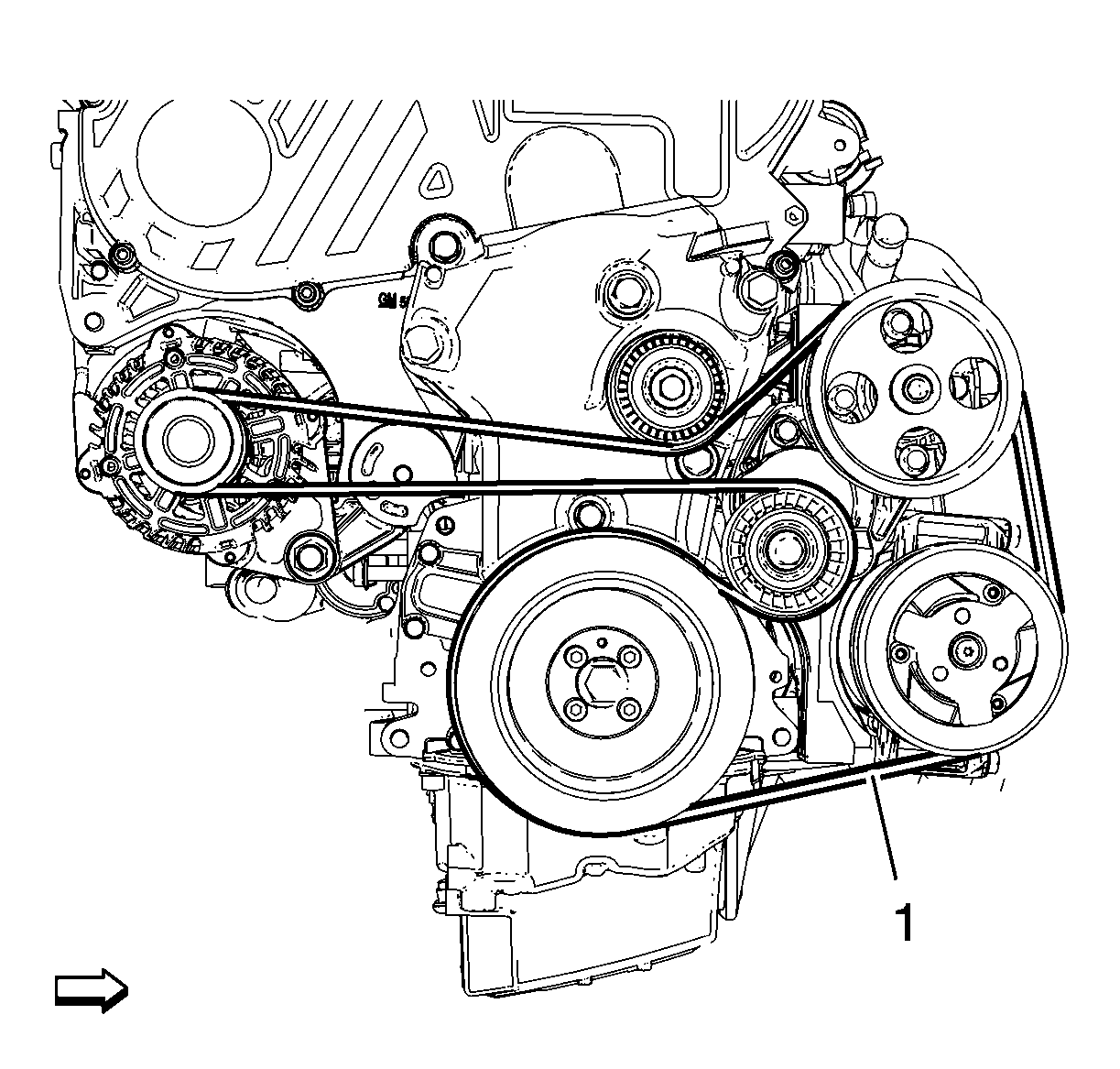

- Install and position the generator, air conditioning compressor and power steering pump belt (1) around all of the pulleys.

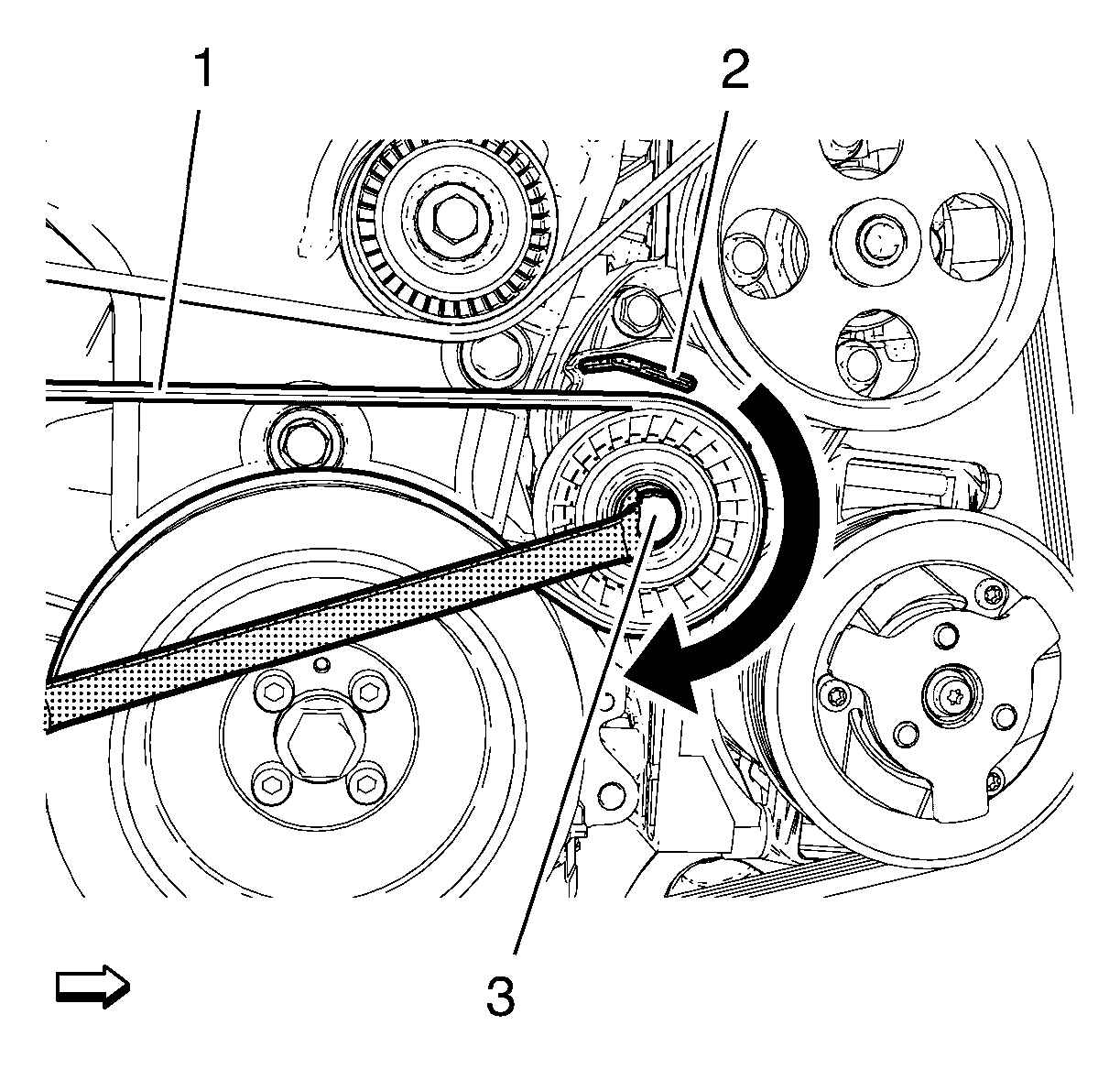

- Install the EN-913-A wrench to the drive belt tensioner bolt (3).
- Rotate the tensioner clockwise (see arrow in graphic).
- Remove the EN-6130 holding pin (2).
- Rotate the EN-913-A wrench counterclockwise to bring the tension to the generator, air conditioning compressor and power steering pump belt.
- Remove the EN-913-A wrench.
- Install the front right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
