Engine Oil Level Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

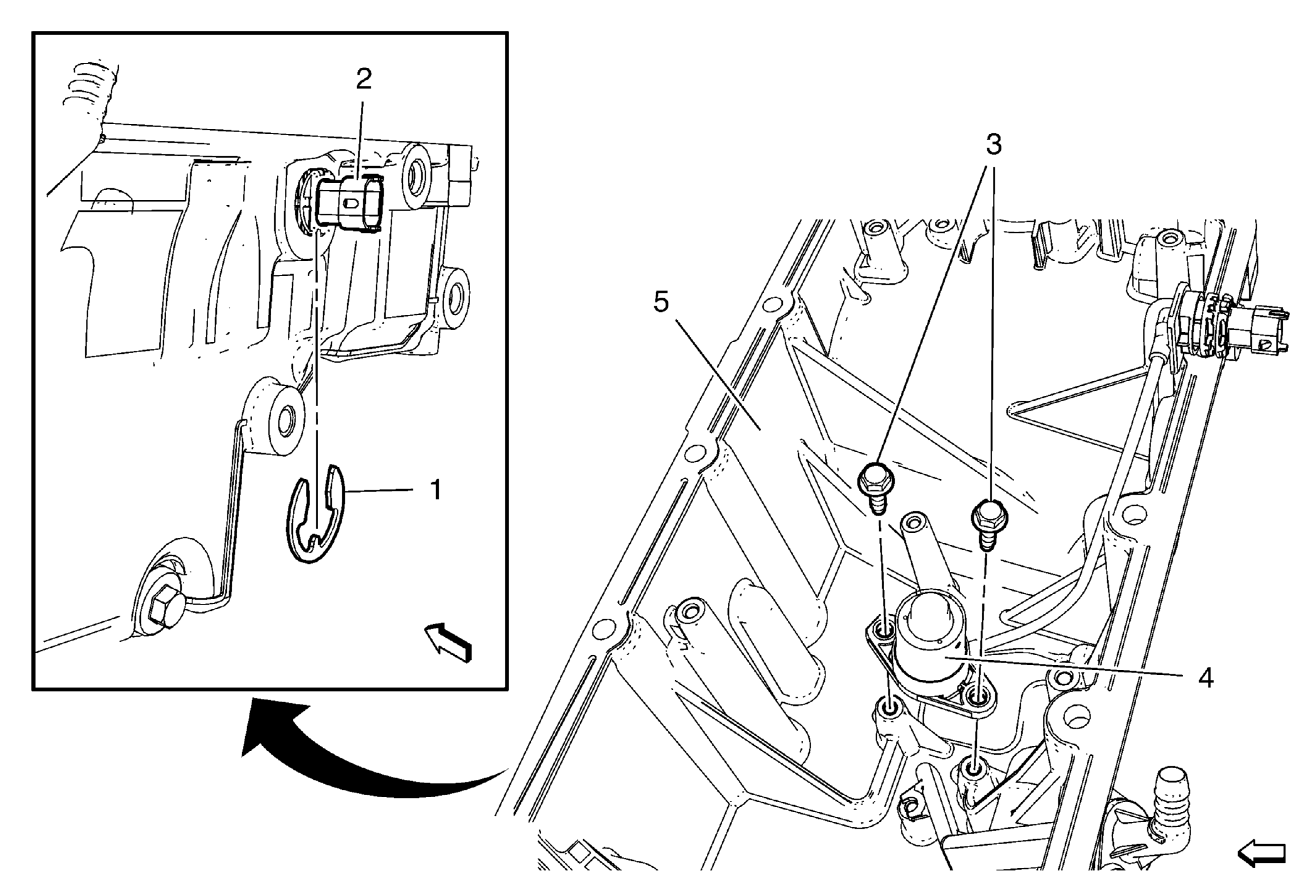

Fig 1: Engine Oil Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Remove the oil pan. Refer to Oil Pan Replacement .
1	Engine Oil Level Sensor Lead Clip Procedure Remove the oil level sensor lead clip and push the oil level sensor wiring harness plug out of the guide.
2	Engine Oil Level Sensor Plug
3	Engine Oil Level Sensor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
4	Engine Oil Level Sensor
5	Oil Pan
