Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Coat the oil pan heater with *Elastosil® P12 thermal paste

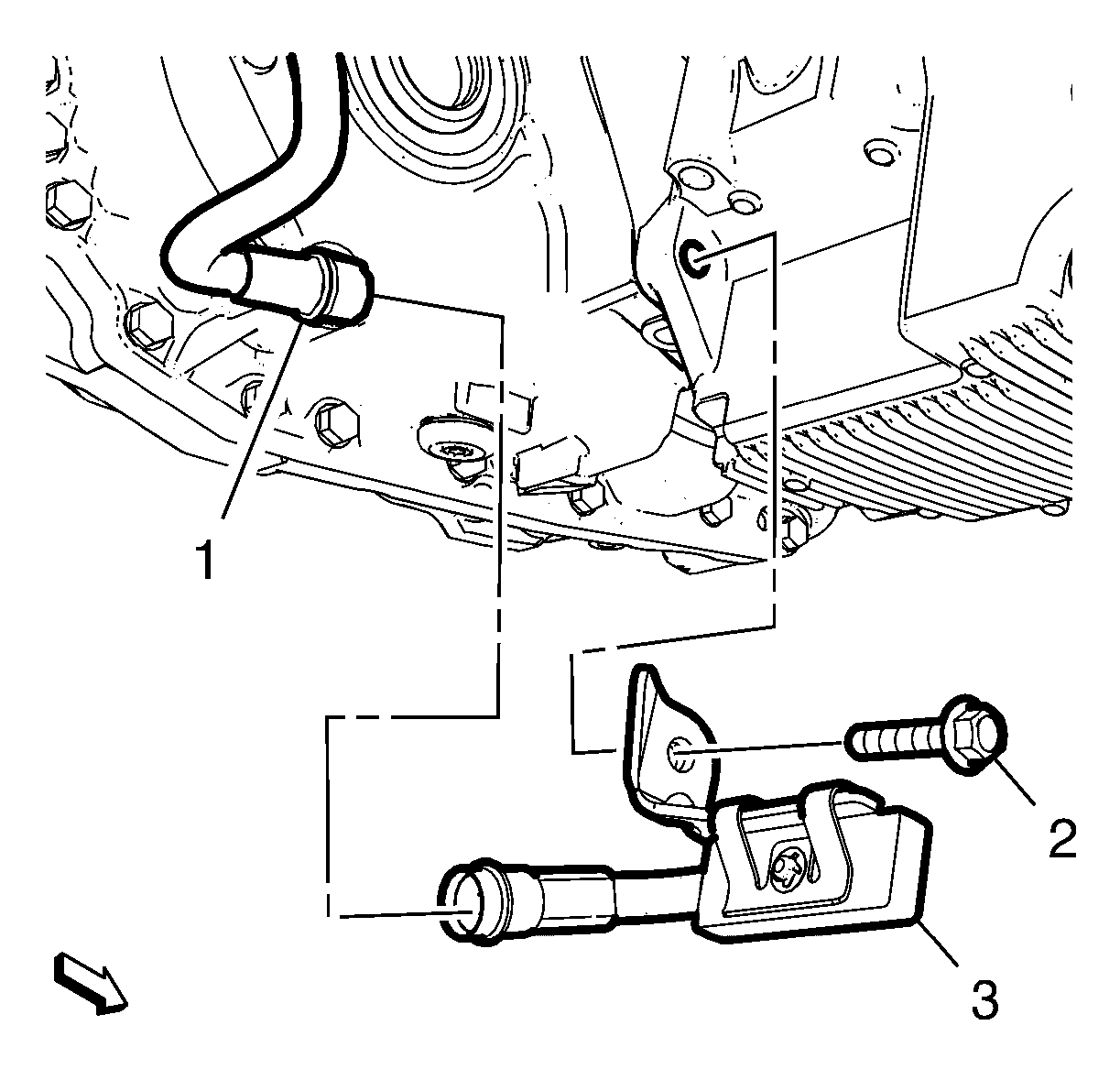

    Fig 1: Engine Oil Heater Bolt
    GM2969164Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine oil heater (3).
  3. Install the engine oil heater bolt (2) and tighten to 58 N.m (43 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. Connect the wiring harness (1).
  5. Install the front compartment insulator. Refer to Front Compartment Insulator Replacement .
