Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Install the mount wire tie clips and retainers as necessary.
NOTE: Note the original installation position of the mount wire tie clips and retainers.
Install the engine oil heater power cable (3).

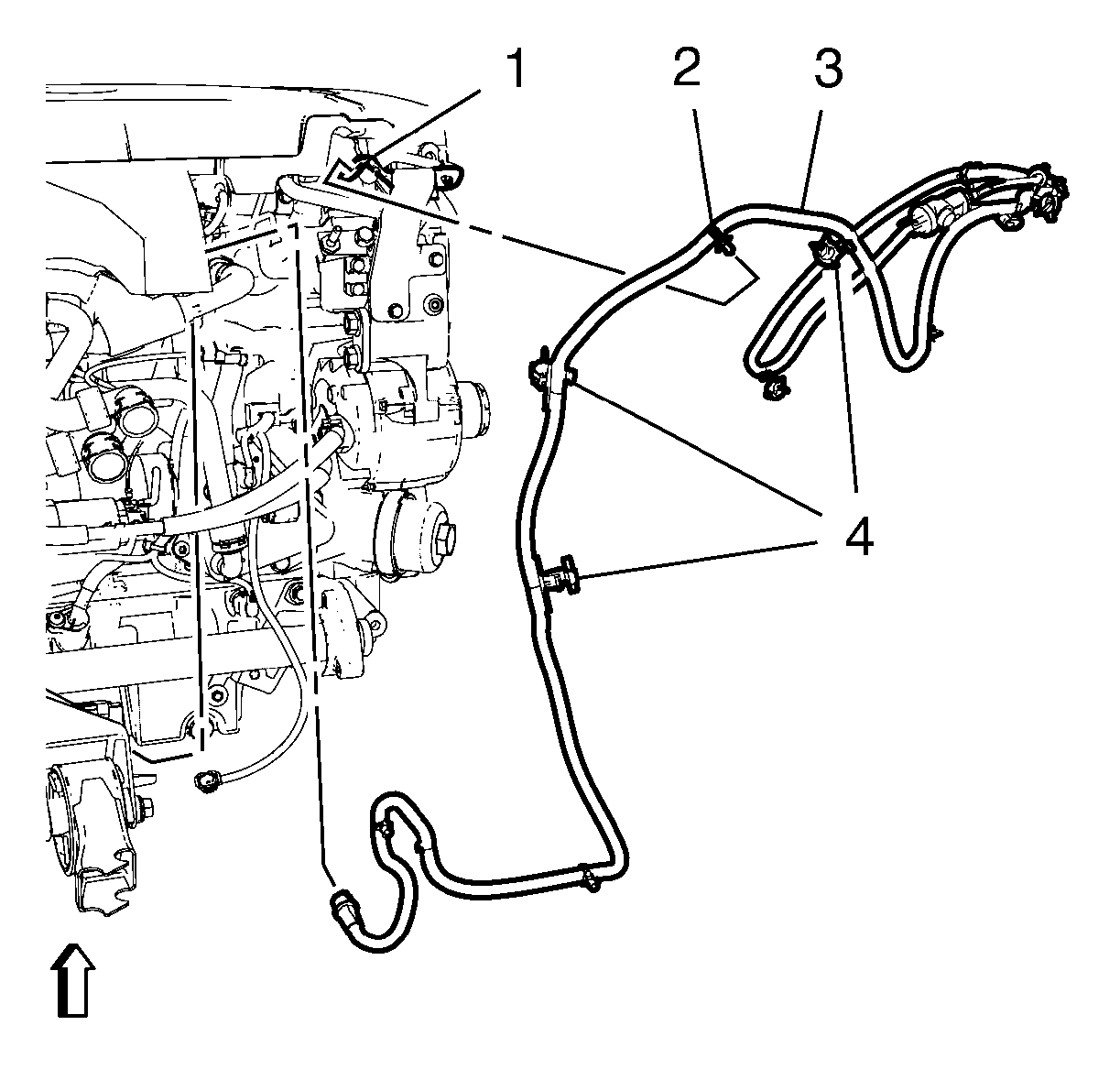

Fig 1: Mount Wire Tie Clip And Bracket
Courtesy of GENERAL MOTORS COMPANY
Install the engine oil heater power cable (3) to the retainers (4).
Install the mount wire tie clip (2) to the bracket (1).
Position the engine oil heater power cable (1). Fasten the retainers.

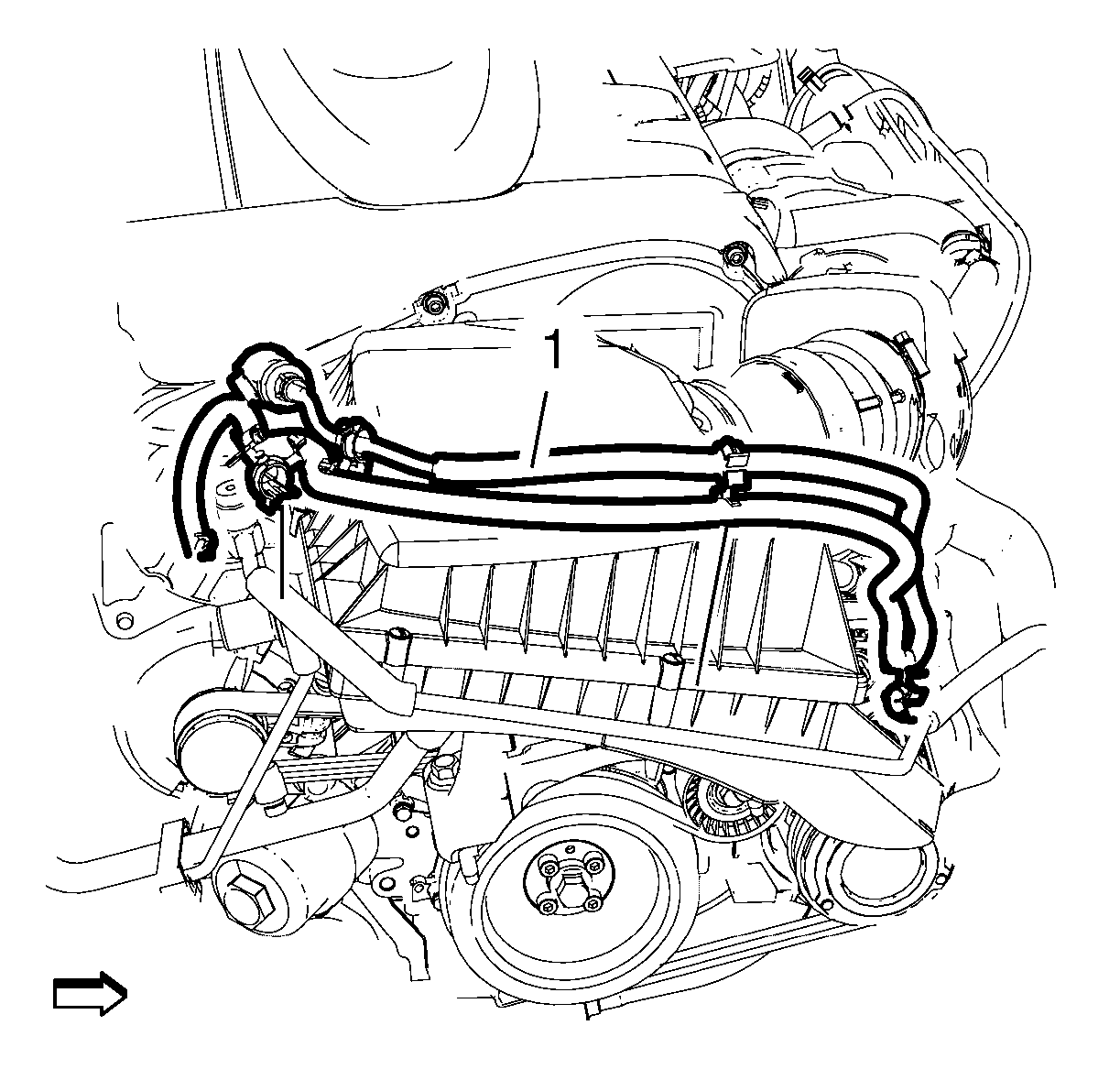

Fig 2: Engine Oil Heater Power Cable
Courtesy of GENERAL MOTORS COMPANY
Raise the vehicle.
Install the 3 mount wire tie clips (1).

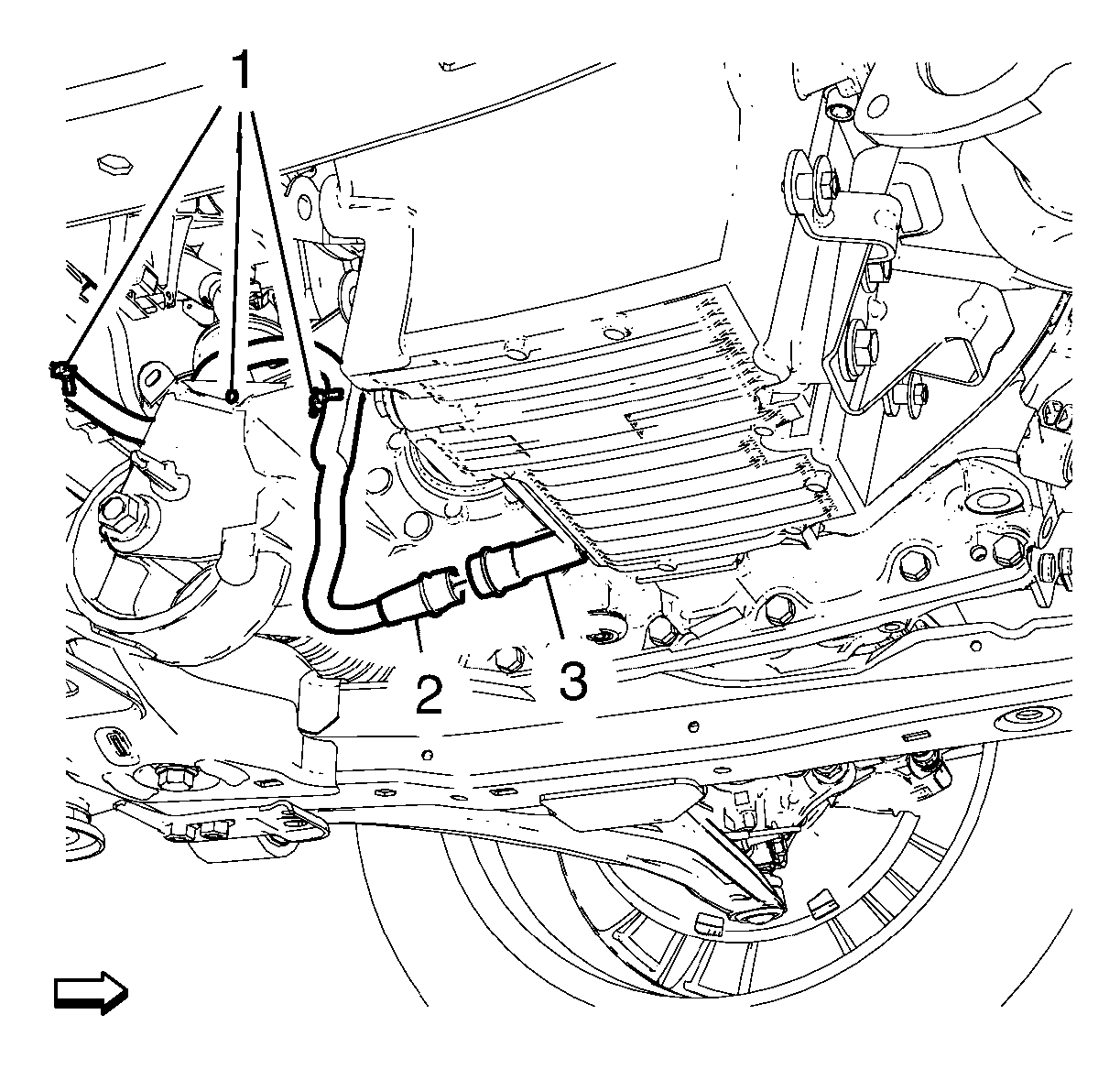

Fig 3: Engine Oil Heater Power Cable Plug And Engine Oil Heater
Courtesy of GENERAL MOTORS COMPANY
Connect the engine oil heater power cable plug (2) to the engine oil heater (3).
Install the front compartment insulator. Refer to Front Compartment Insulator Replacement .
Lower the vehicle.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
