Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Open the hood.
  2. Remove the crankshaft sprocket. Refer to Crankshaft Sprocket Replacement .
  3. Place a collecting basin underneath.
    Fig 1: Placing Collecting Basin Underneath
    GM2191124Courtesy of GENERAL MOTORS COMPANY

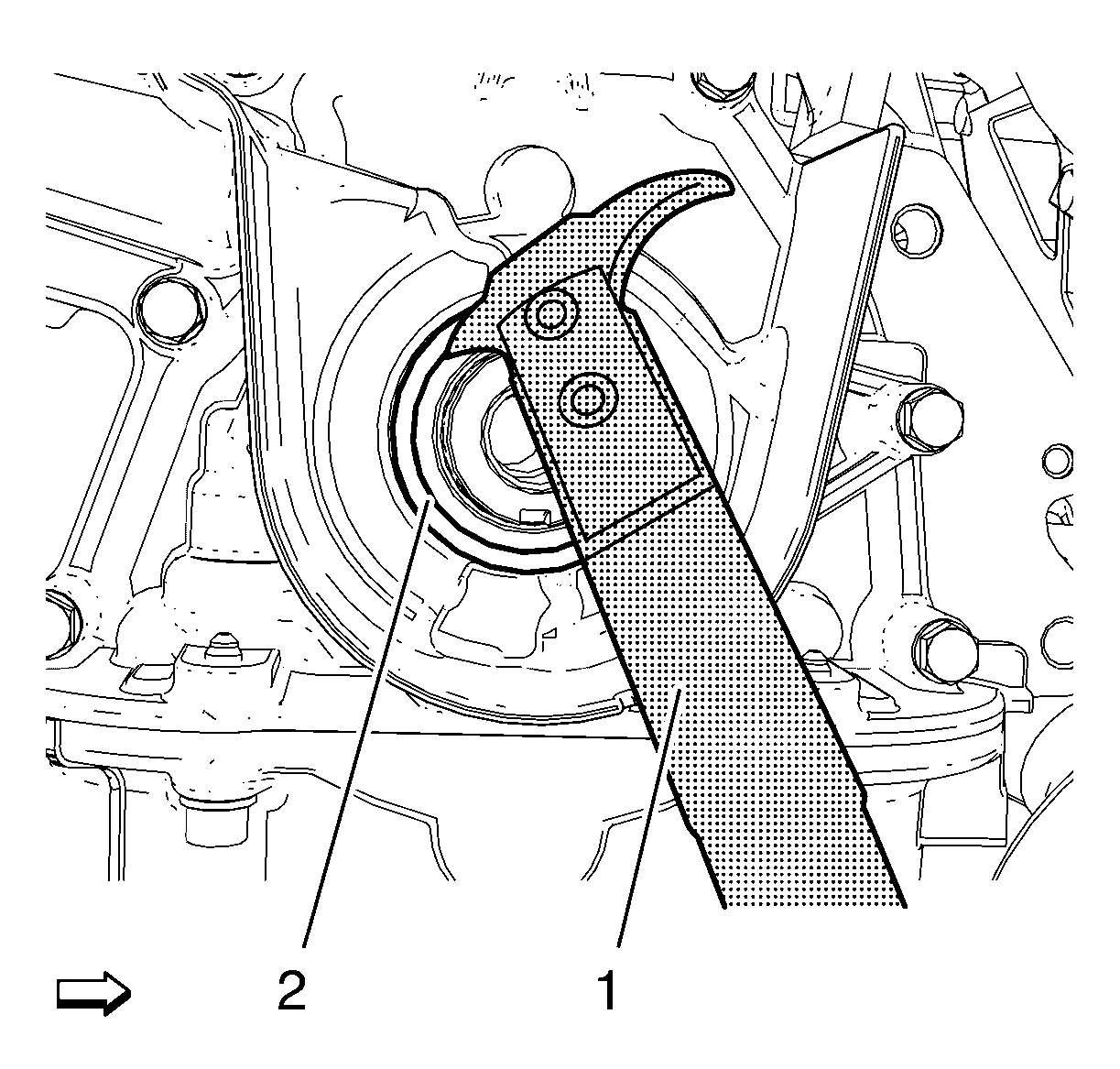

  4. Install the EN-45000  remover (1) to the crankshaft front oil seal (2).
    NOTE: DO NOT damage the sealing surface.
  5. Lever out the crankshaft front oil seal (2) by using EN-45000  remover.
