Installation Procedure

WARNING: This page is about a different variant/trim than selected.

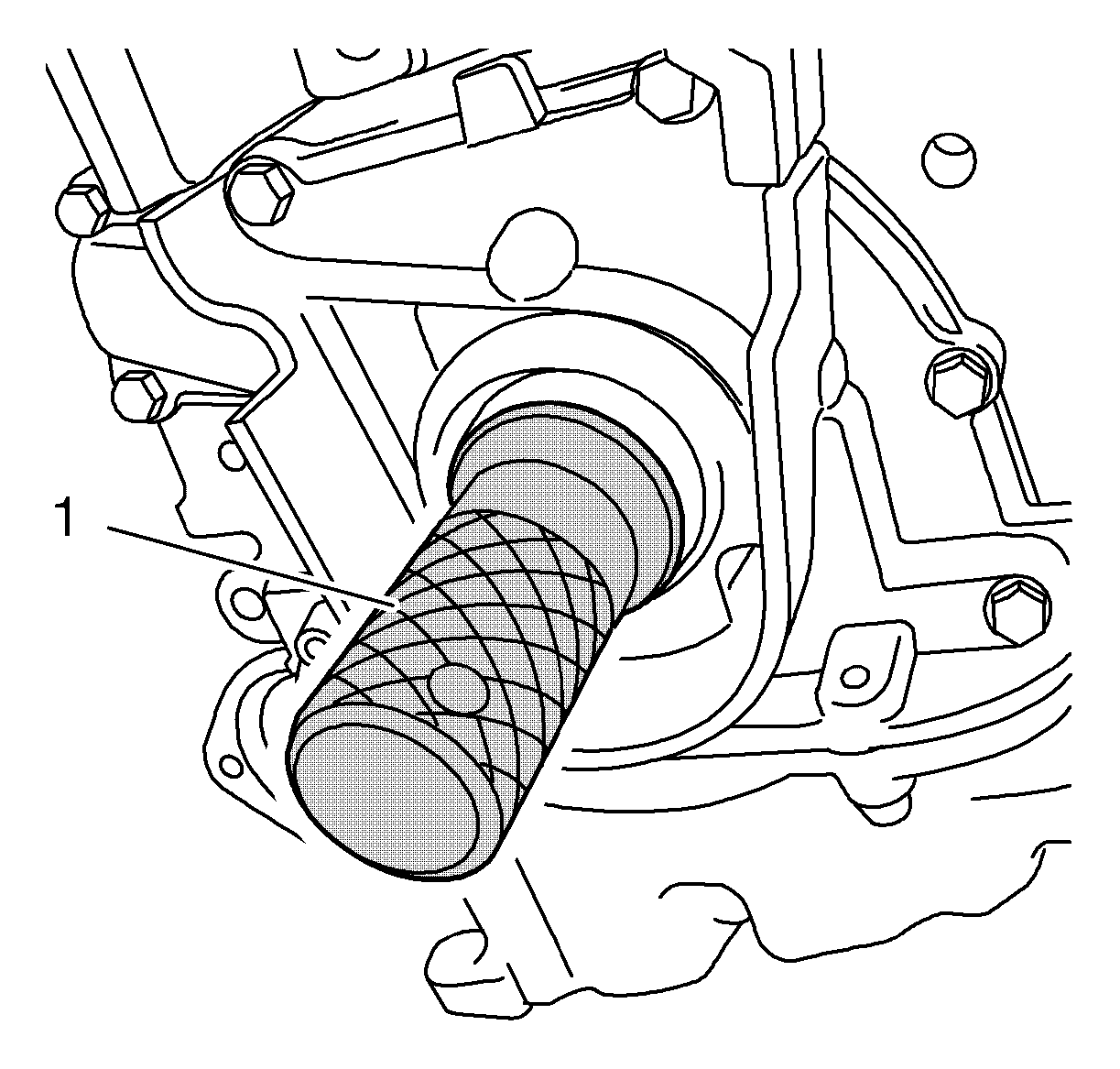

  1. Install a NEW crankshaft front oil seal to the crankshaft by using EN-46793  installer (1).
    Fig 1: Cleaning Sealing Surface
    GM2191075Courtesy of GENERAL MOTORS COMPANY
    NOTE: Clean the sealing surface.
    NOTE: Moisten the crankshaft front oil seal ring with a little silicone grease.
  2. Install the crankshaft sprocket. Refer to Crankshaft Sprocket Replacement .
  3. Close the hood.
