Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the camshaft sprocket (1) and loosely install the camshaft sprocket bolt (2).

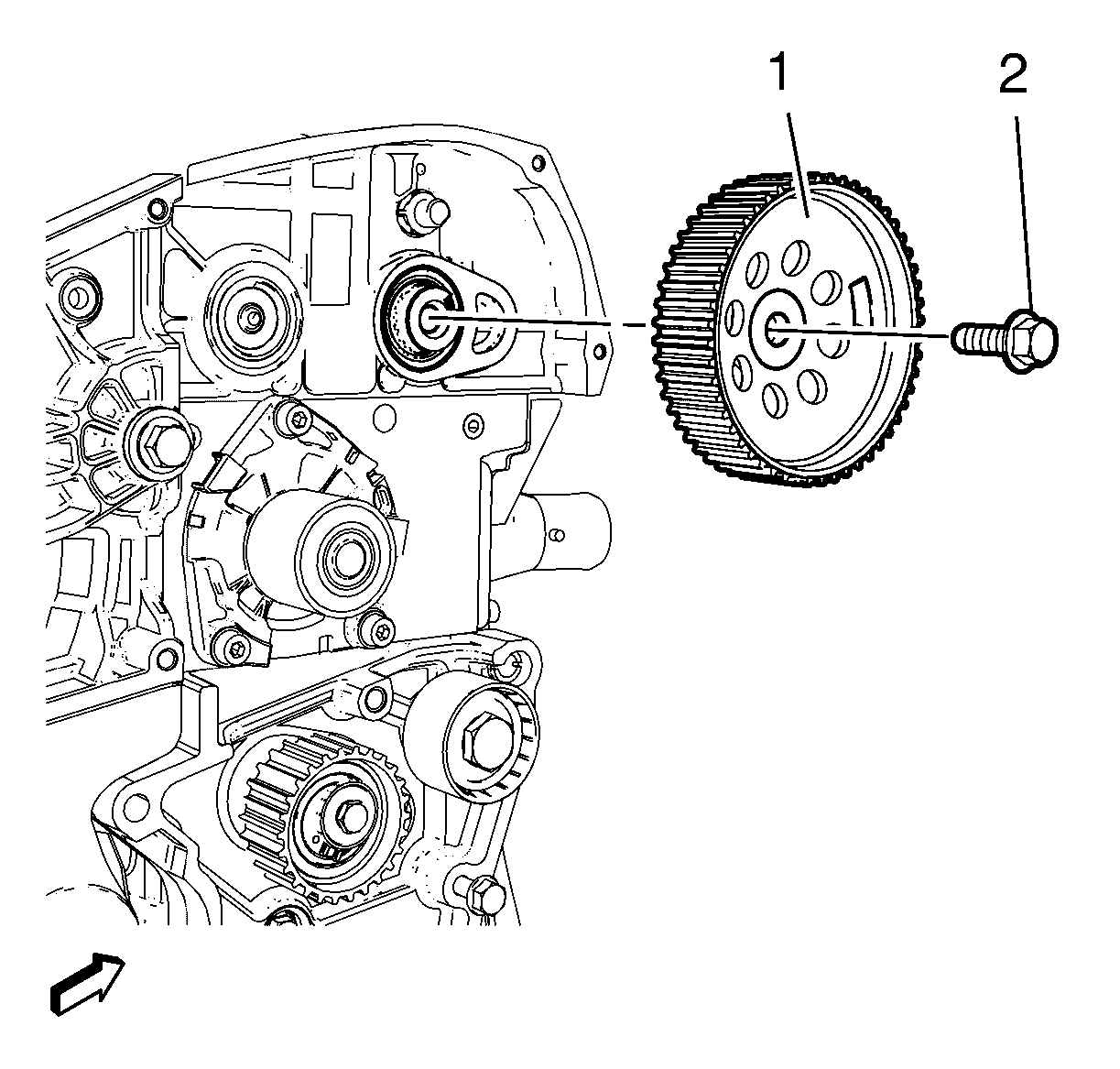

    Fig 1: Camshaft Sprocket Bolt And Camshaft Sprocket
    GM2189677Courtesy of GENERAL MOTORS COMPANY
    NOTE: Finally tighten the camshaft sprocket bolt after installing the timing belt.
  2. Install the timing belt. Refer to Timing Belt Replacement (New Belt)  and Timing Belt Replacement (Used Belt) .
  3. Close the hood.
