Water Pump Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the NEW water pump gasket (3).

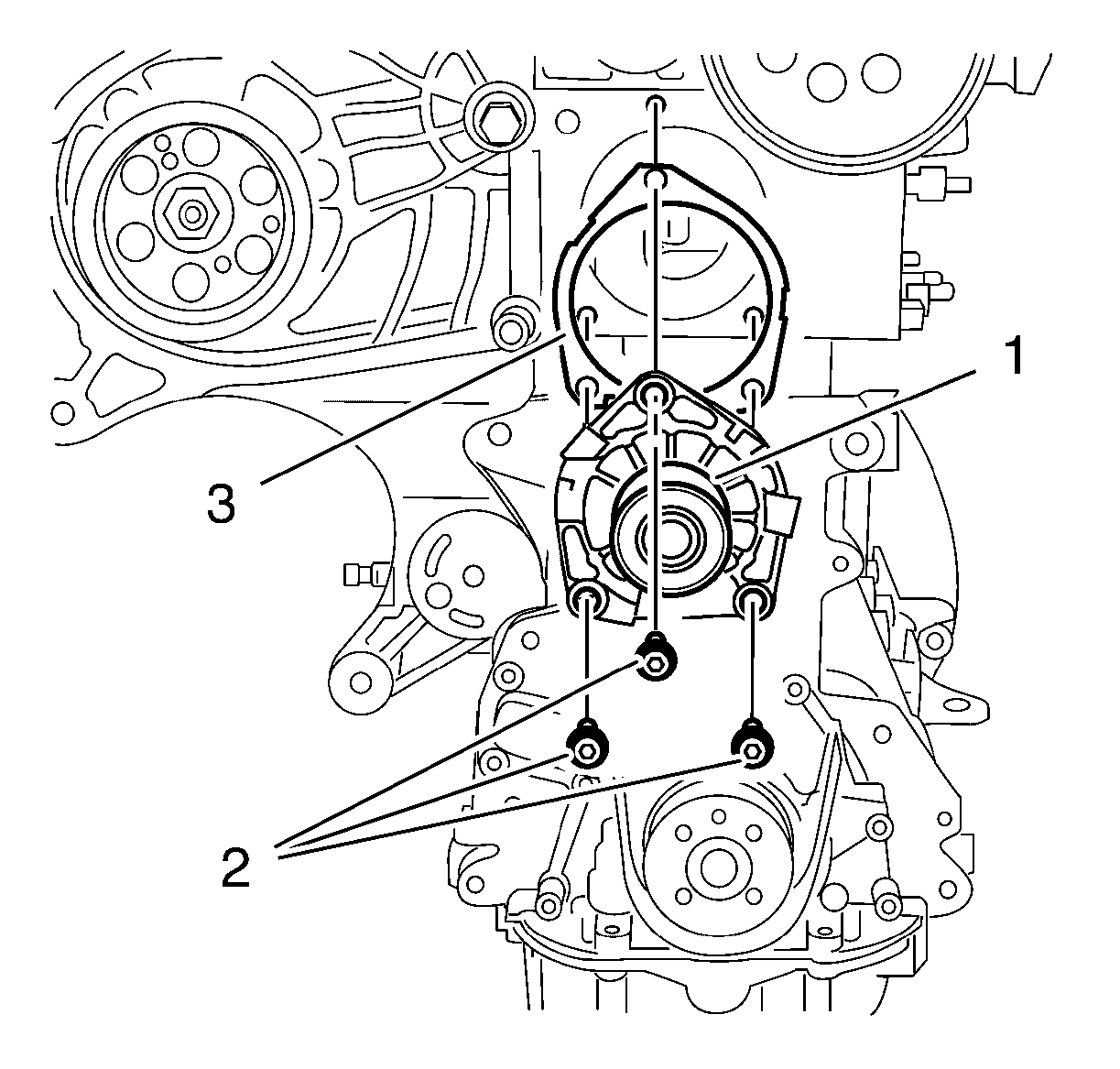

    Fig 1: Water Pump Gasket
    GM2026616Courtesy of GENERAL MOTORS COMPANY
  2. Install the water pump (1).
  3. Install the 3 water pump bolts (2) and tighten to 25 N.m (18 lb ft).
    CAUTION: Refer to Fastener Caution .
