Valve Lifter Roller Installation
WARNING: This page is about a different variant/trim than selected.

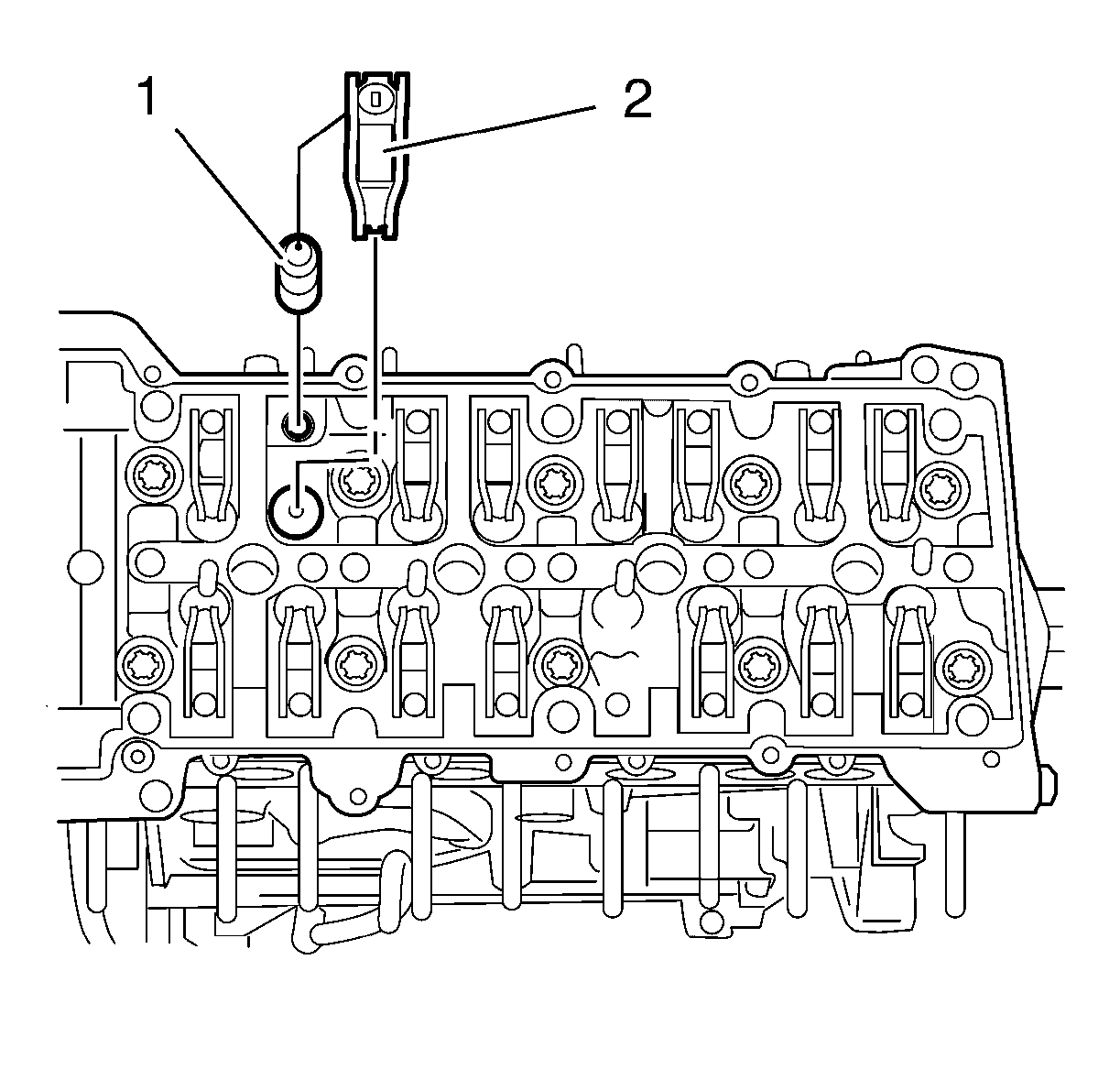

- Install the valve lifter roller (2) on the top of the valve stem and on the lash adjuster (1).
NOTE: Used roller followers MUST be returned to their original position on the camshaft. If the camshaft is being replaced, the roller followers actuated by the camshaft must also be replaced.
- Lubricate the roller followers (2). Refer to Adhesives, Fluids, Lubricants and Sealers for the recommended lubricant.
