Turbocharger Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the 3 exhaust manifold nuts (1, 2).

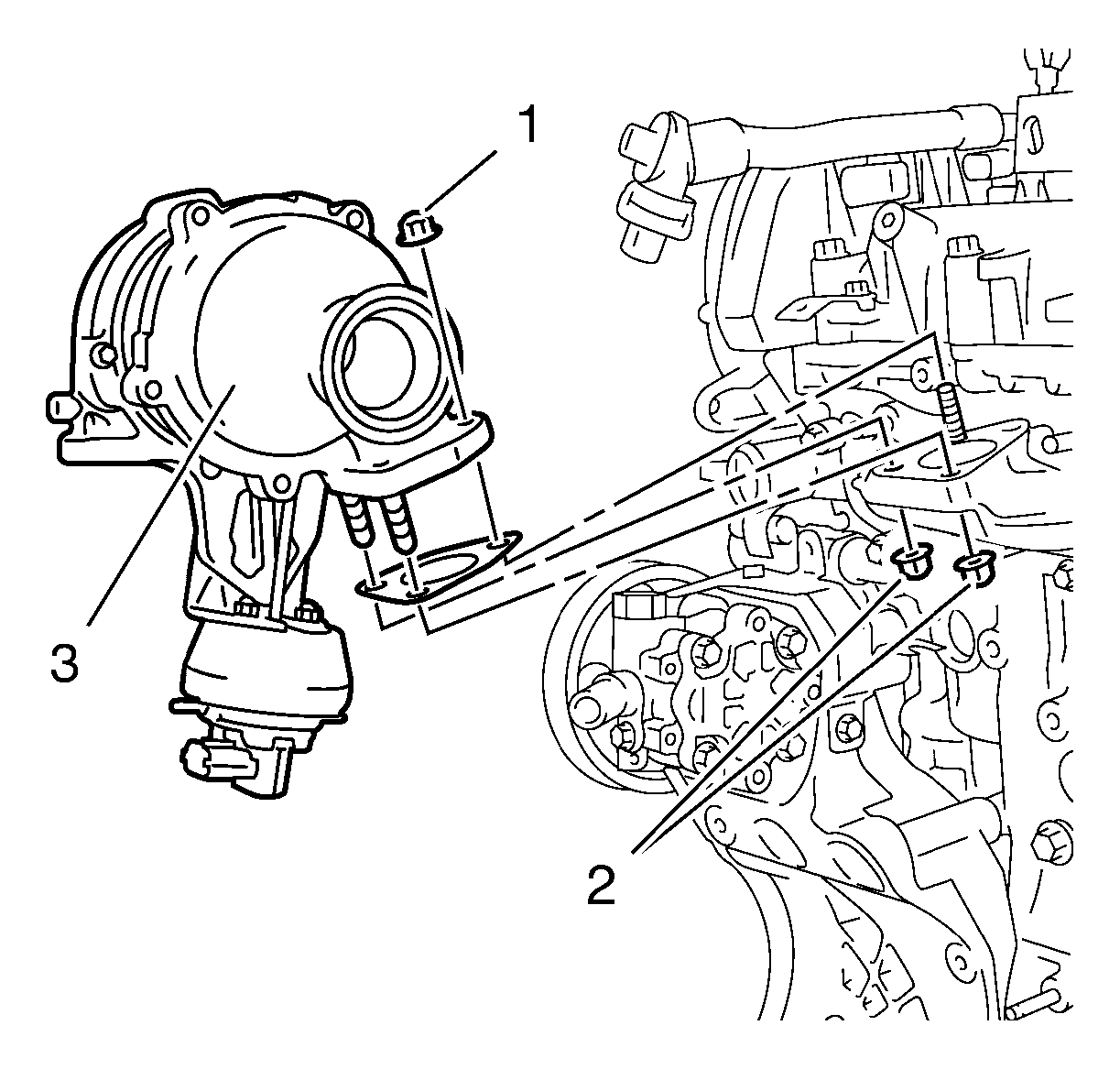

    Fig 1: Exhaust Manifold Nuts And Turbocharger
    GM2026561Courtesy of GENERAL MOTORS COMPANY
  2. Remove the turbocharger (3).
  3. Remove the turbocharger gasket.
  4. Clean all of the gasket surfaces.
