Turbocharger Oil Feed Pipe Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the turbocharger oil feed pipe (2).

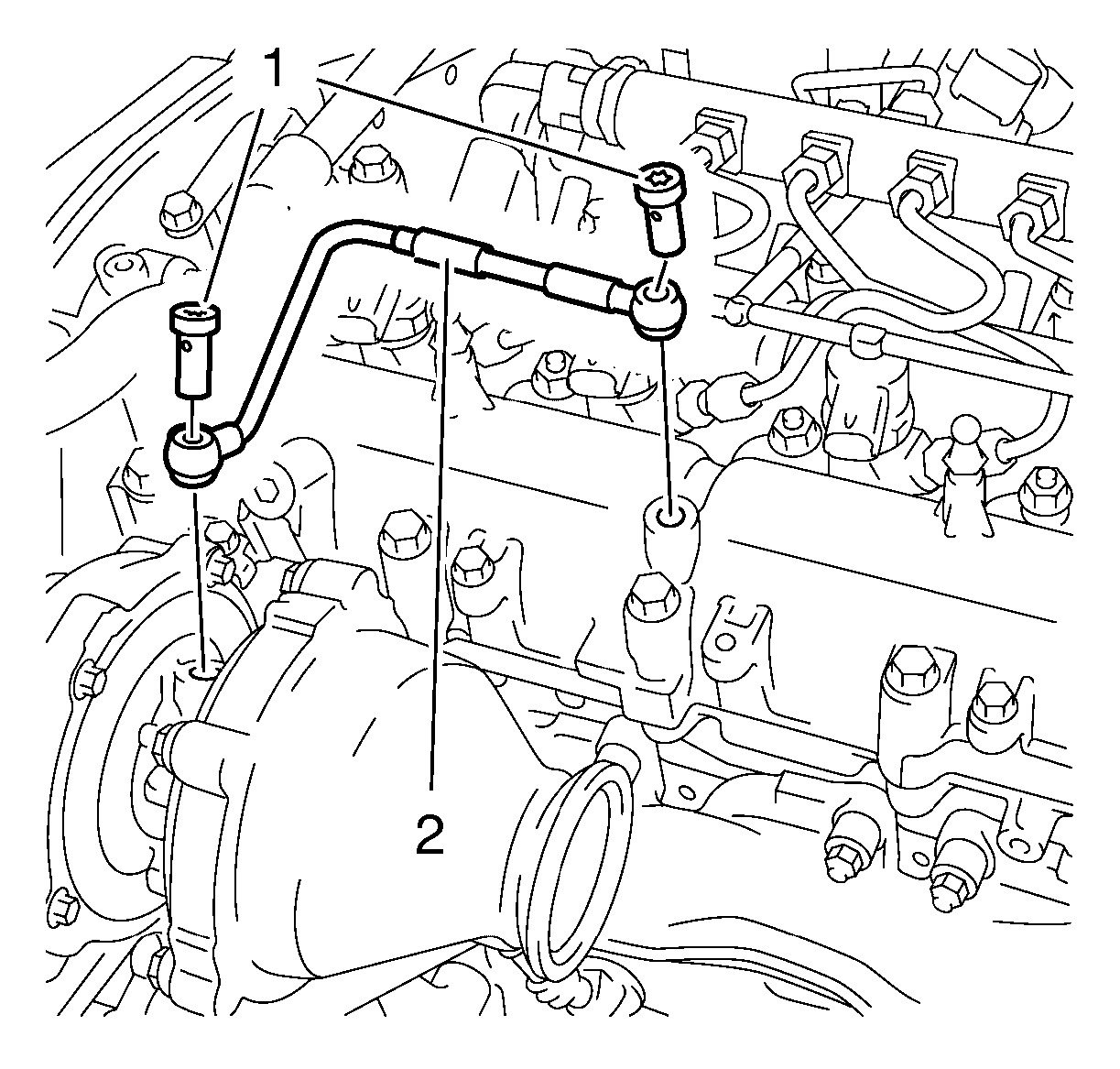

    Fig 1: Turbocharger Oil Feed Pipe Bolts
    GM2026560Courtesy of GENERAL MOTORS COMPANY
  2. Install the 4 turbocharger oil feed pipe gaskets.
  3. Install the turbocharger oil feed pipe bolts (1) and tighten to 20 N.m (15 lb ft).
    CAUTION: Refer to Fastener Caution .
