Turbocharger Heat Shield Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the turbocharger heat shield (2).

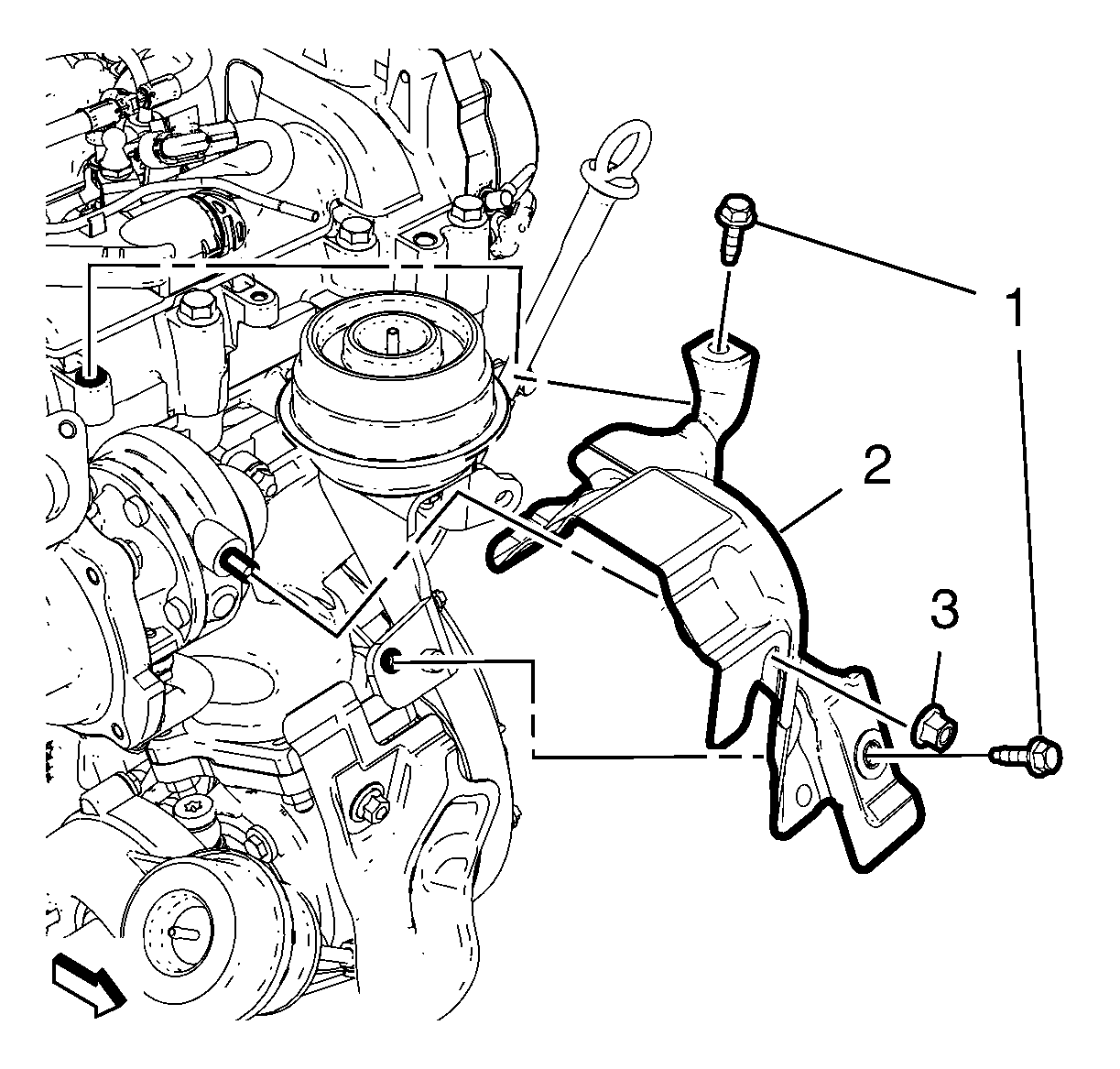

    Fig 1: Turbocharger Heat Shield Bolts
    GM2741301Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 turbocharger heat shield bolts (1) and tighten to 10 N.m (89 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the turbocharger heat shield nut (3) and tighten to 10 N.m (89 lb in).
