Turbocharger Cleaning and Inspection
WARNING: This page is about a different variant/trim than selected.
- Clean all mating surfaces.
NOTE: Completely inspect the turbocharger and all other engine components that may cause similar conditions before replacing the turbocharger.
- Inspect all threaded holes for damage.

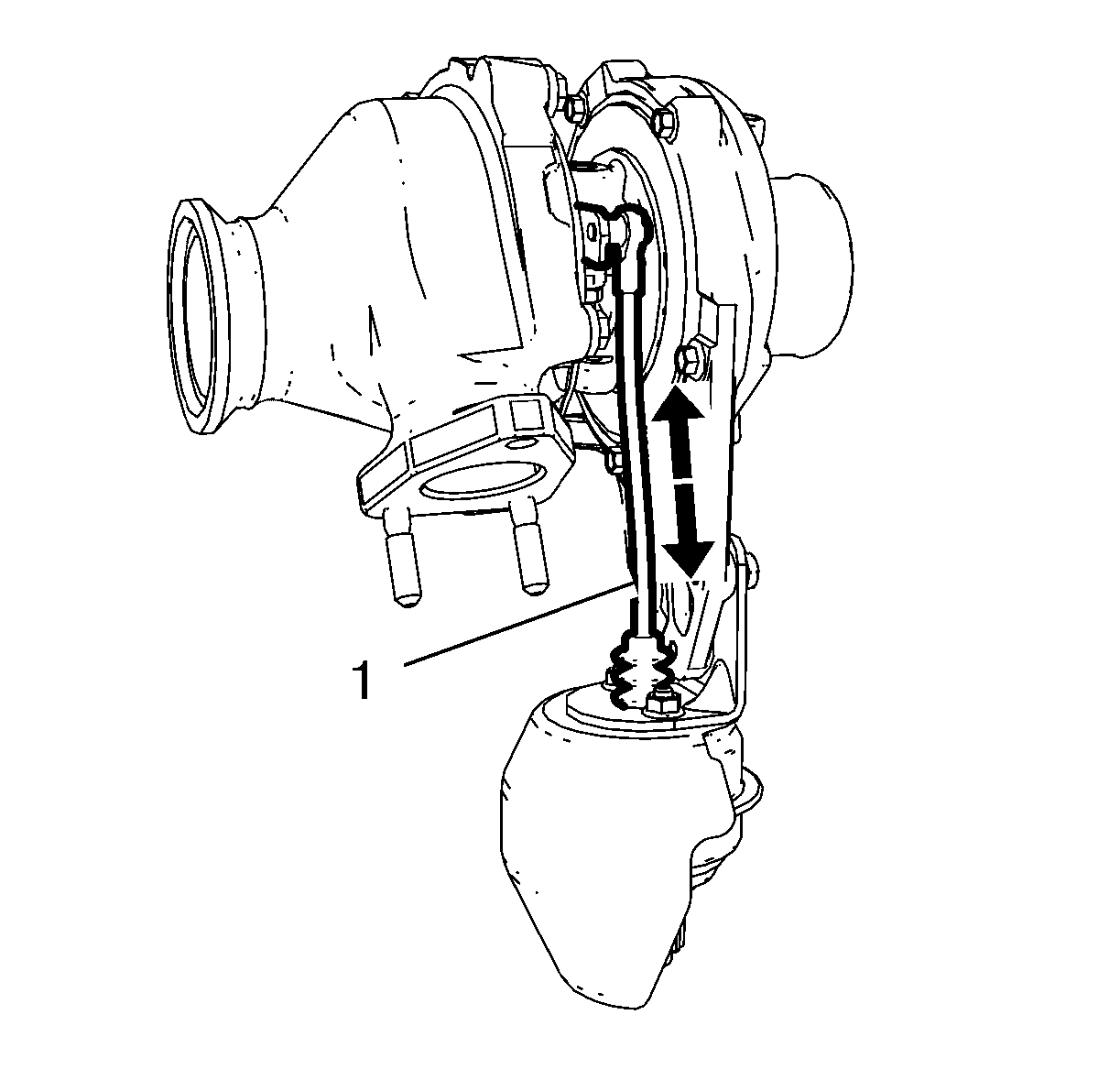

- Inspect the wastegate actuator rod (1) for damage and functionality.
- Inspect the compressor and turbine blades for damage or foreign material.
- Clean the turbocharger inlet mating surfaces.
- Inspect the turbocharger inlet mating surfaces for damage. Replace the turbocharger if damage is found.
- Inspect the turbocharger wastegate regulator solenoid hoses for damage. Replace the hoses if necessary.
- Inspect the turbocharger oil feed and return pipes for damage or restriction. Do NOT attempt to clean or repair the pipes. Replace any pipe that has damage or a restriction.
