Timing Belt Tensioner Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the timing belt tensioner (1).

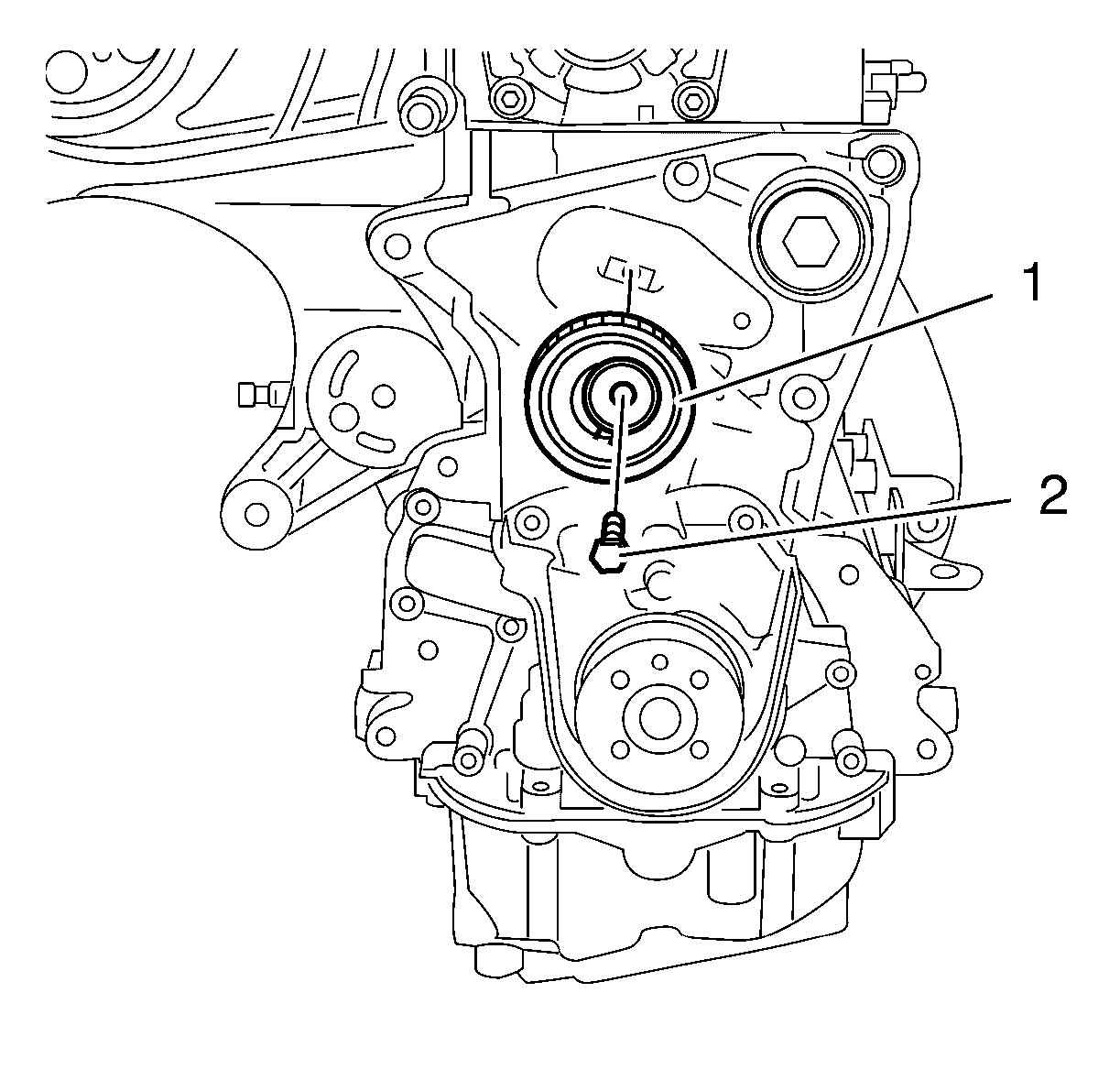

    Fig 1: Timing Belt Tensioner
    GM2026613Courtesy of GENERAL MOTORS COMPANY
  2. Install the timing belt tensioner bolt (2) and tighten to 25 N.m (19 lb ft).
    CAUTION: Refer to Fastener Caution .
