Timing Belt Idler Pulley Installation - Lower

WARNING: This page is about a different variant/trim than selected.
  1. Install the timing belt idler pulley (1).

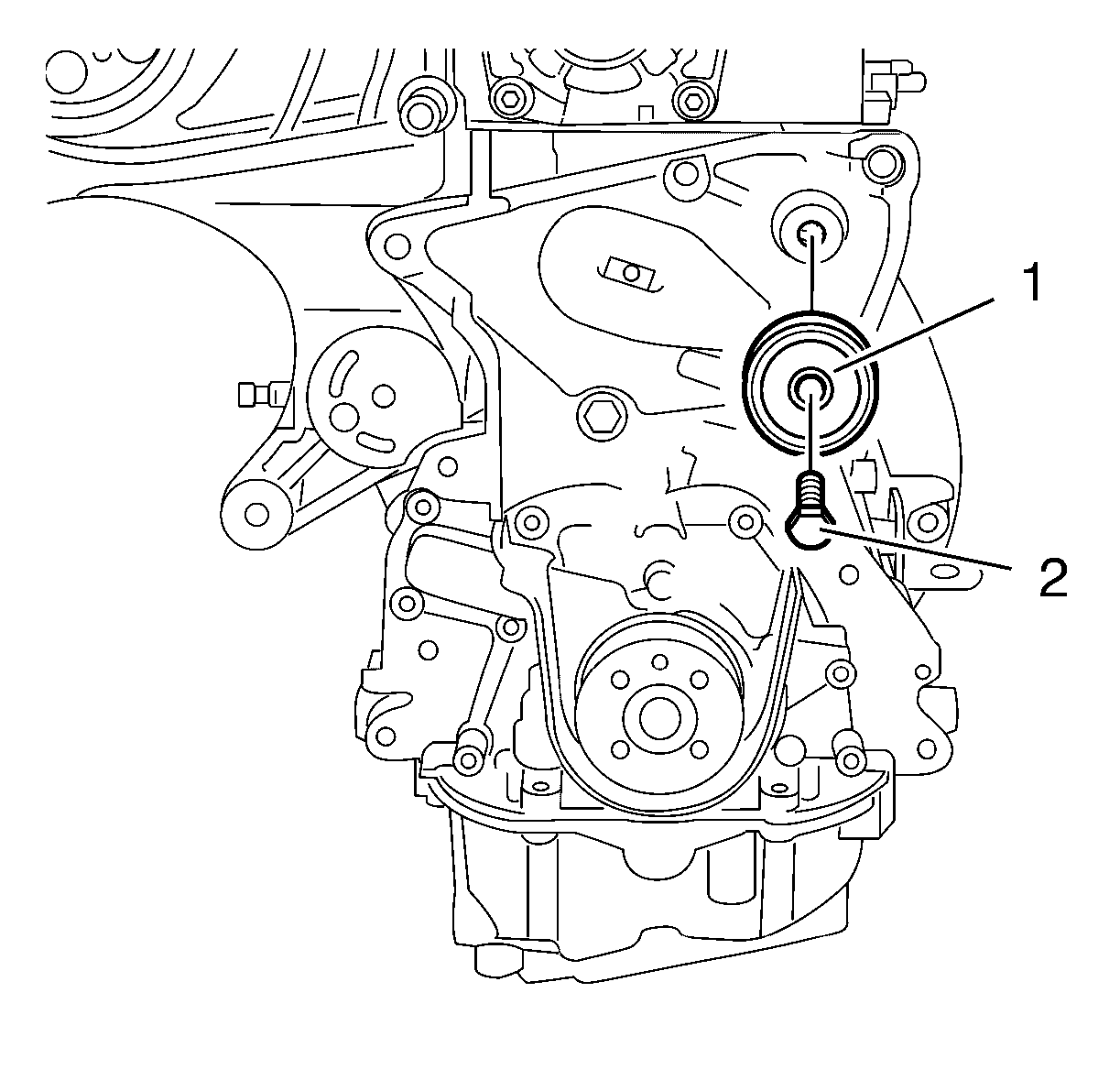

    Fig 1: Timing Belt Idler Pulley Bolt
    GM2026614Courtesy of GENERAL MOTORS COMPANY
  2. Install the timing belt idler pulley bolt (2) and tighten to 50 N.m (37 lb ft).
    CAUTION: Refer to Fastener Caution .
