Timing Belt Front Cover Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the timing belt front cover (3).

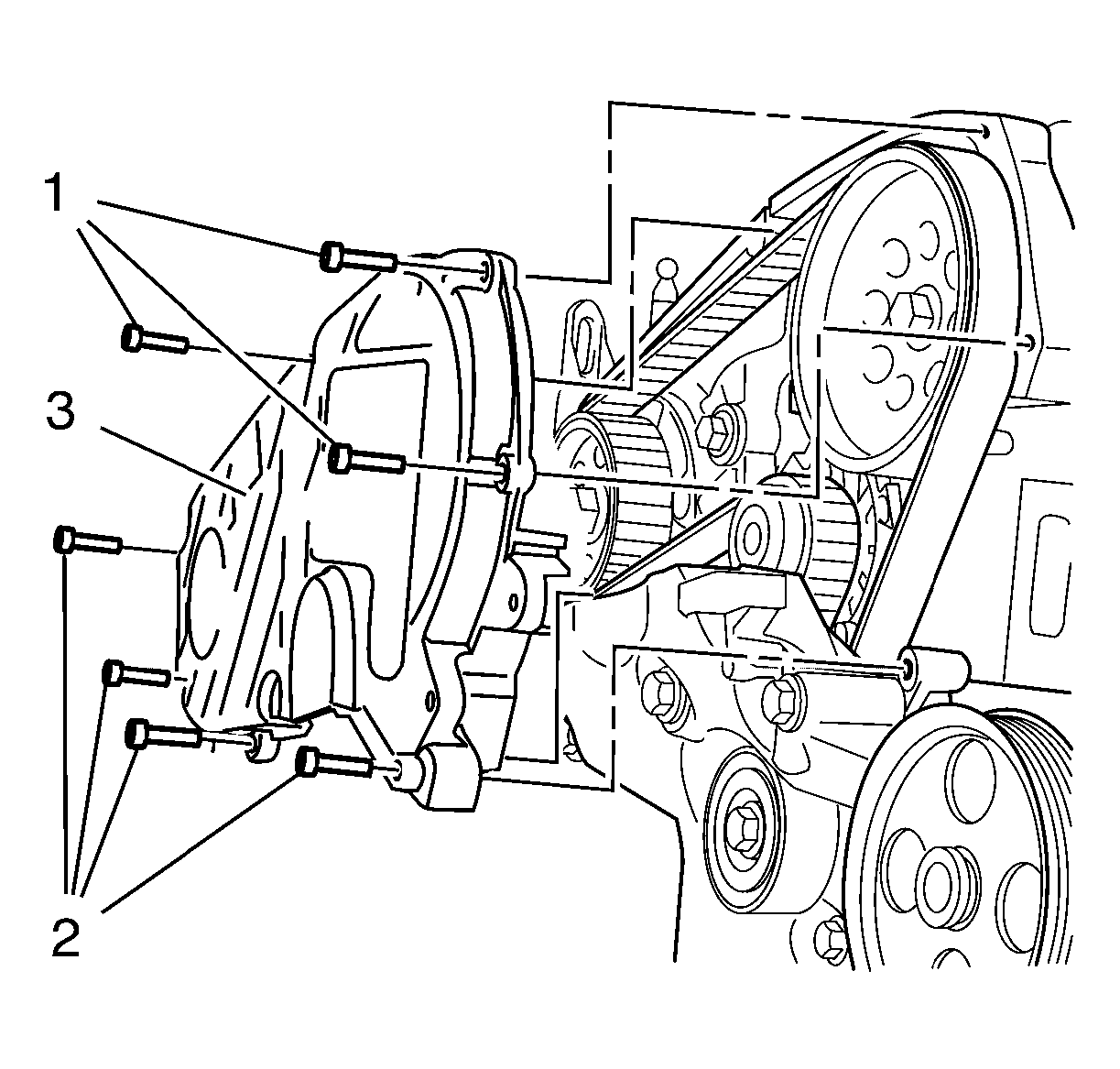

    Fig 1: Timing Belt Front Cover And Bolts
    GM2026564Courtesy of GENERAL MOTORS COMPANY
  2. Install the 7 timing belt front cover bolts (1, 2) and tighten to 9 N.m (80 lb in).
    CAUTION: Refer to Fastener Caution .
