Piston and Connecting Rod Disassemble

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble the piston rings from the piston (2). Use a suitable tool to expand the rings. The piston rings must not be reused.

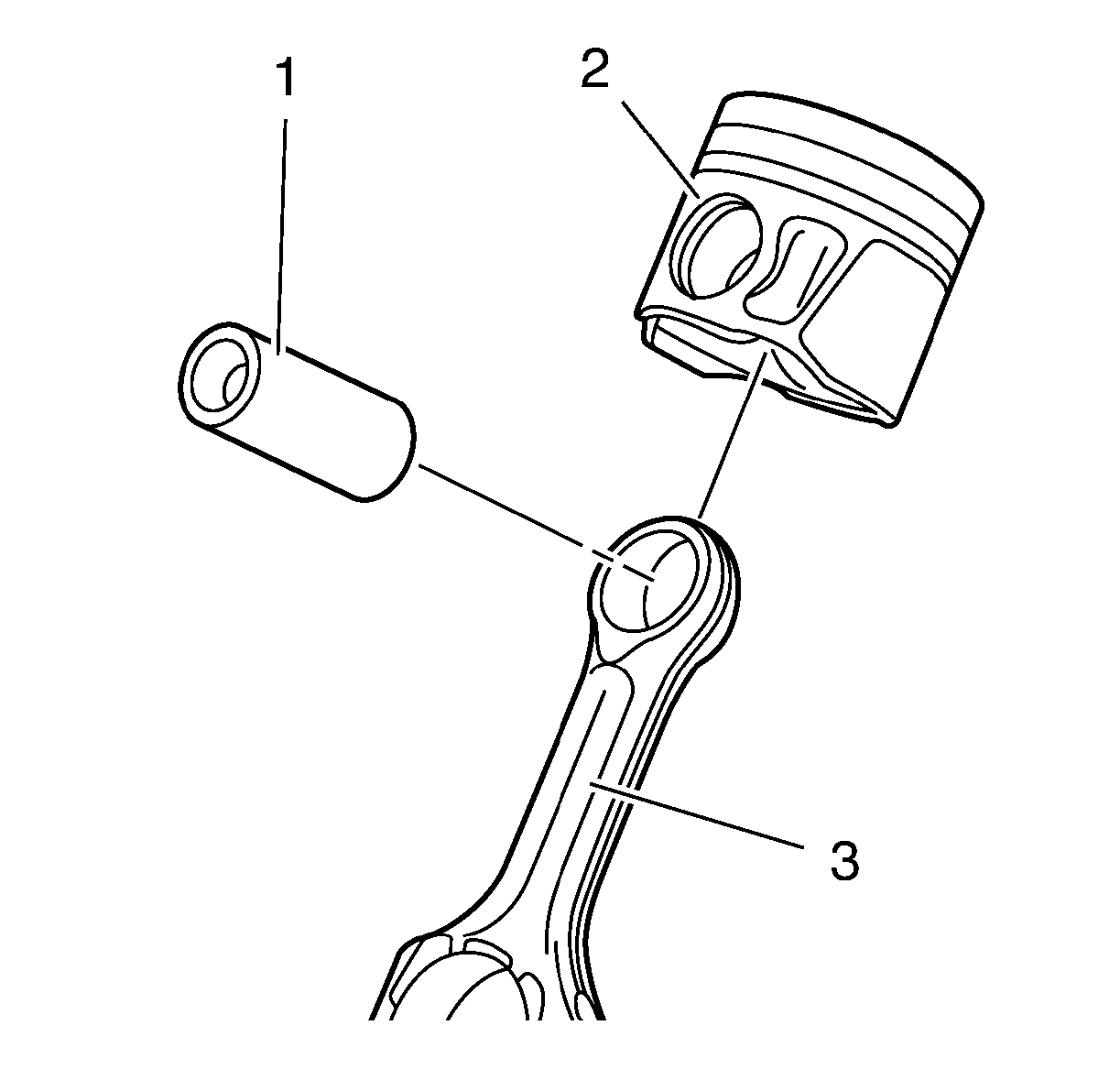

    Fig 1: Removing Piston Pin
    GM2026780Courtesy of GENERAL MOTORS COMPANY
    WARNING: Handle the piston carefully. Worn piston rings are sharp and may cause bodily injury.
  2. Remove the piston pin retainers using a suitable tool.
    NOTE: Two retainers hold the piston pins in place. Ensure that the piston pin is not damaged. Do not reuse the retainers.
  3. Remove the piston pin (1).
  4. Disassemble the piston from the connecting rod (3).
