Piston Oil Nozzle Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the 4 piston oil nozzle (1).

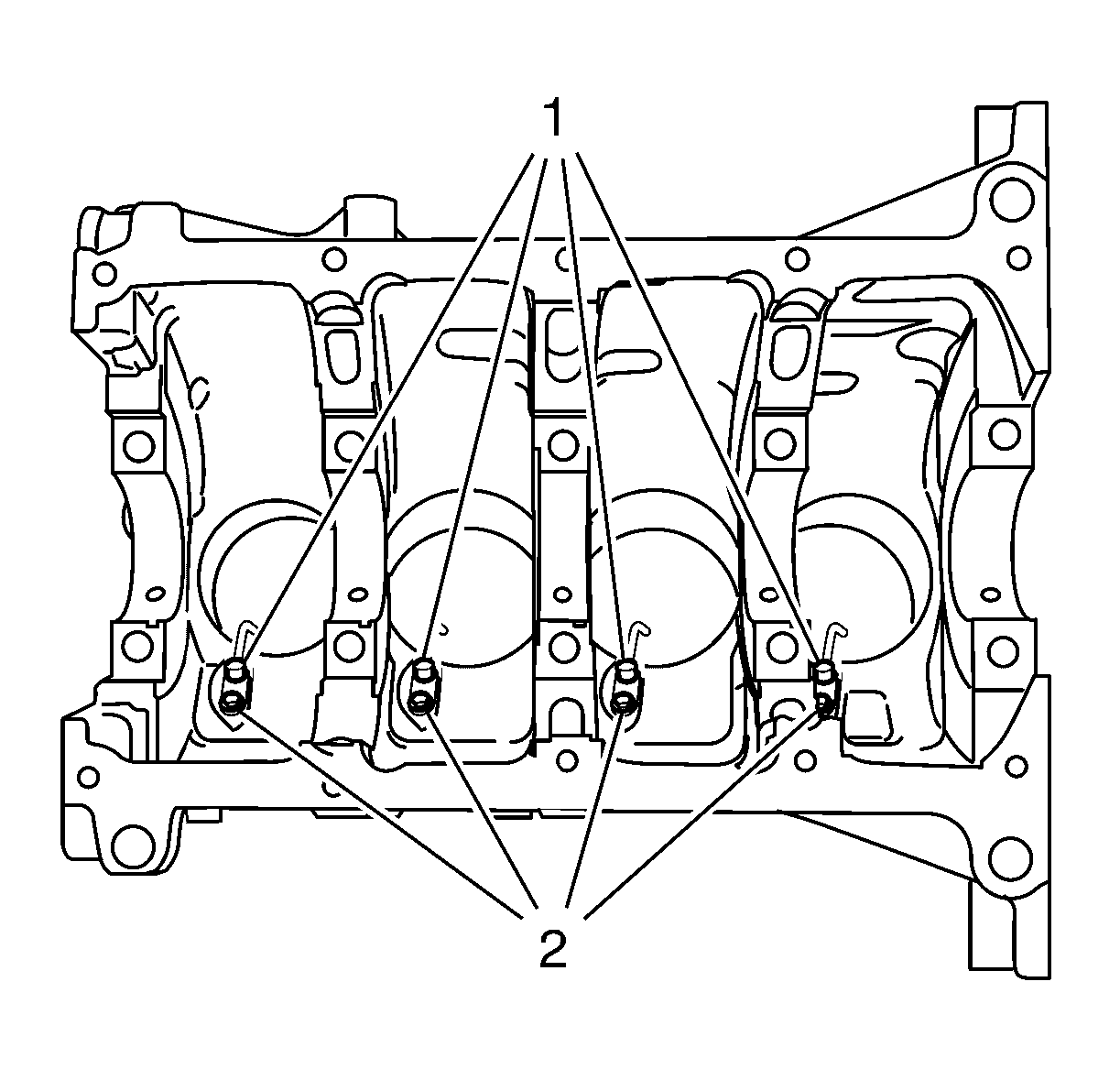

    Fig 1: Piston Oil Nozzle Bolts
    GM2026739Courtesy of GENERAL MOTORS COMPANY
  2. Install the 4 piston oil nozzle bolts (2).
  3. Tighten the 4 piston oil nozzle bolts (2) to 9 N.m (80 lb in).
    CAUTION: Refer to Fastener Caution .
