Oil Pan Disassemble

WARNING: This page is about a different variant/trim than selected.
  1. Remove the oil level sensor wiring harness plug holding clip (1).

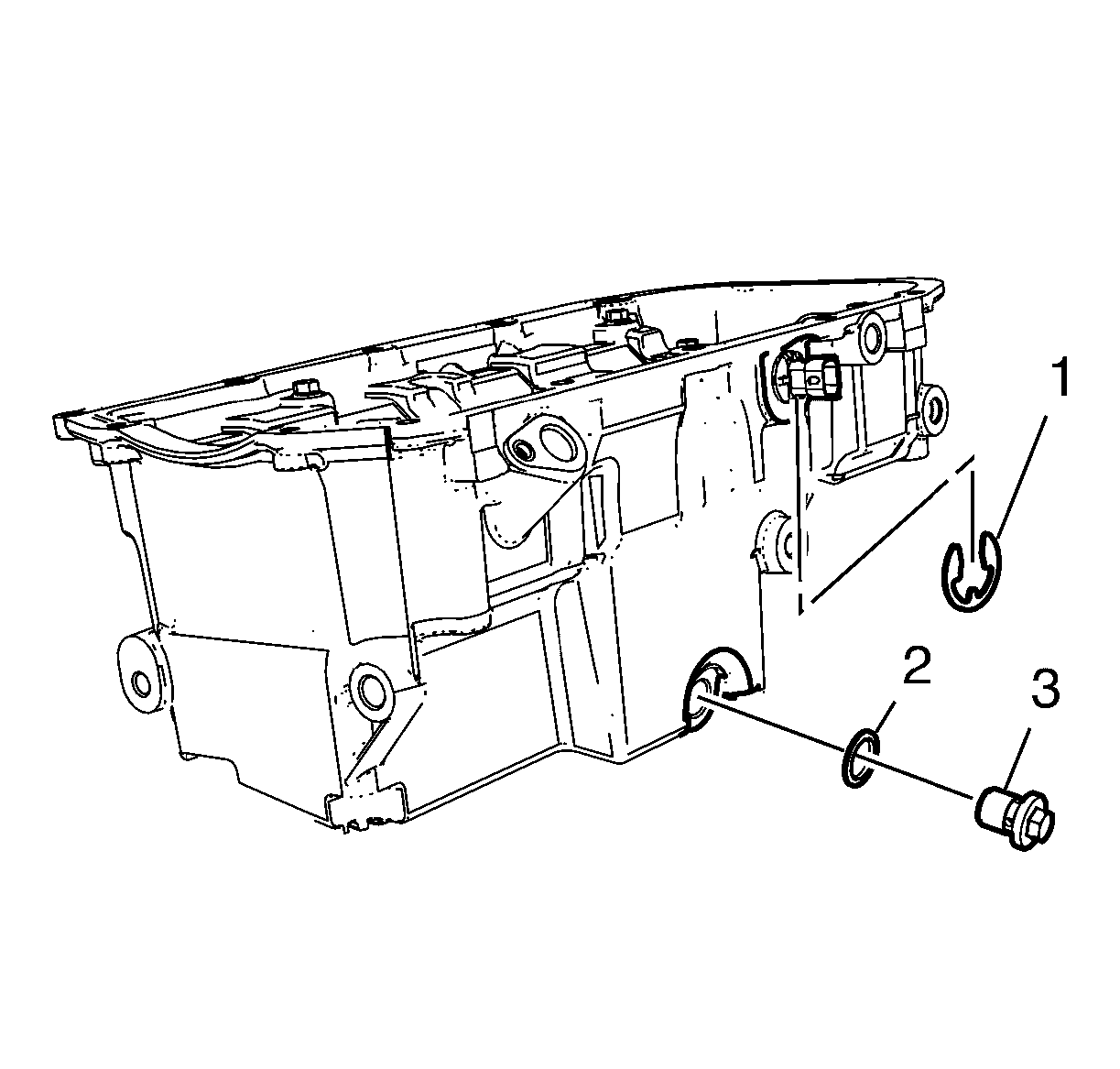

    Fig 1: Oil Drain Bolt And Oil Drain Bolt Seal Ring
    GM2190638Courtesy of GENERAL MOTORS COMPANY
  2. Remove the oil drain bolt (3) and the oil drain bolt seal ring (2).
  3. Remove the 4 oil pan baffle bolts (1).

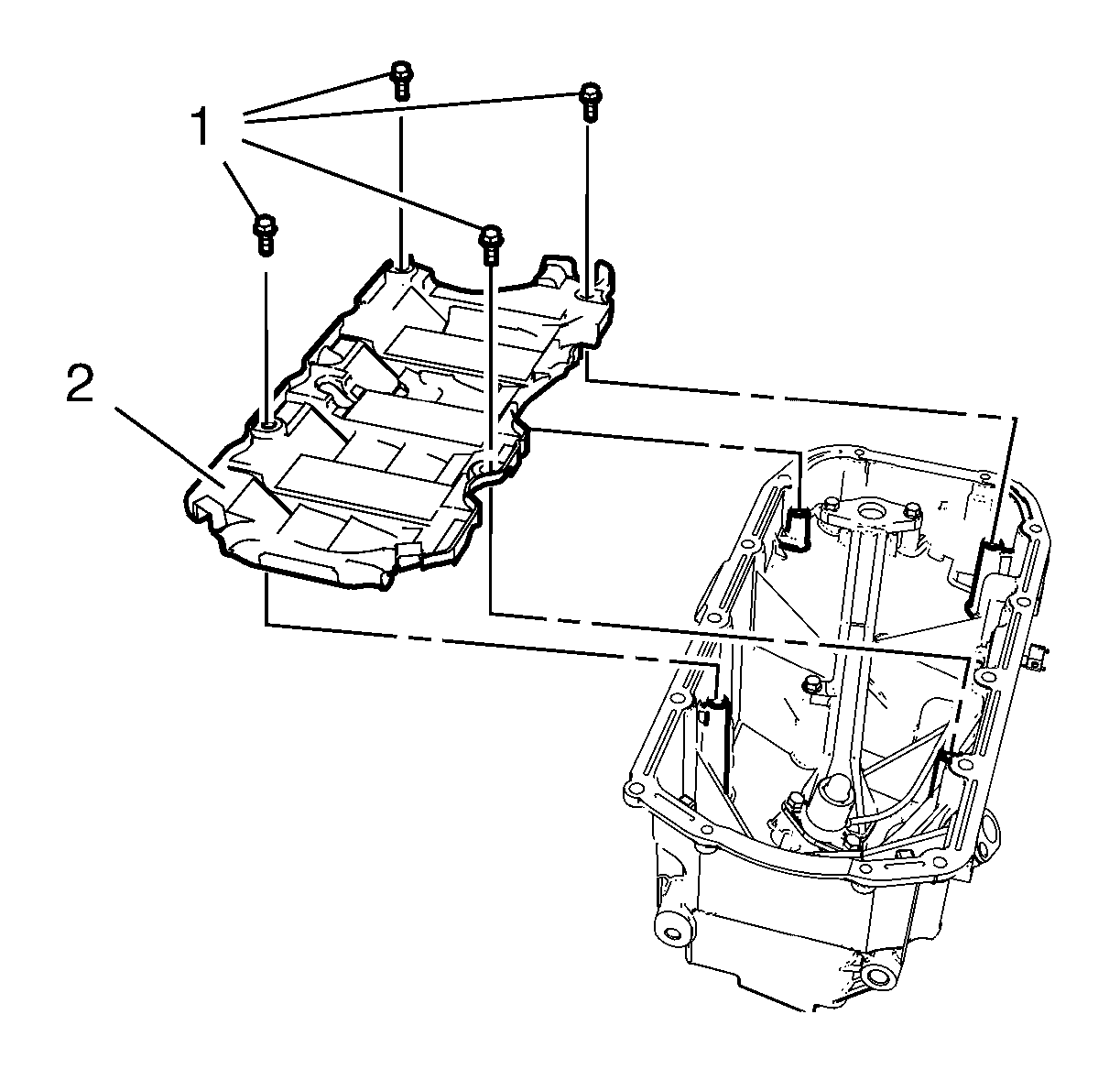

    Fig 2: Oil Pan Baffle And Bolts
    GM2190641Courtesy of GENERAL MOTORS COMPANY
  4. Remove the oil pan baffle (2).
  5. Remove the 2 oil level sensor bolts (1).

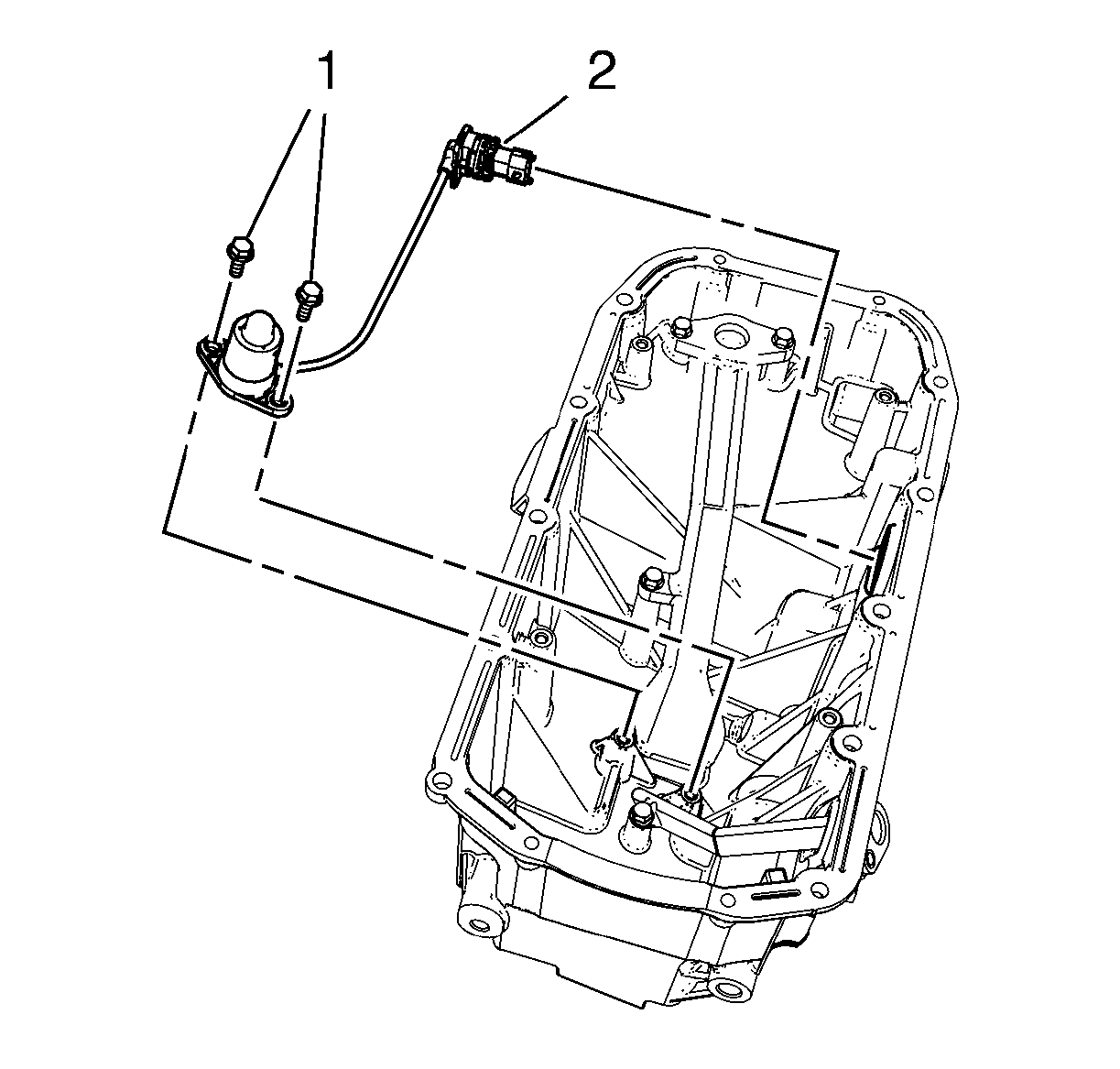

    Fig 3: Oil Level Sensor And Bolts
    GM2190640Courtesy of GENERAL MOTORS COMPANY
  6. Remove the oil level sensor (2).
  7. Remove the 3 oil suction pipe bolts (1).

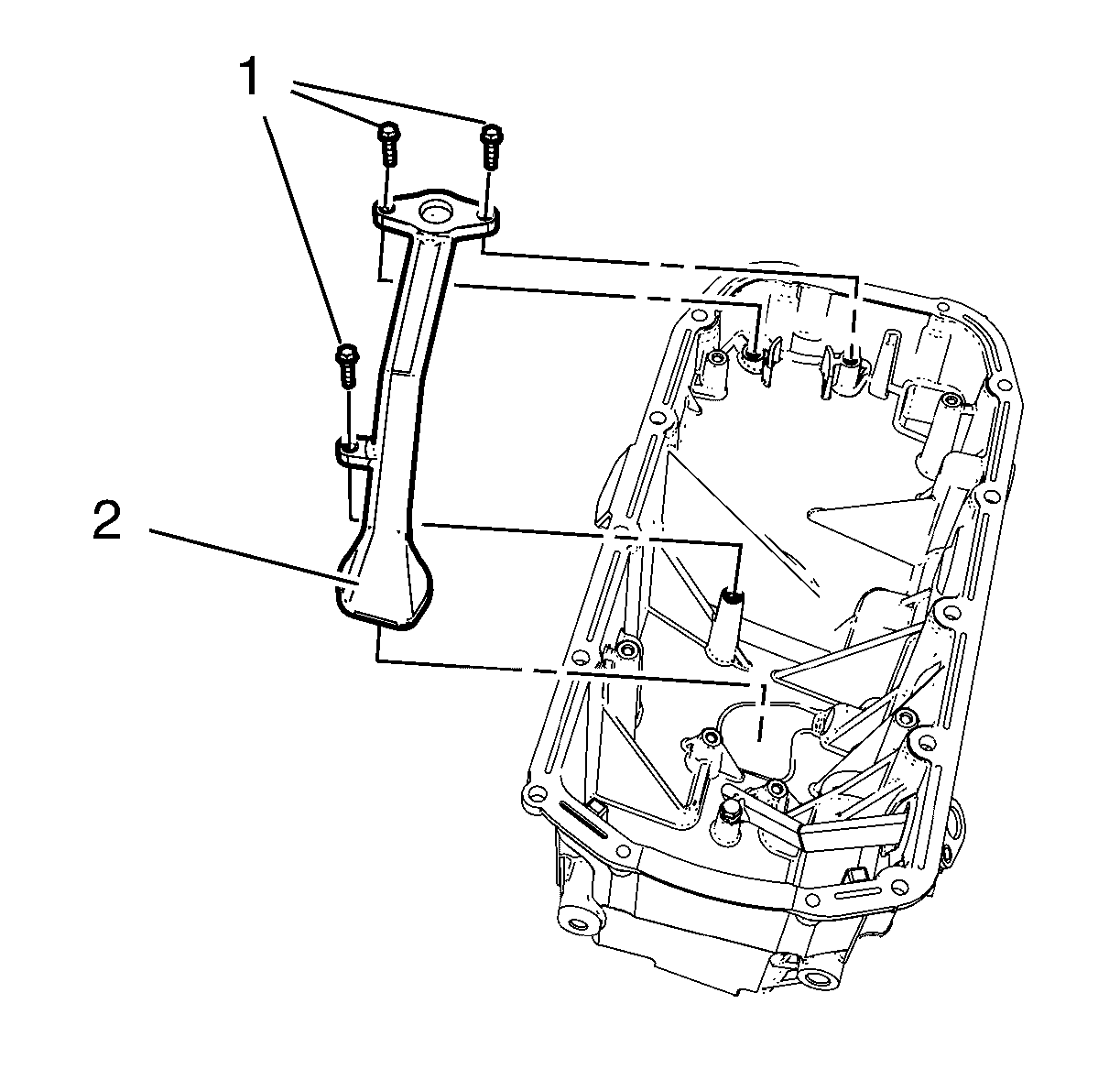

    Fig 4: Oil Suction Pipe And Bolts
    GM2190642Courtesy of GENERAL MOTORS COMPANY
  8. Remove the oil suction pipe (2).
  9. Remove the positive crankcase ventilation tube bolt (1).

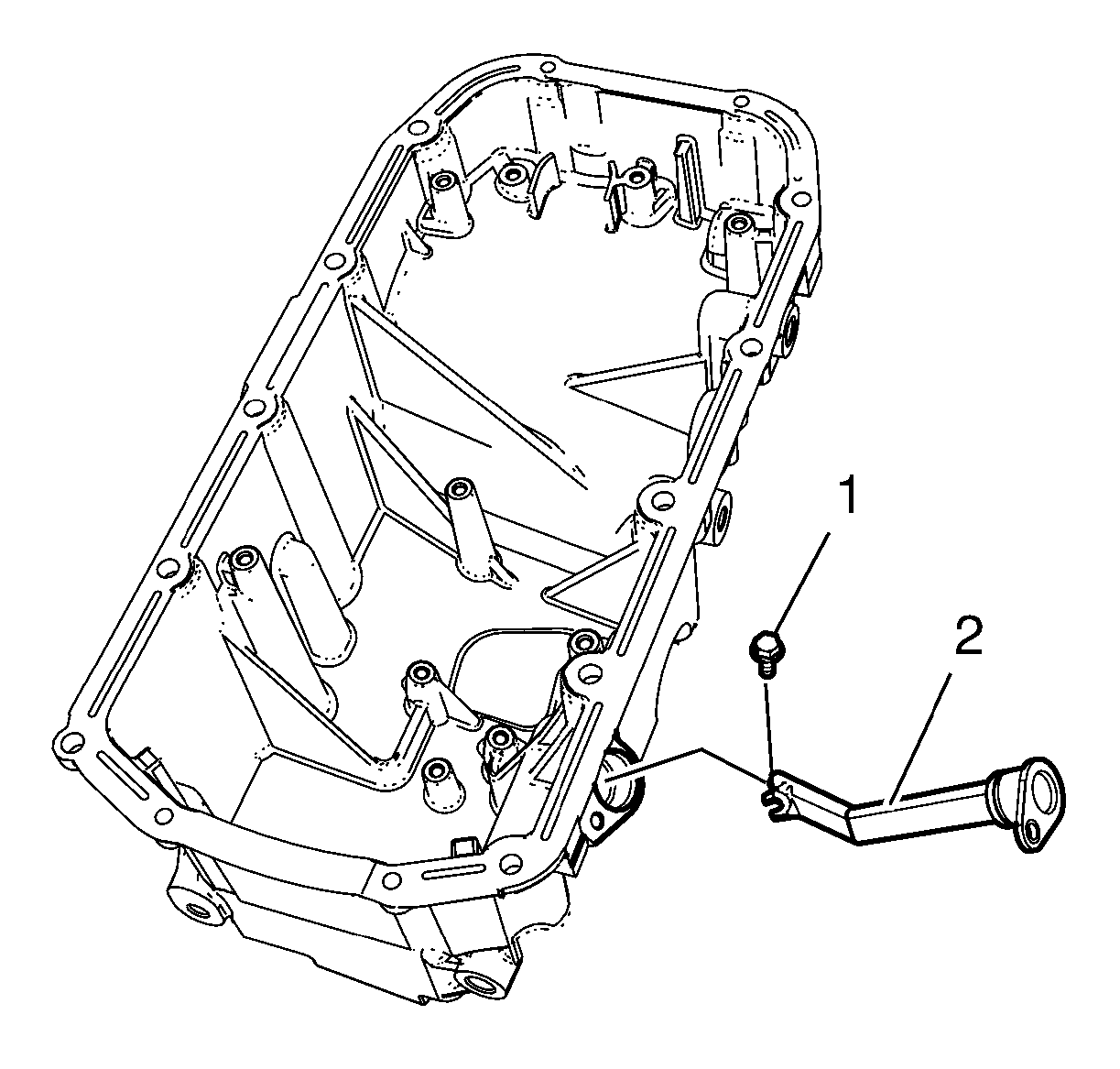

    Fig 5: Positive Crankcase Ventilation Tube And Bolt
    GM2190643Courtesy of GENERAL MOTORS COMPANY
  10. Remove the positive crankcase ventilation tube (2).
