Oil Level Indicator and Tube Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil level indicator tube (2).

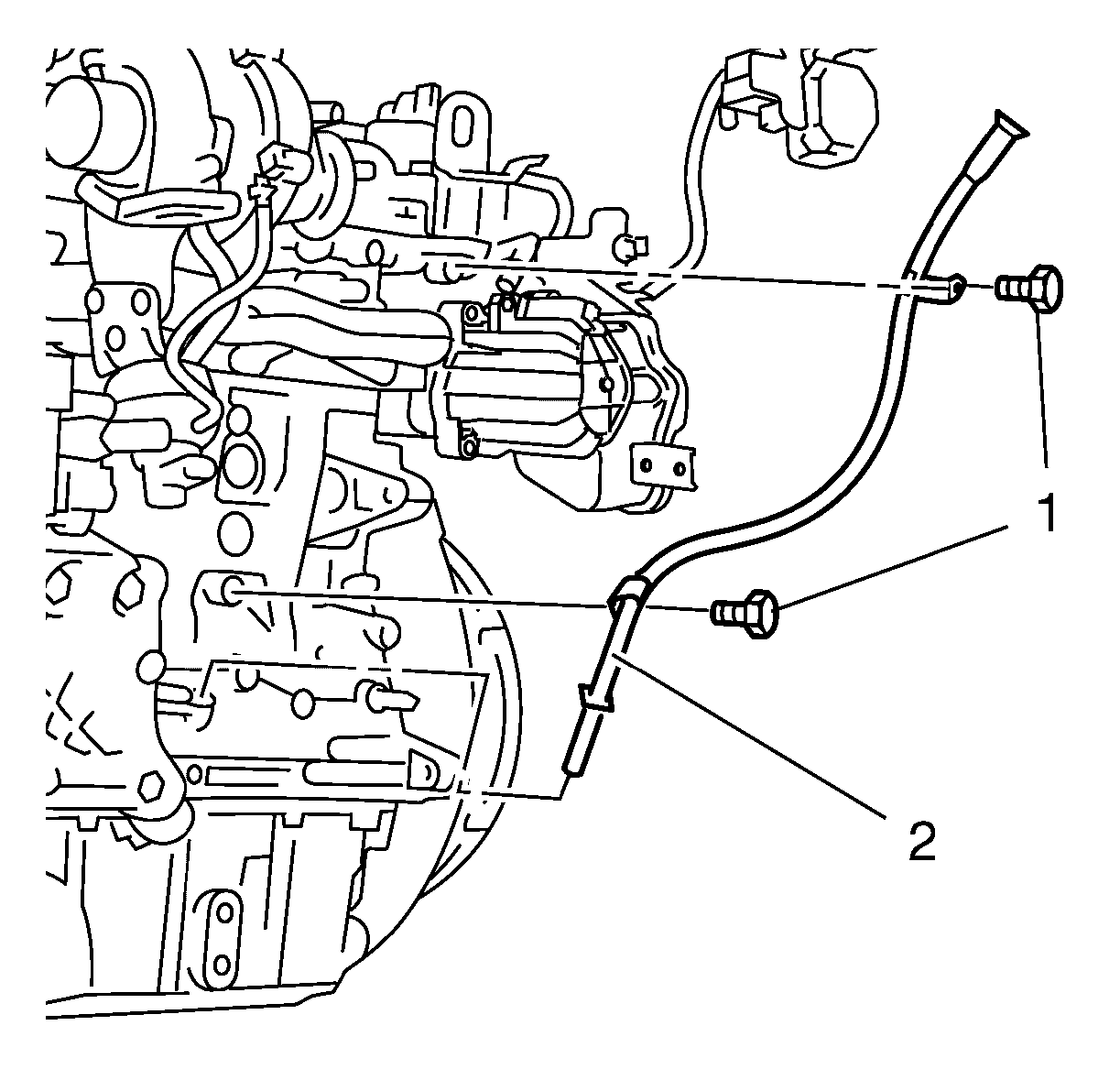

    Fig 1: Oil Level Indicator Tube Bolts
    GM2026557Courtesy of GENERAL MOTORS COMPANY
  2. Install the oil level indicator tube gasket.
  3. Install the oil level indicator tube bolts (1) and tighten :
    • M6 to 9 N.m (80 lb in)
    • M8 to 25 N.m (18 lb ft)
  4. Install the oil dipstick.
