Intake Manifold Disassemble

WARNING: This page is about a different variant/trim than selected.
  1. Remove the 4 throttle body bolts (6).

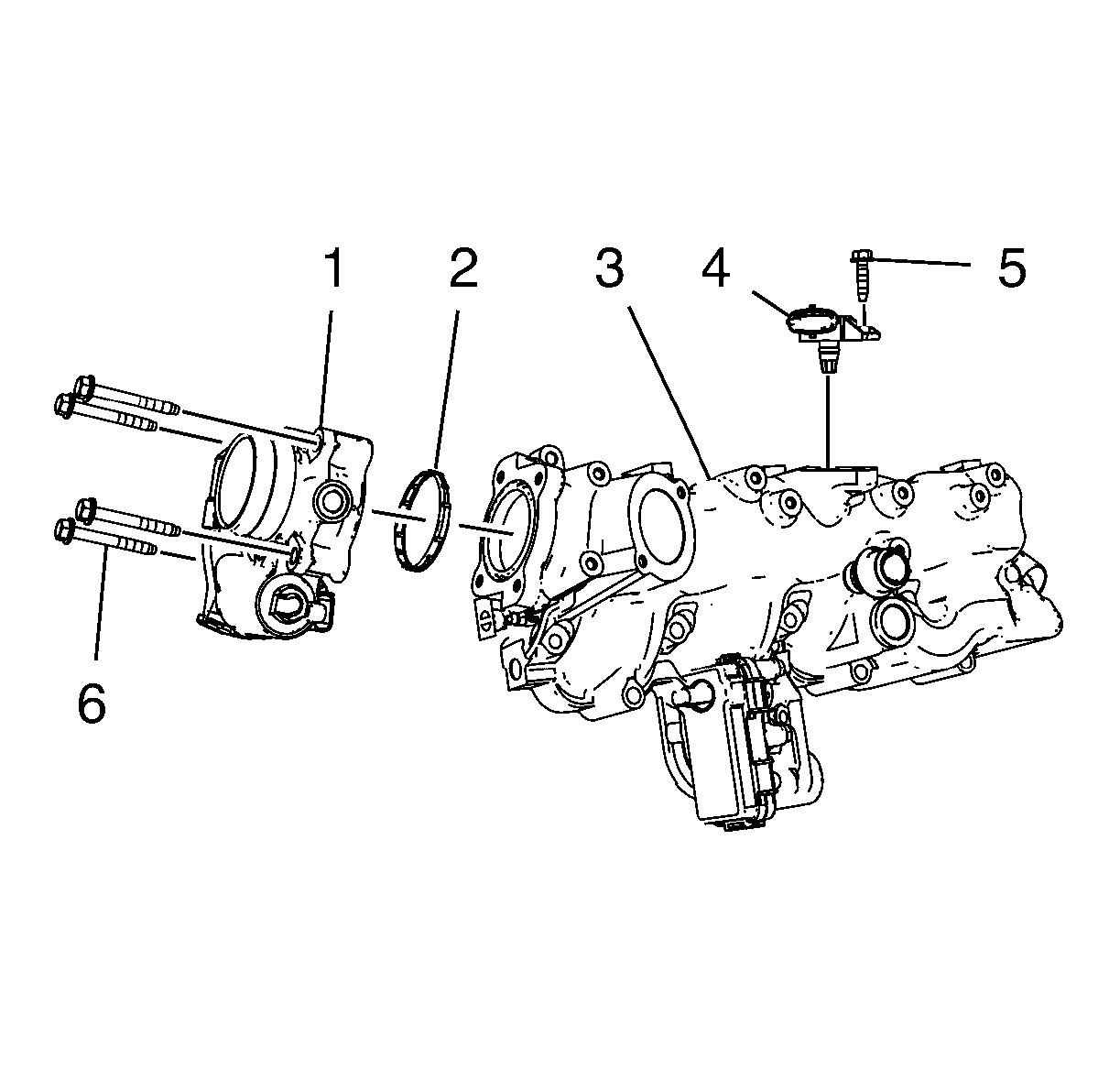

    Fig 1: Throttle Body And Bolts
    GM3213072Courtesy of GENERAL MOTORS COMPANY
  2. Remove the throttle body (1).
  3. Remove and DISCARD the seal ring (2).
  4. Remove the manifold absolute pressure sensor bolt (5).
  5. Remove the manifold absolute pressure sensor (4) from the intake manifold (3).
  6. Remove the intake manifold actuator link retainer (3)
    Fig 2: Intake Manifold Actuator Link Retainer And Bolts
    GM3213077Courtesy of GENERAL MOTORS COMPANY
  7. Remove the 4 intake manifold actuator bolts (4).
  8. Remove the lever actuator (1) from the intake manifold runner link (2) while removing the intake manifold actuator (6) from the intake manifold (5).
