Heated Oxygen Sensor Installation

WARNING: This page is about a different variant/trim than selected.

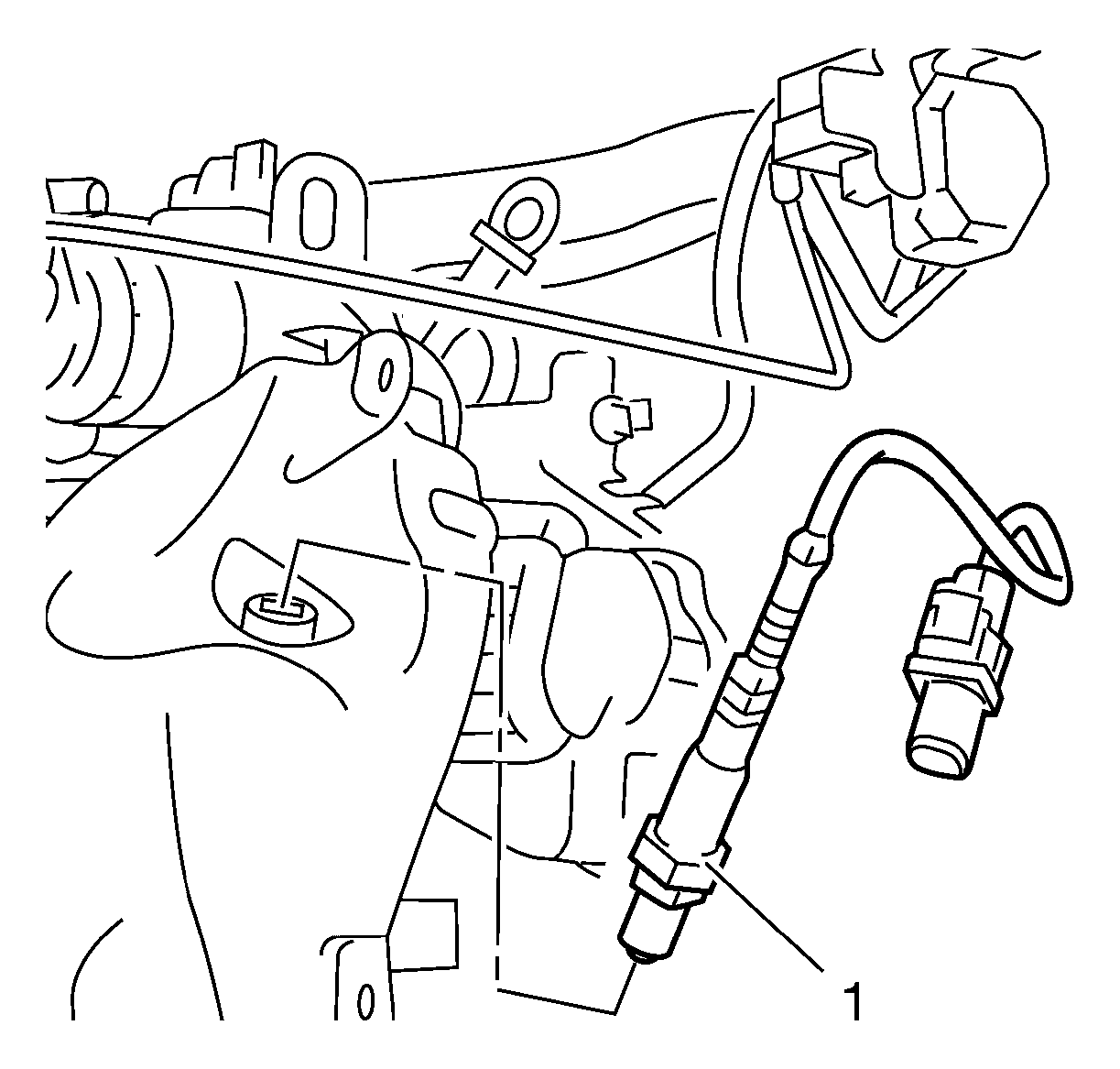

Fig 1: Heated Oxygen Sensor
GM2026555Courtesy of GENERAL MOTORS COMPANY
CAUTION: Refer to Fastener Caution .
NOTE:
  • Clean thread before install the heated oxygen sensor.
  • Use assembly paste for install the heated oxygen sensor.

Install the heated oxygen sensor (1) and tighten to 45 N.m (33 lb ft).
