Generator Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the generator (1).

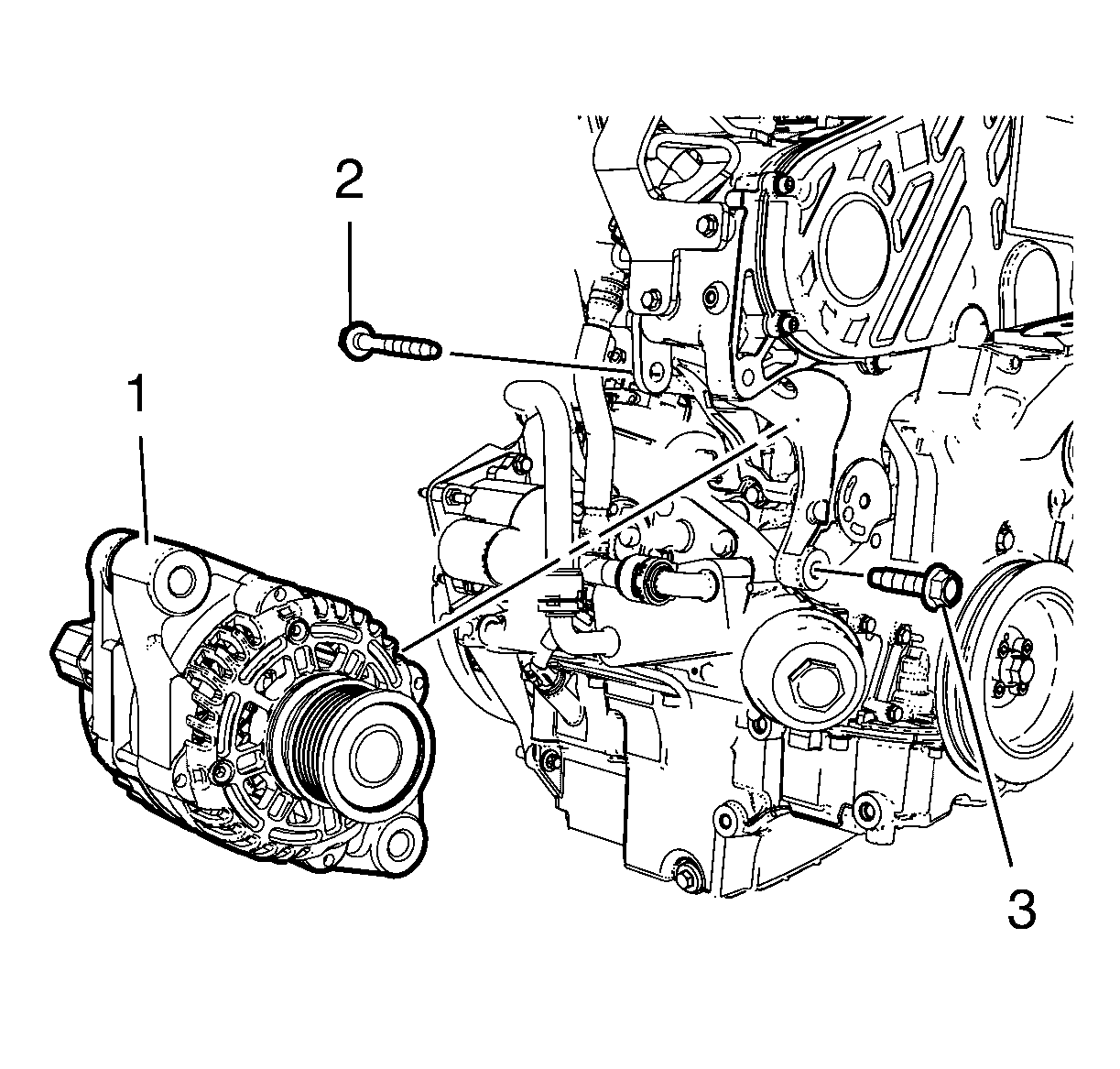

    Fig 1: Generator Bolt
    GM2189653Courtesy of GENERAL MOTORS COMPANY
  2. Install the generator bolt (2) and tighten to 60 N.m (44 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the generator bolt (3) and tighten to 60 N.m (44 lb ft).
