Fuel Rail Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the fuel rail (1).

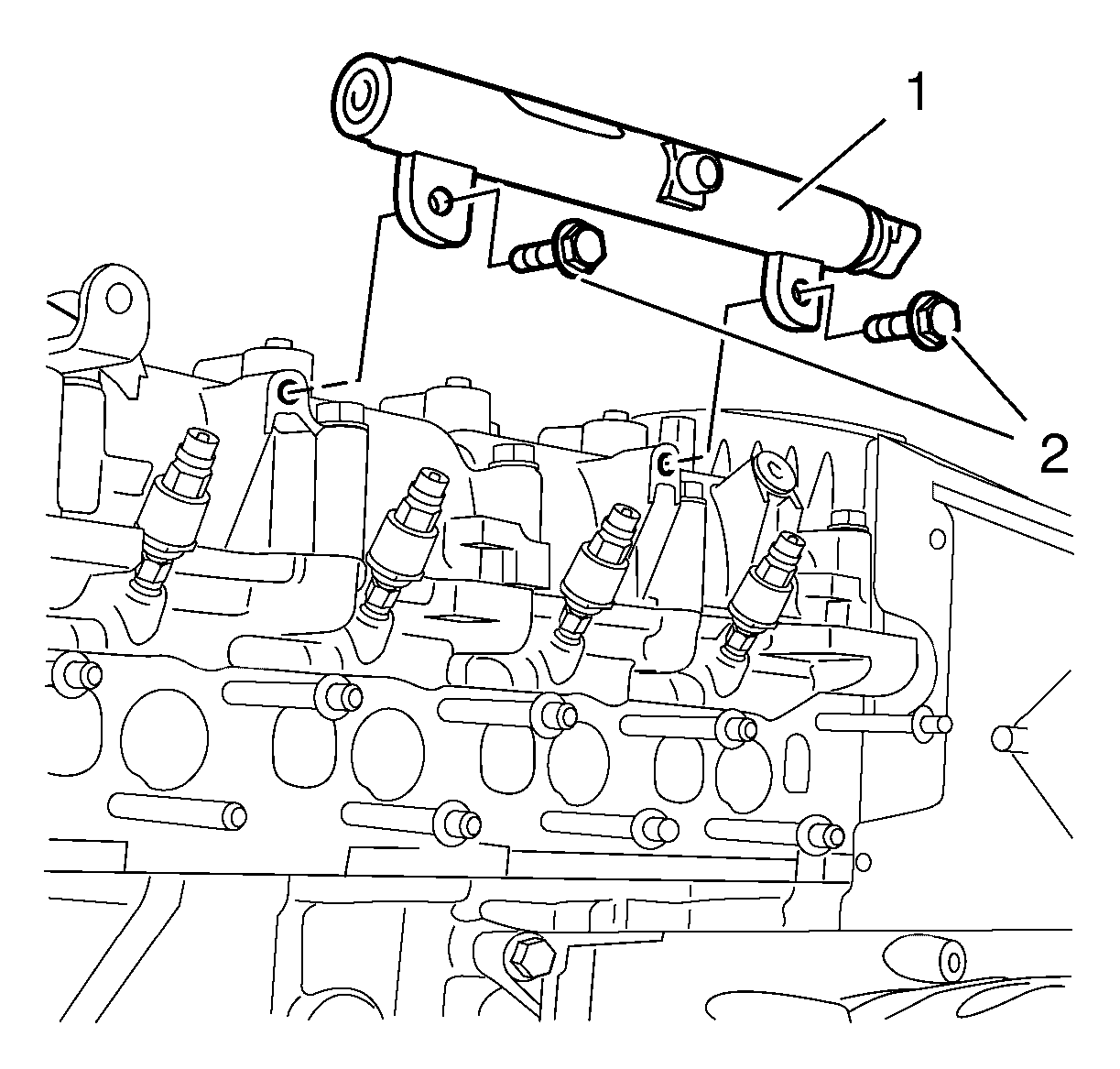

    Fig 1: Fuel Rail And Bolts
    GM2026633Courtesy of GENERAL MOTORS COMPANY
  2. Install the fuel rail bolts (2) and tighten to 25 N.m (18 lb ft).
    CAUTION: Refer to Fastener Caution .
