Fuel Injection Pump Bracket Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the fuel injection pump bracket (2).

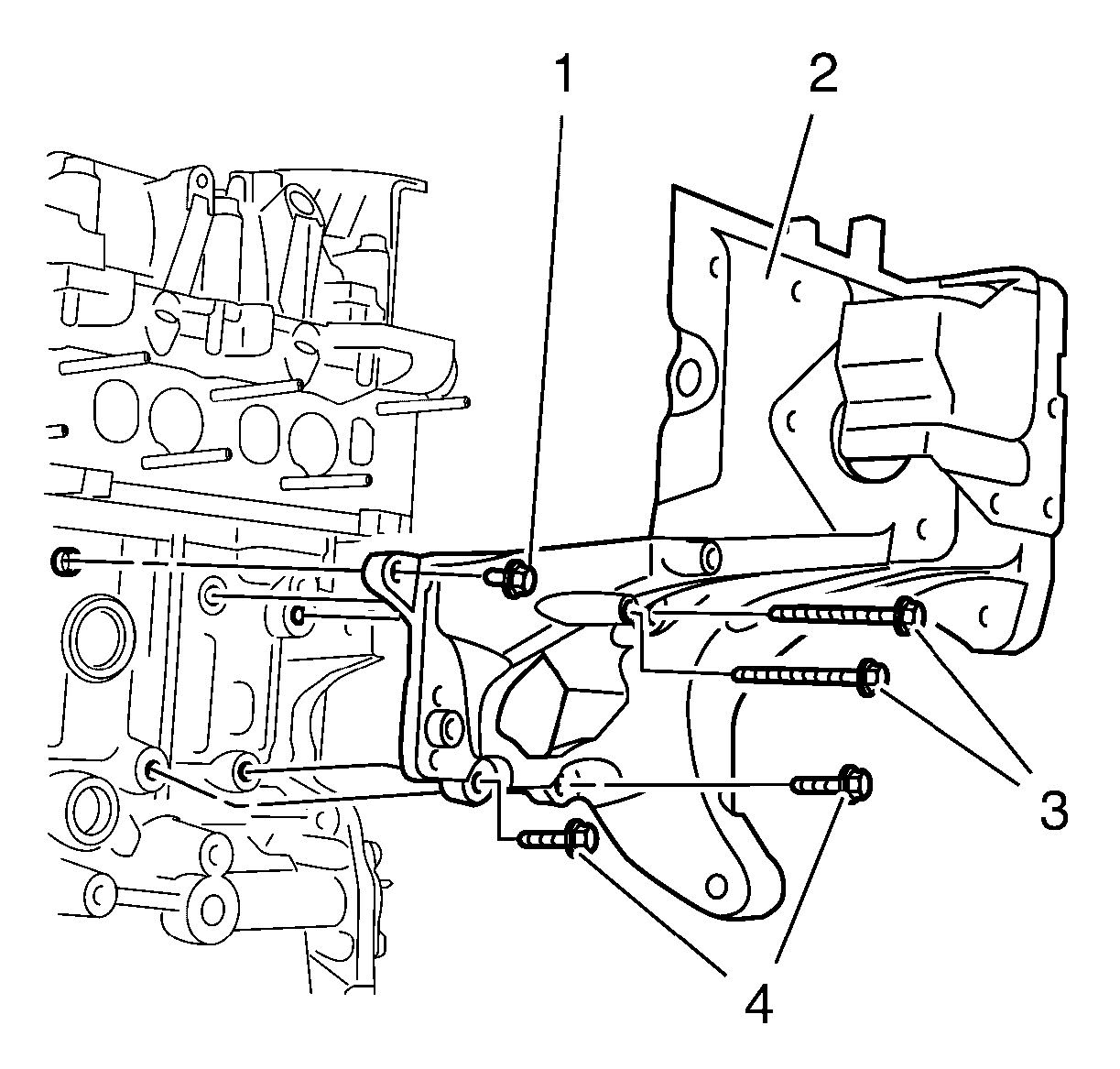

    Fig 1: Fuel Injection Pump Bracket And Bolts
    GM2026643Courtesy of GENERAL MOTORS COMPANY
  2. Install the 6 fuel injection pump bracket bolts (1, 3, 4) and tighten to 25 N.m (18 lb ft).
    CAUTION: Refer to Fastener Caution .
