Fuel Injection Fuel Return Pipe Removal

WARNING: This page is about a different variant/trim than selected.

Remove the fuel return pipe (1) from the fuel dumper (2).

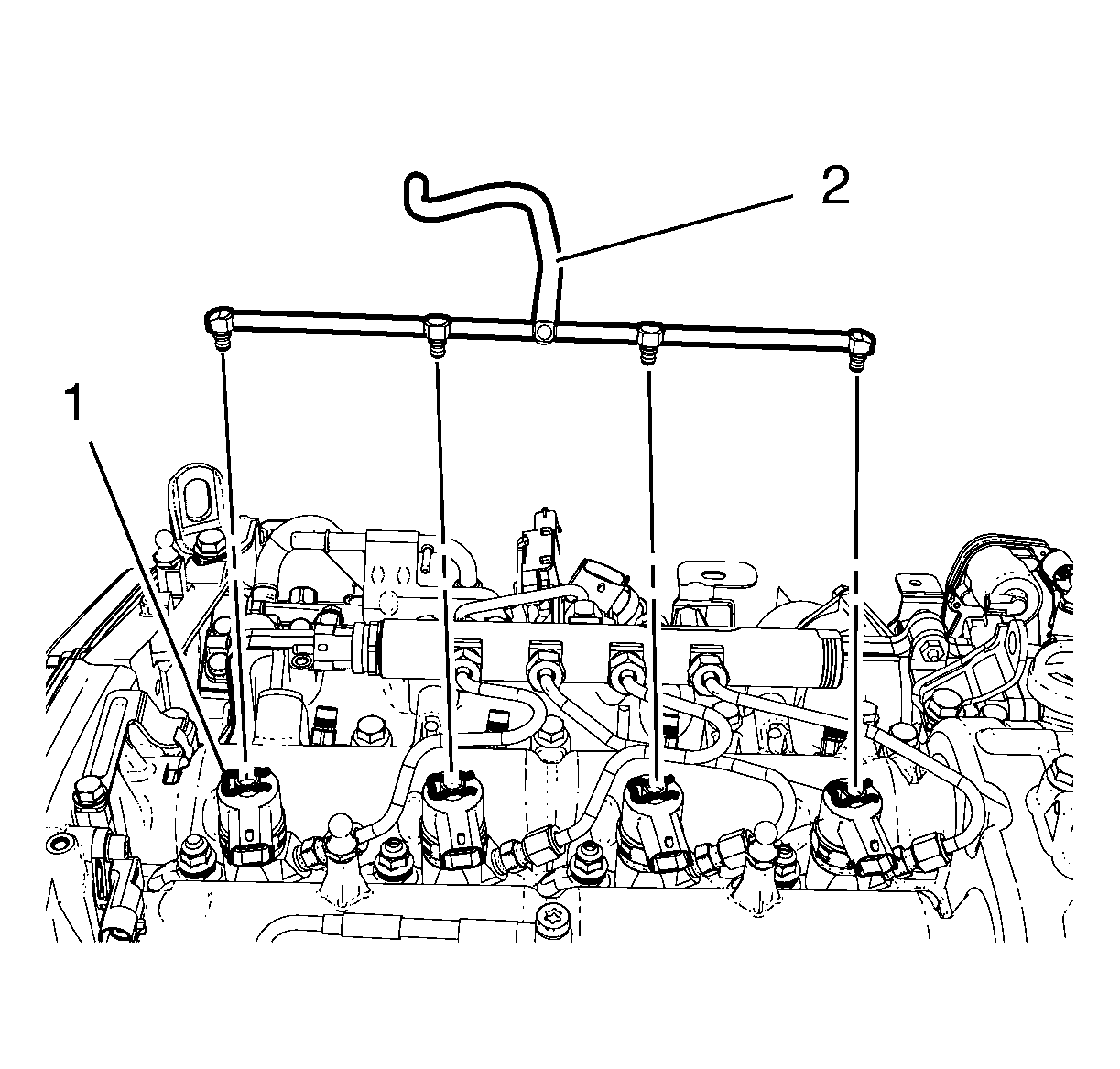

Fig 1: Fuel Return Pipe And Fuel Dumper
Courtesy of GENERAL MOTORS COMPANY
Loosen the 4 fuel injector return pipe clamps (1).

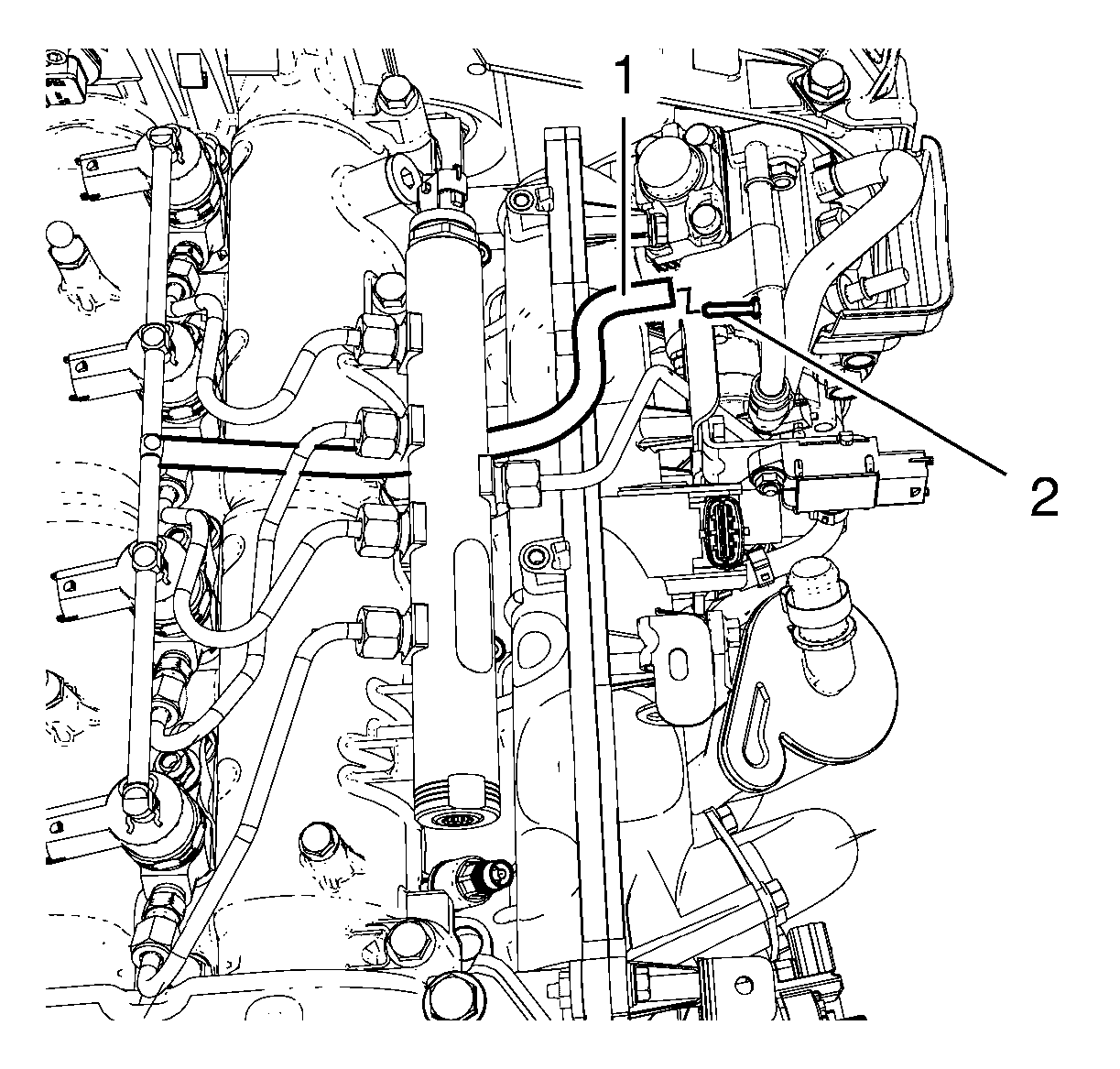

Fig 2: Fuel Injection Fuel Return Pipe
Courtesy of GENERAL MOTORS COMPANY
Remove the fuel injection fuel return pipe (2).
