Fuel Injection Fuel Feed Pipe Installation
WARNING: This page is about a different variant/trim than selected.

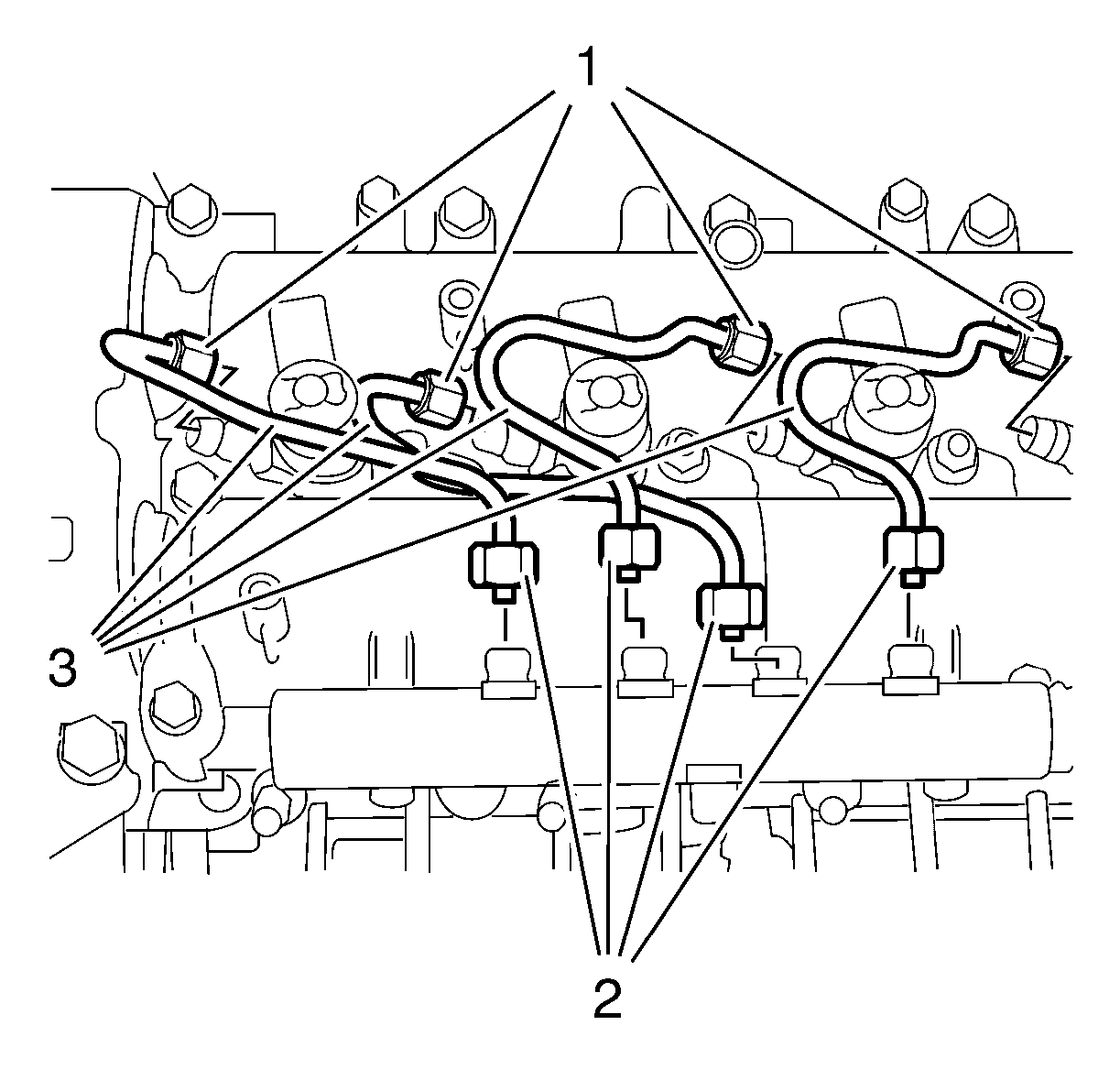

- Install the 4 fuel injector fuel feed pipe (3).
- Install the 8 fuel injector fuel feed pipe nuts (1, 2) and hand tighten.CAUTION: Refer to Fastener Caution
- Tighten the 4 fuel injector fuel feed pipe nuts (1) to 25 N.m (18 lb ft).
- Tighten the 4 fuel injector fuel feed pipe nuts (2) to 19 N.m (14 lb ft).
