Fuel Injection Feed Hose Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the fuel feed hose (2).

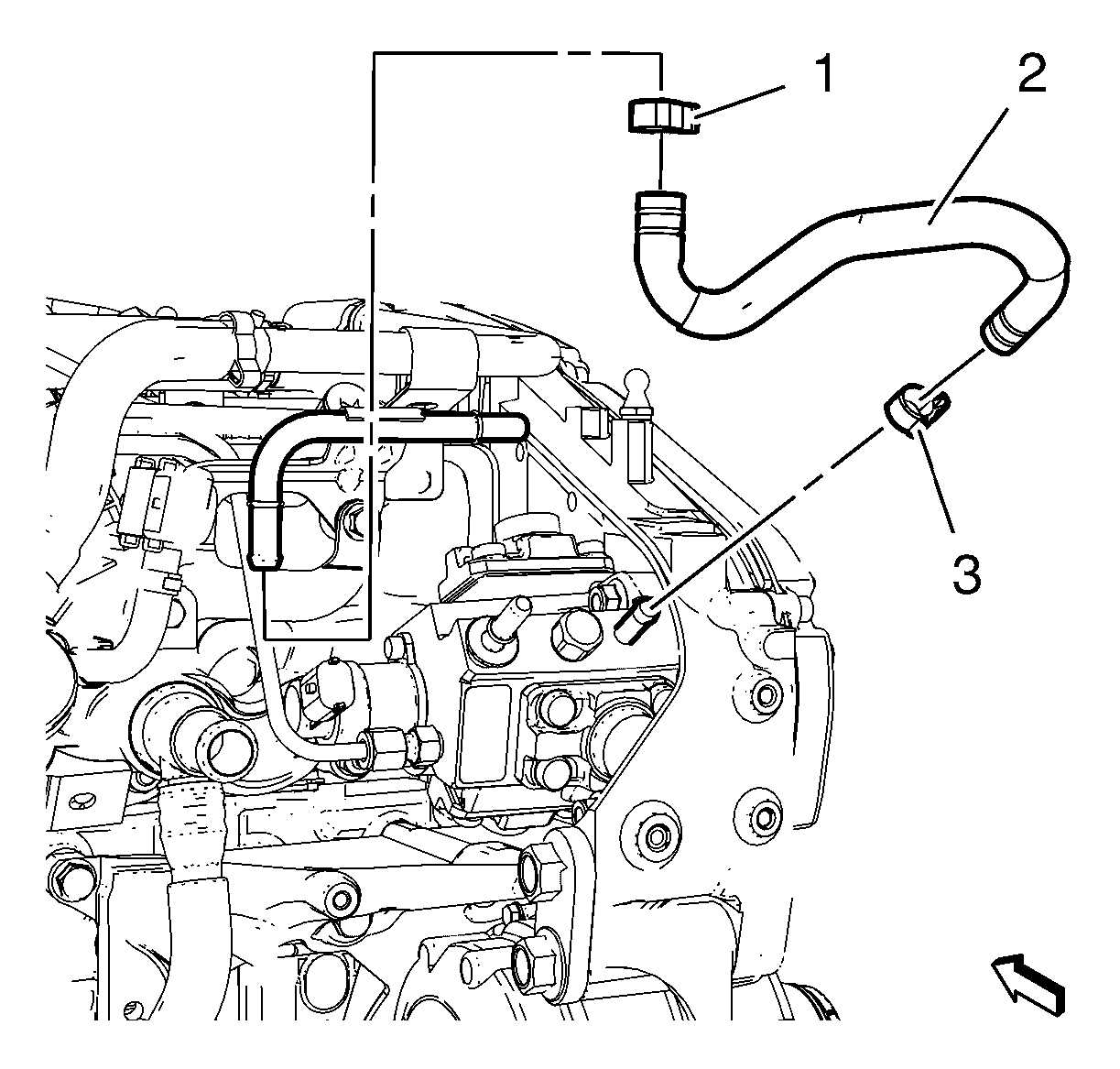

    Fig 1: Fuel Return Hose Clamps
    GM2189671Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 NEW fuel feed hose clamps (1, 3).
