Fuel Feed Pipe Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the 2 fuel feed pipe nuts (2).

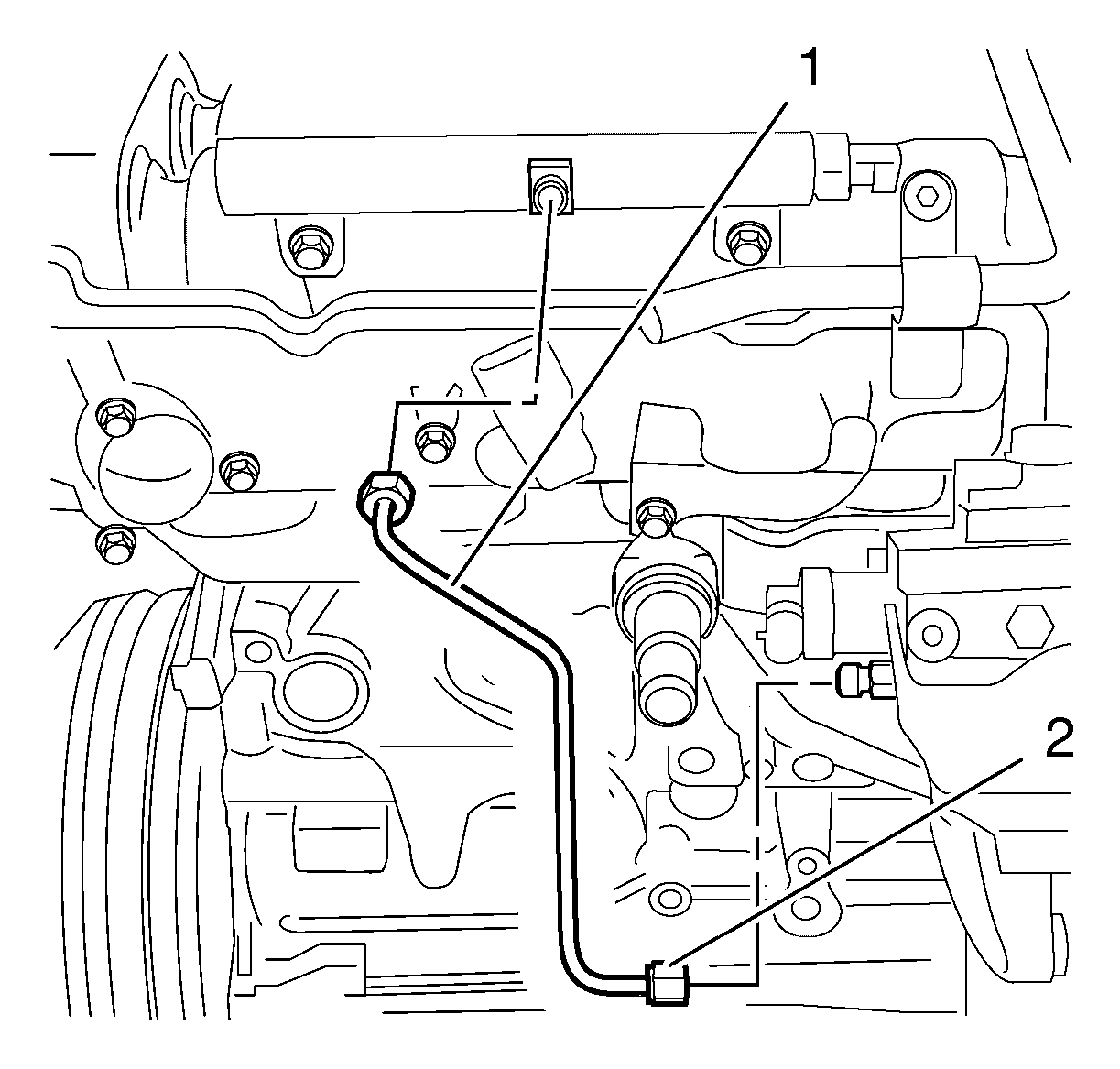

    Fig 1: Fuel Feed Pipe
    GM2026624Courtesy of GENERAL MOTORS COMPANY
  2. Remove the fuel feed pipe (1).
