Fuel Feed Pipe Installation

WARNING: This page is about a different variant/trim than selected.

Install the fuel feed pipe (2).

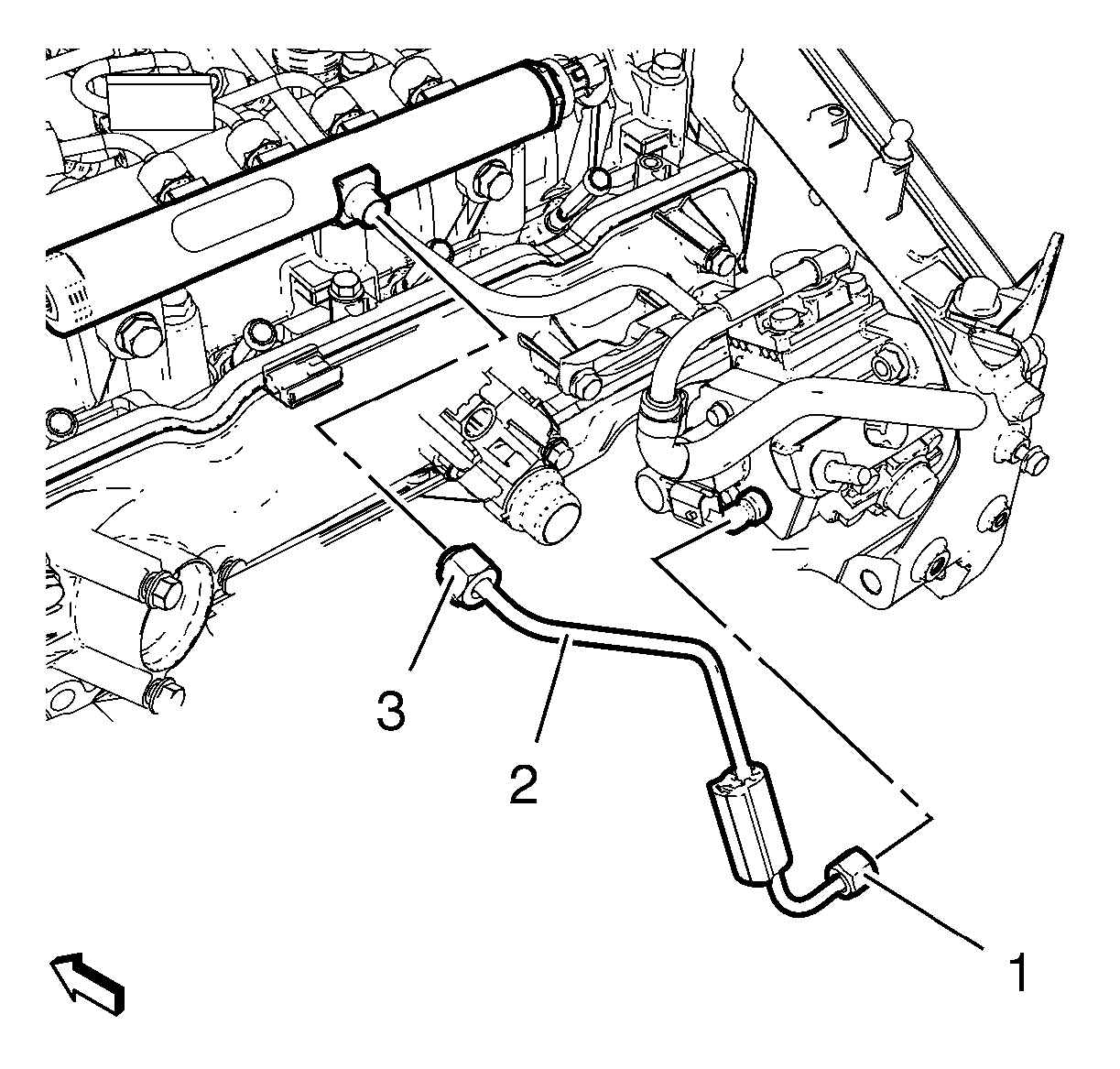

Fig 1: Fuel Feed Pipe And Nuts
Courtesy of GENERAL MOTORS COMPANY
Install the 2 fuel feed pipe nuts (1, 3) and hand tighten.
Tighten the fuel feed pipe nuts (1, 3):
CAUTION: Refer to Fastener Caution .
- Fuel feed pipe to fuel rail nut (3) tighten to 19 N.m (14 lb ft).
- Fuel feed pipe to fuel injection pump nut (1) tighten to 25 N.m (18 lb ft).
