Exhaust Gas Recirculation Valve Cooler Disassemble

WARNING: This page is about a different variant/trim than selected.
  1. Remove the vacuum hose (2) from the vacuum tank (5).

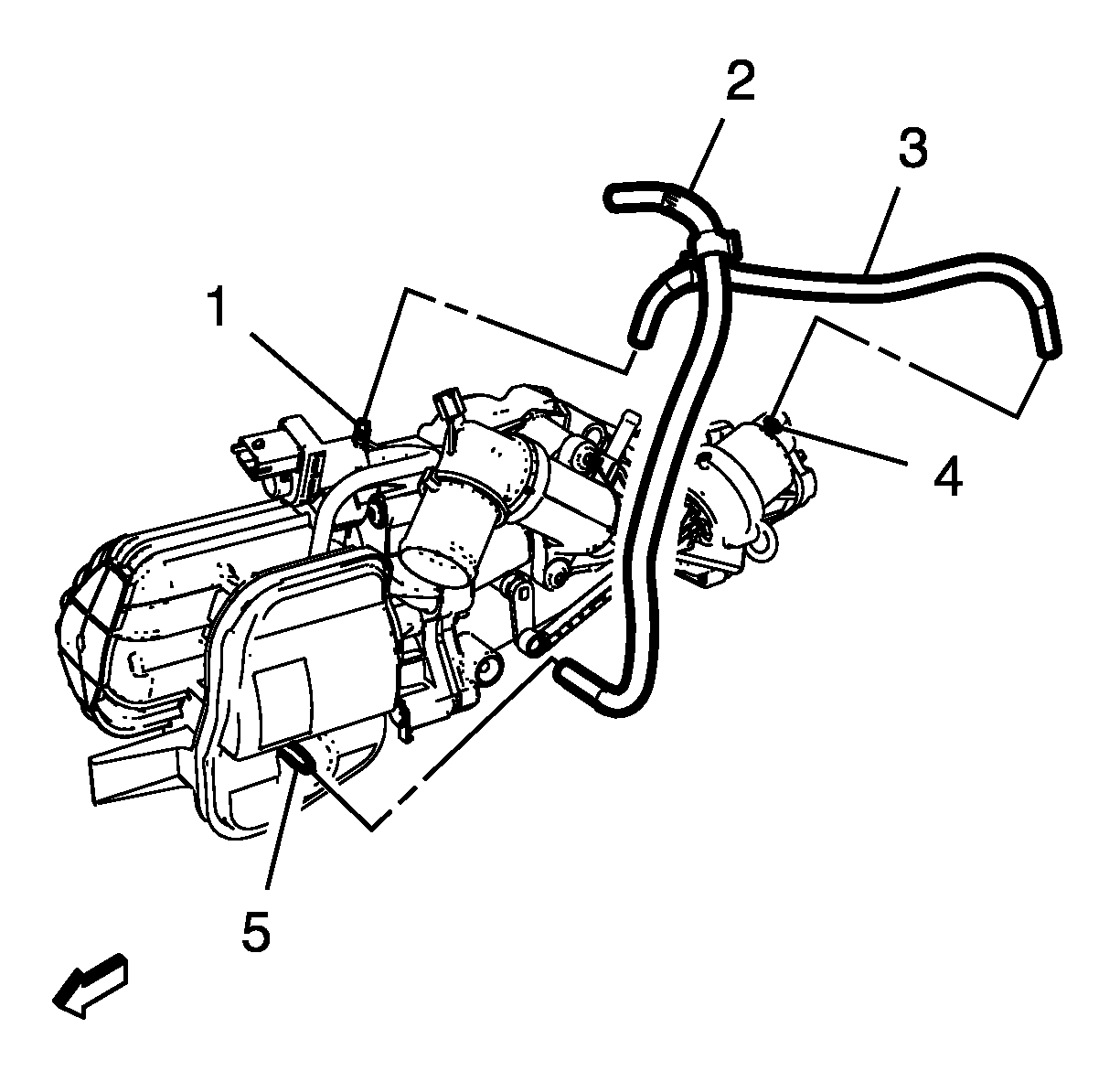

    Fig 1: Exhaust Gas Recirculation Actuator Valve And Vacuum Hose
    GM3351984Courtesy of GENERAL MOTORS COMPANY
  2. Remove the vacuum hose (3) from the exhaust gas recirculation actuator valve (1) and from the exhaust gas recirculation actuator (4).
  3. Remove the 2 exhaust gas recirculation actuator valve bolts (1).

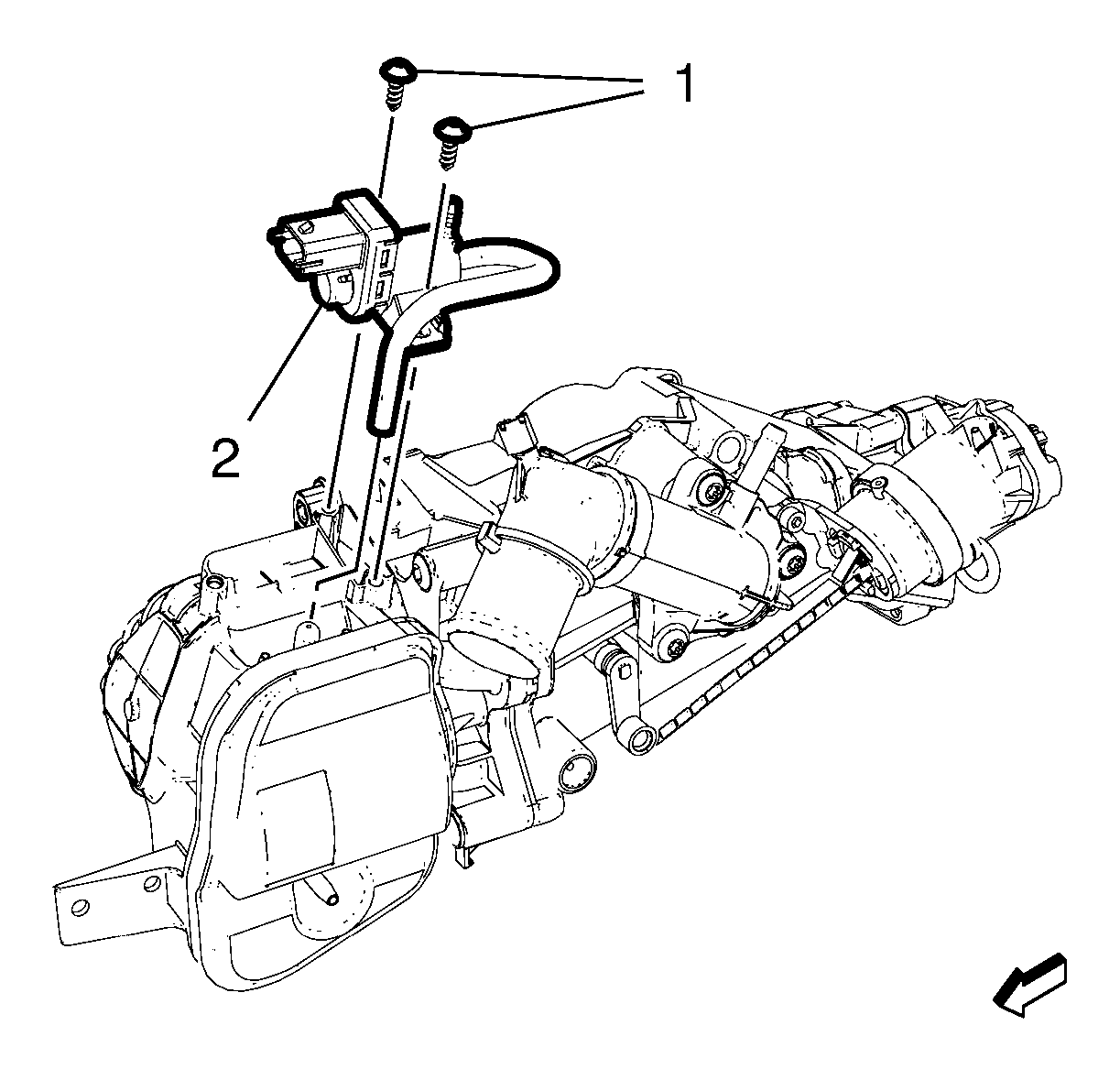

    Fig 2: Exhaust Gas Recirculation Actuator Valve Bolts
    GM3351974Courtesy of GENERAL MOTORS COMPANY
  4. Remove the exhaust gas recirculation actuator valve (2) along with the vacuum hose.
  5. Remove the 3 thermostat housing bolts (3).

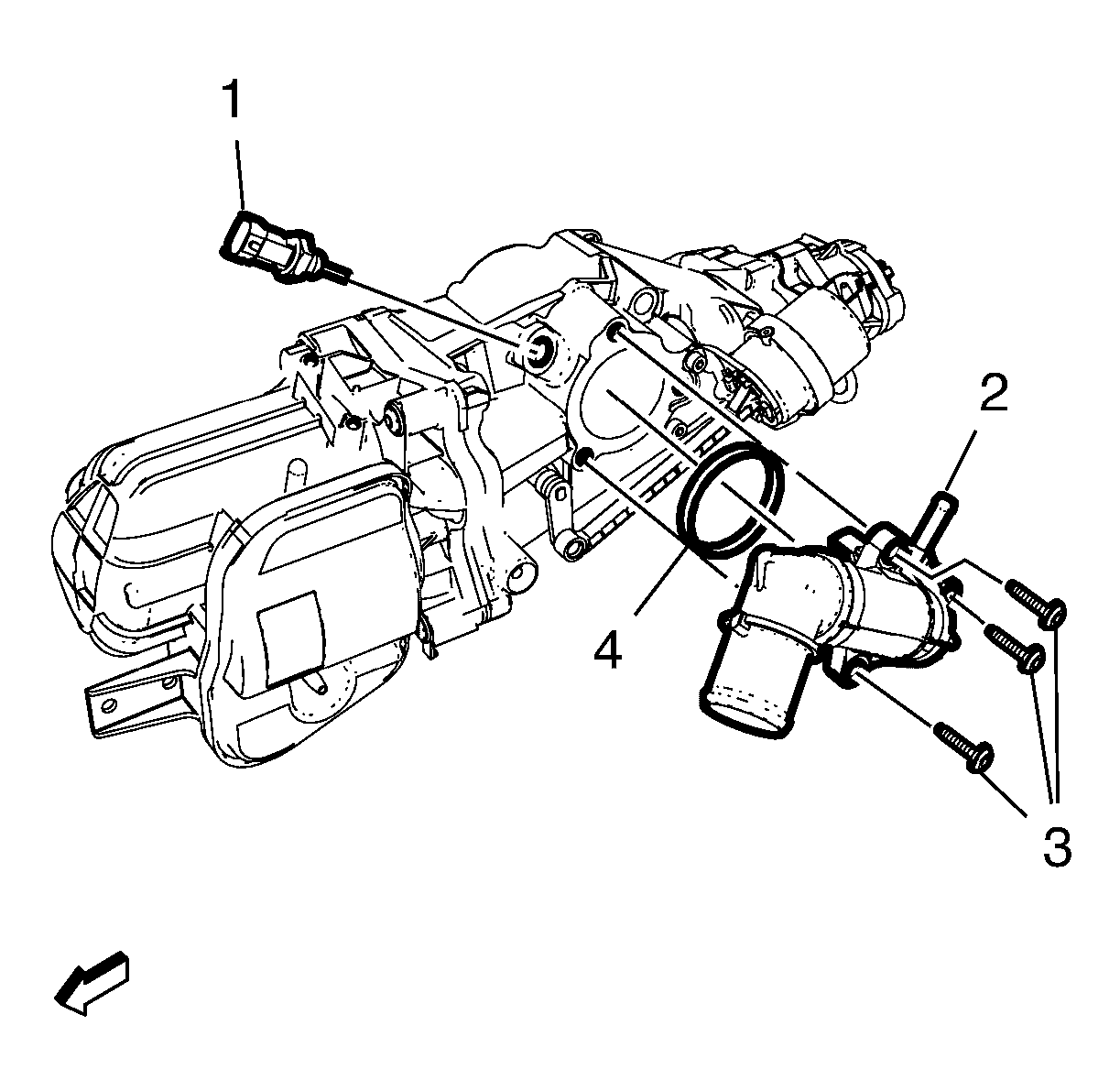

    Fig 3: Thermostat Housing Bolts
    GM3351973Courtesy of GENERAL MOTORS COMPANY
  6. Remove the thermostat housing (2) along with the seal ring (4).
  7. Remove the temperature sensor (1).
  8. Remove the 2 exhaust gas recirculation valve bolts (2).

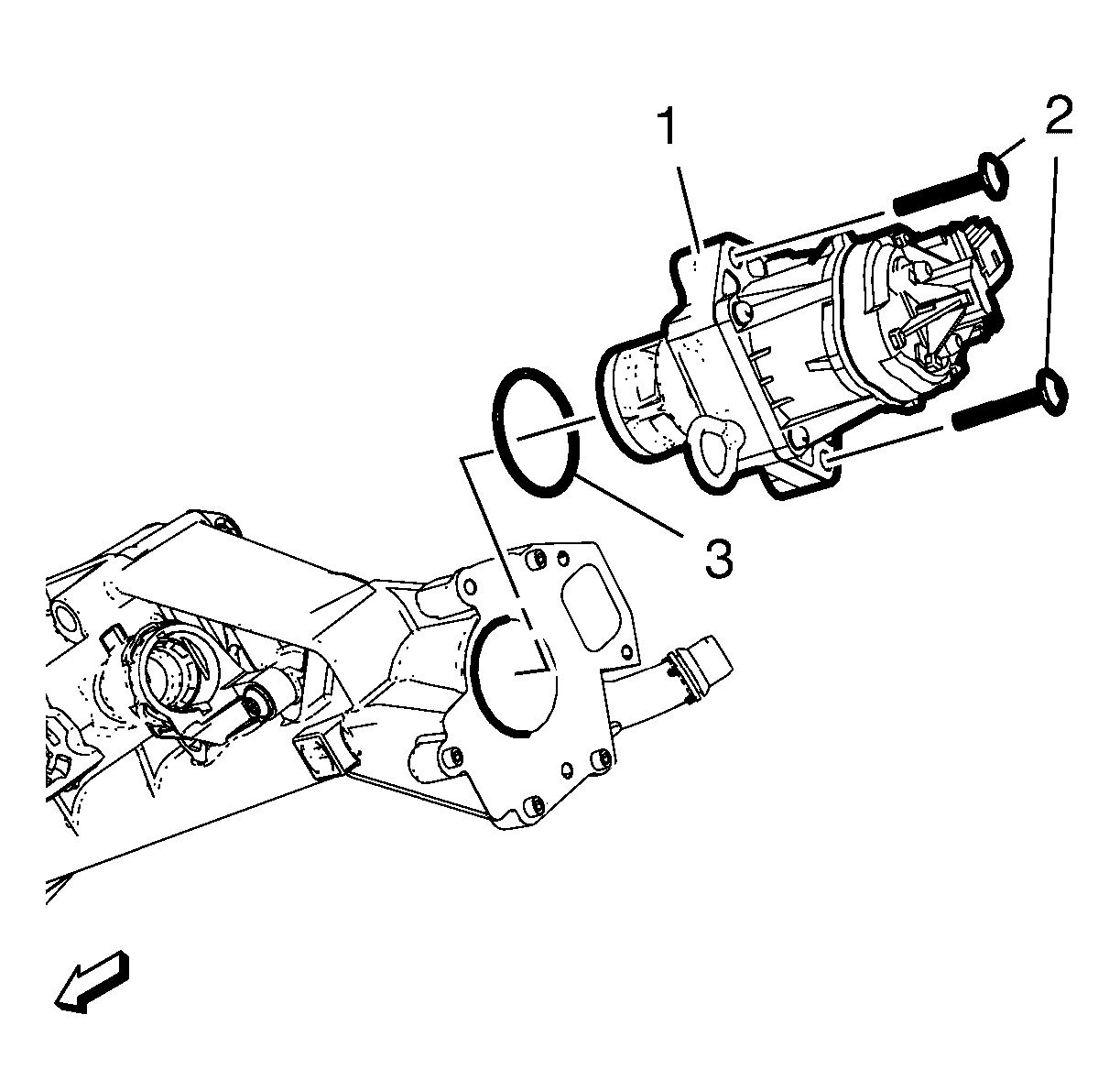

    Fig 4: Exhaust Gas Recirculation Valve And Bolts
    GM3288745Courtesy of GENERAL MOTORS COMPANY
  9. Remove the exhaust gas recirculation valve (1).
  10. Remove the exhaust gas recirculation valve gasket (3)
  11. Remove the 5 tank assembly bolts (1).

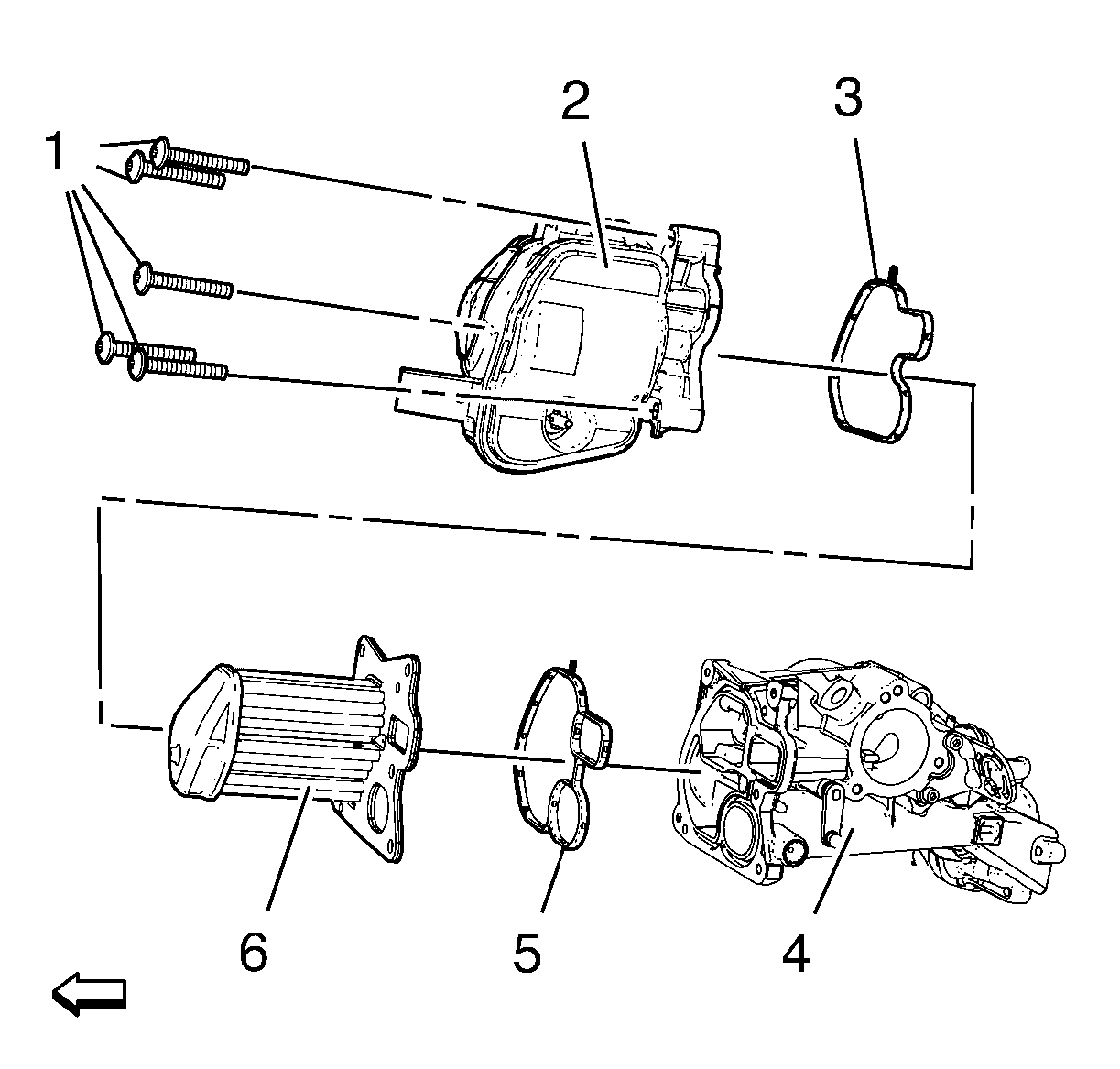

    Fig 5: Tank Assembly Bolts
    GM2191235Courtesy of GENERAL MOTORS COMPANY
  12. Remove the tank assembly (2) along with the sealing (5).
  13. Remove the cooling module (6) along with the sealing (3).
  14. Remove the water pipe bolt (3).

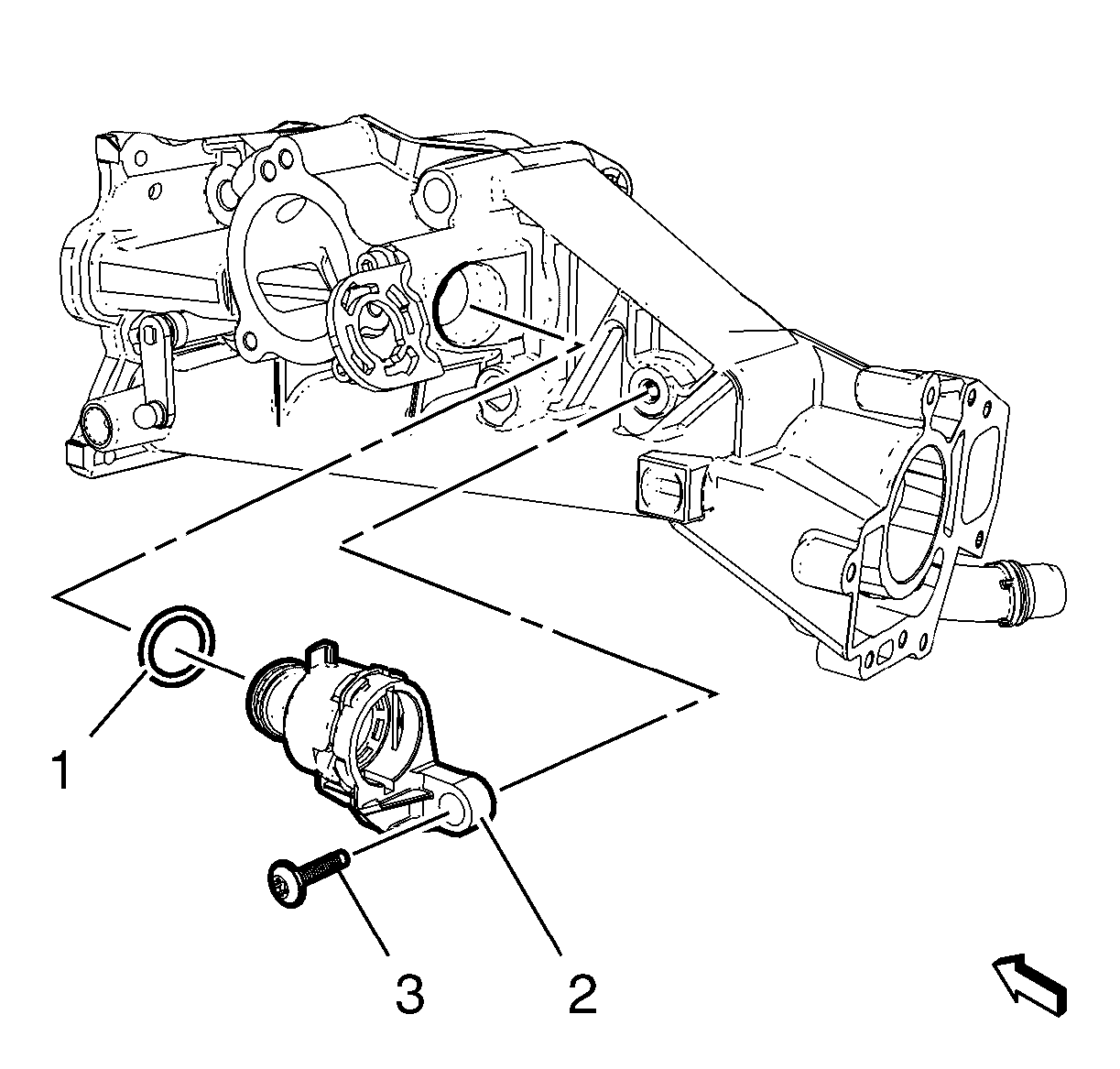

    Fig 6: Water Pipe And Bolt
    GM2191219Courtesy of GENERAL MOTORS COMPANY
  15. Remove the water pipe (2) along with the seal ring (1).
  16. Remove the water pipe bolt (3).

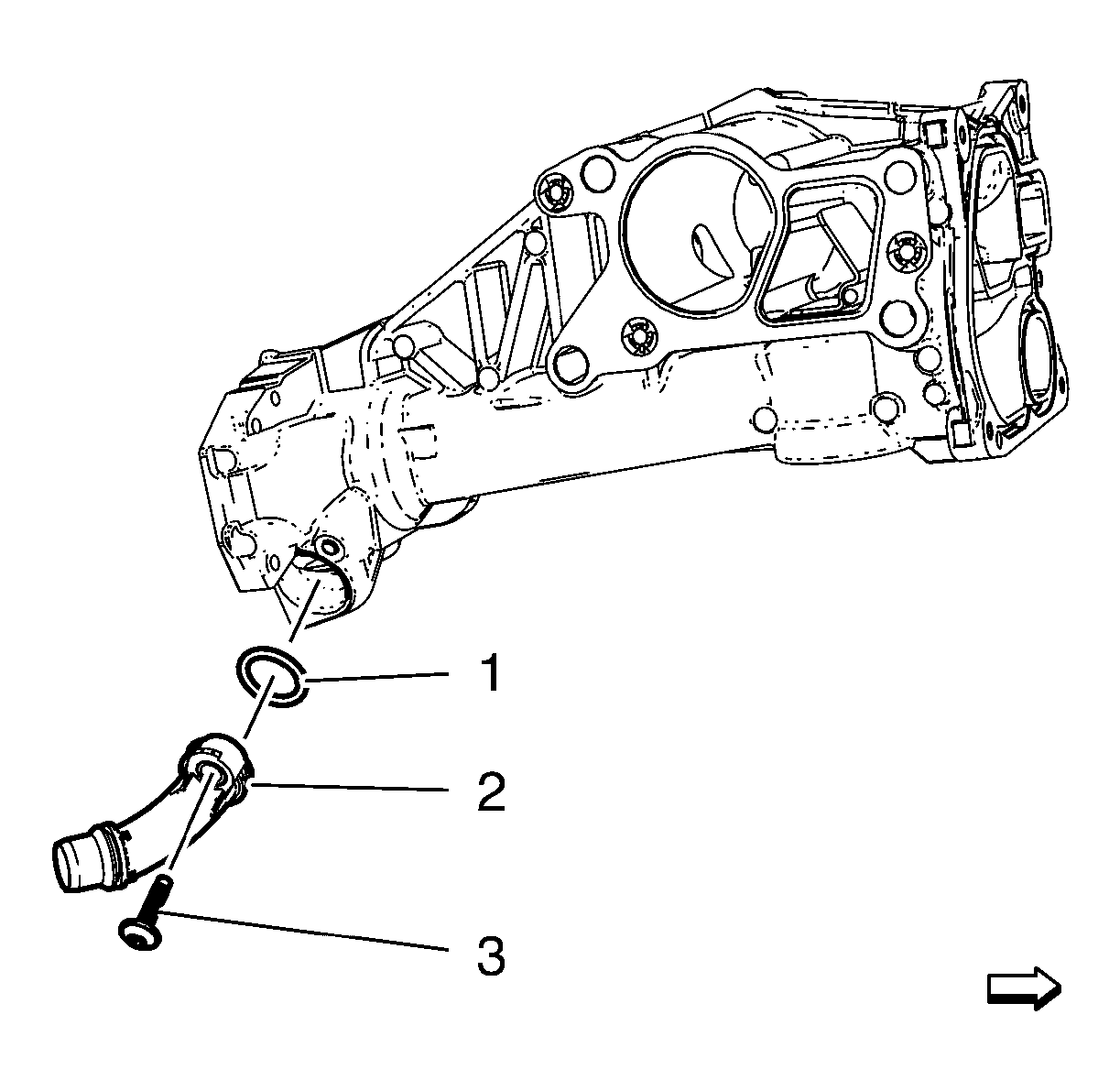

    Fig 7: Water Pipe And Bolt
    GM2191220Courtesy of GENERAL MOTORS COMPANY
  17. Remove the water pipe (2) along with the seal ring (1).
