Exhaust Gas Recirculation Pipe Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install a NEW lower exhaust gas recirculation pipe gasket (5).

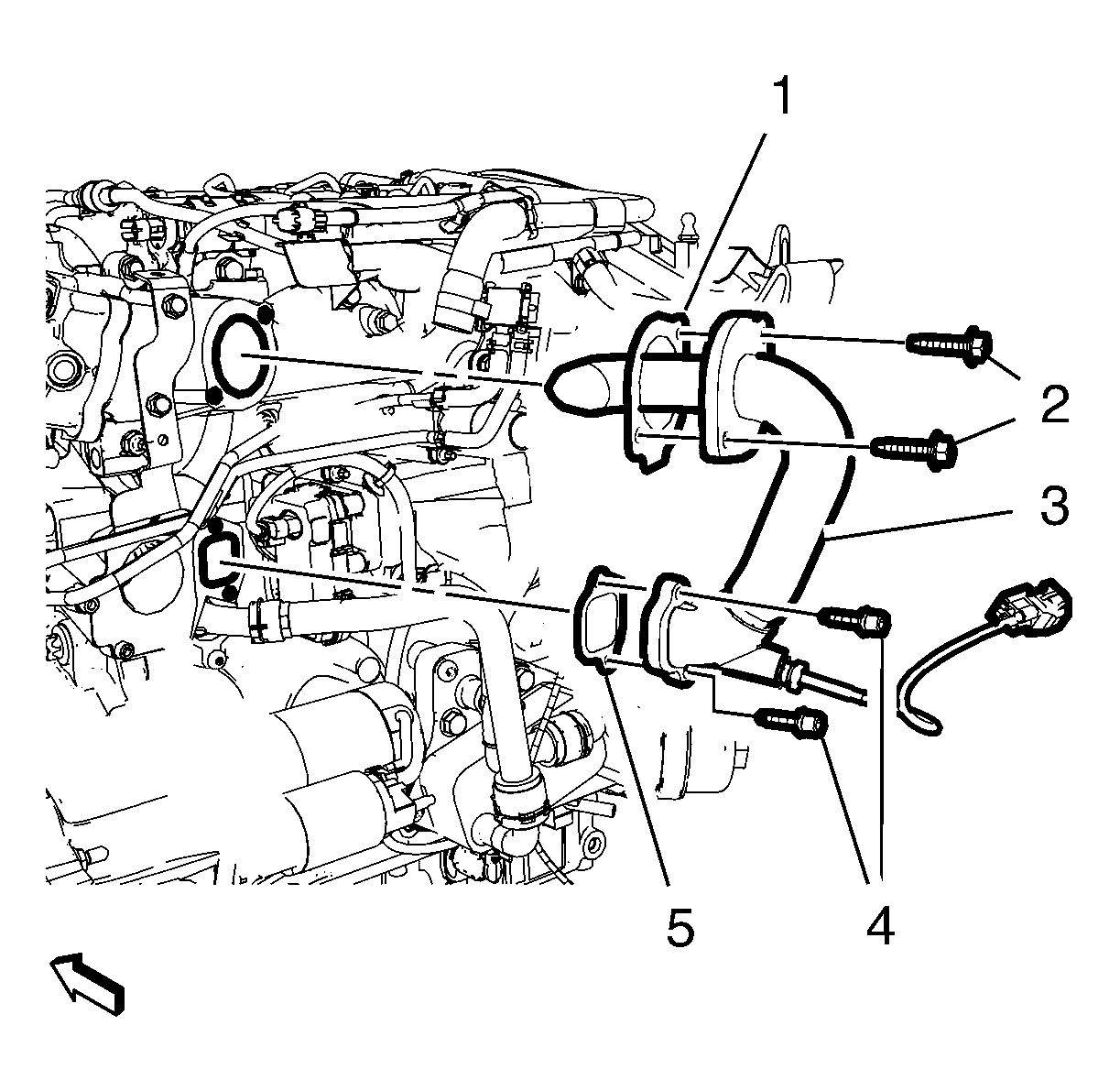

    Fig 1: Exhaust Gas Recirculation Pipe And Bolts
    GM2949085Courtesy of GENERAL MOTORS COMPANY
  2. Install a NEW upper exhaust gas recirculation pipe gasket (1).
  3. Install the exhaust gas recirculation pipe (3).
  4. Install the 2 exhaust gas recirculation pipe bolts (2) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  5. Install the 2 exhaust gas recirculation pipe bolts (4) and tighten to 9 N.m (80 lb in).
