Engine Oil Cooler Coolant Outlet Hose Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the engine oil cooler coolant outlet hose (2).

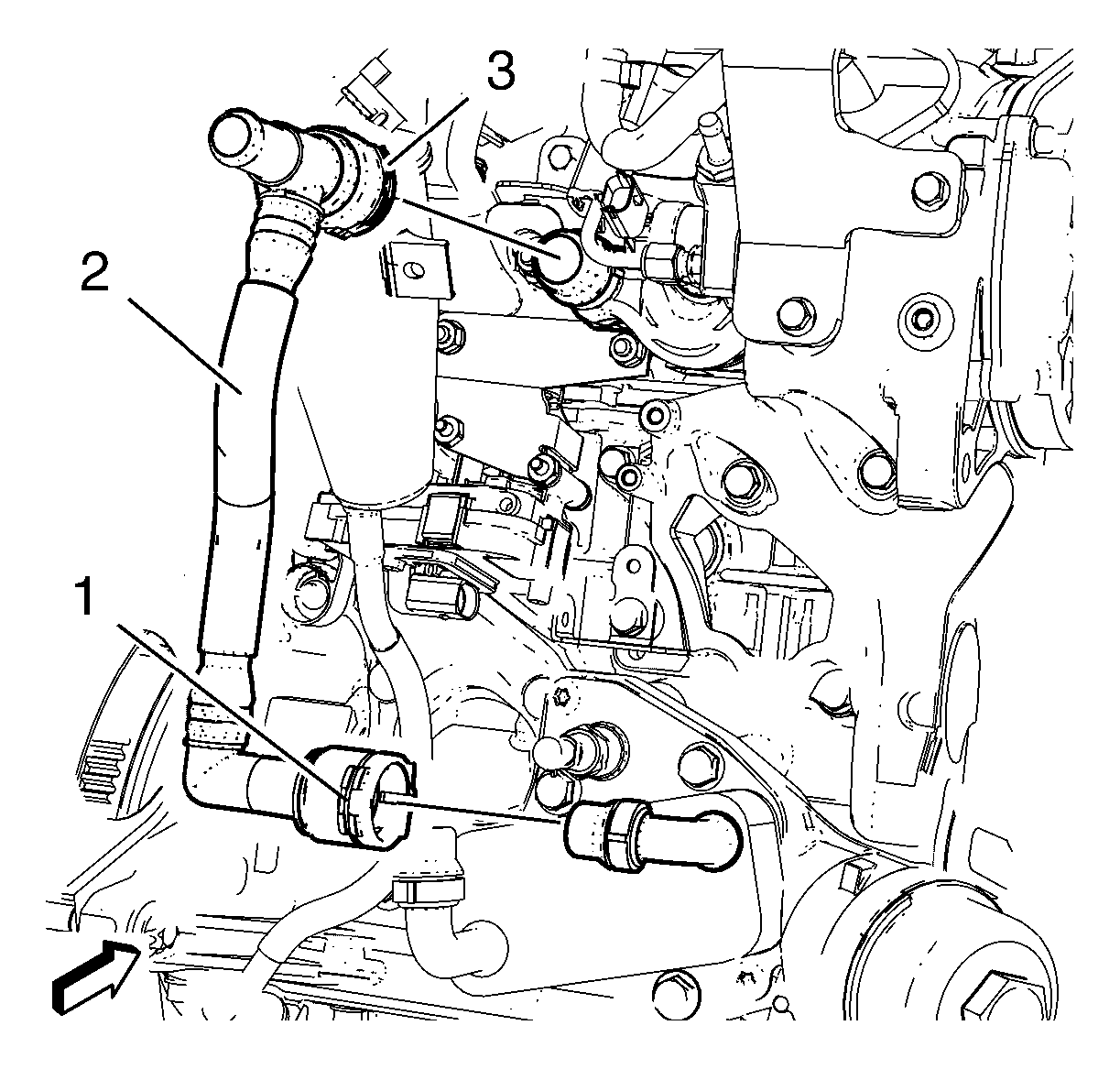

    Fig 1: Engine Oil Cooler Coolant Outlet Hose
    GM2189711Courtesy of GENERAL MOTORS COMPANY
  2. Close the 2 clamps (1, 3).
