Engine Mount Bracket Installation

WARNING: This page is about a different variant/trim than selected.

Install the engine mount bracket (3).

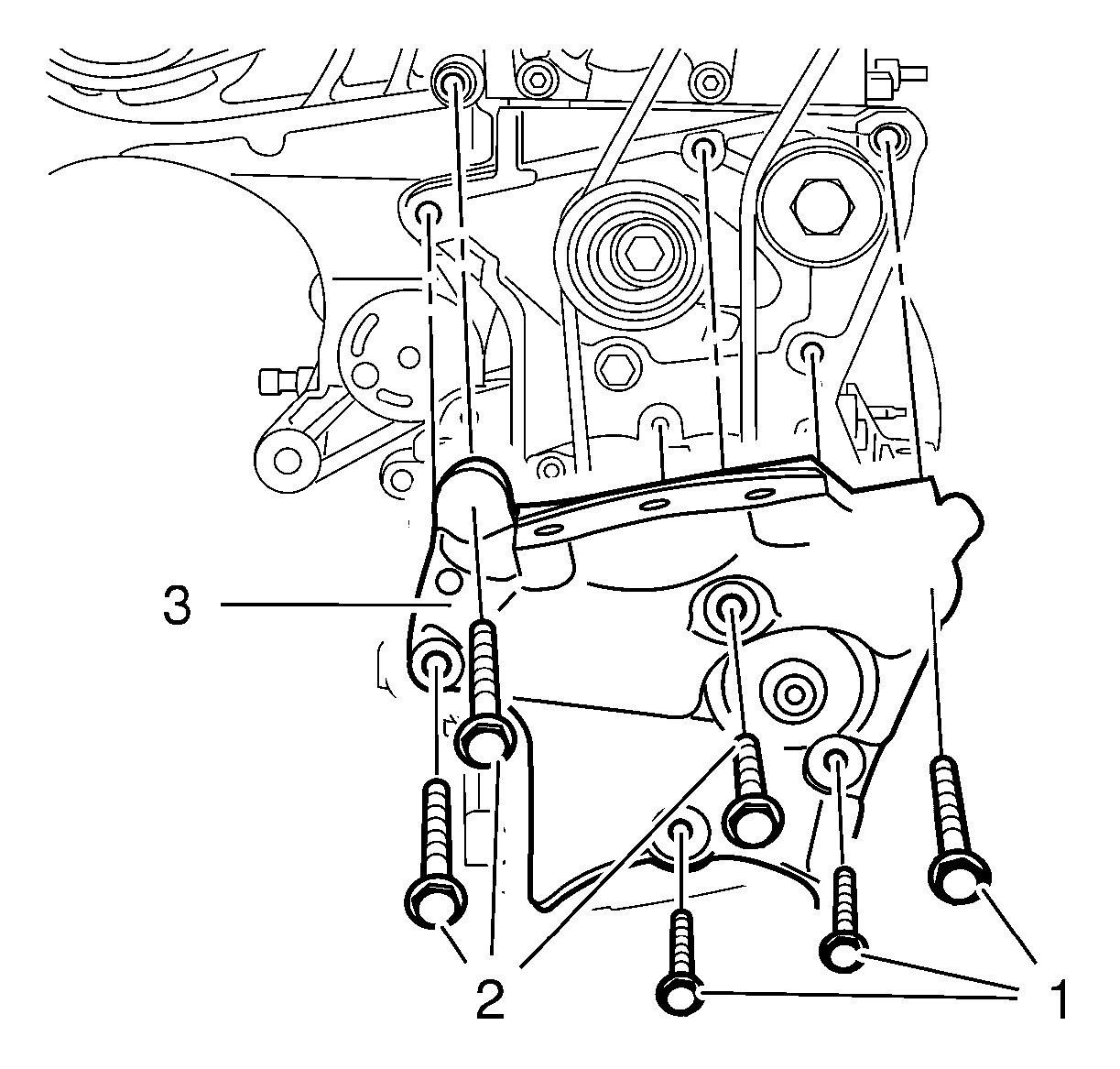

Fig 1: Engine Mount Bracket
Courtesy of GENERAL MOTORS COMPANY
Install the 6 engine mount bracket bolts (1, 2) and tighten to:
CAUTION: Refer to Fastener Caution

NOTE: Different bolt dimensions.
- Bolt dimension M10: 50 N.m (37 lb ft)
- Bolt dimension M8: 25 N.m (19 lb ft)
