Engine Lift Bracket Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the bracket (3).

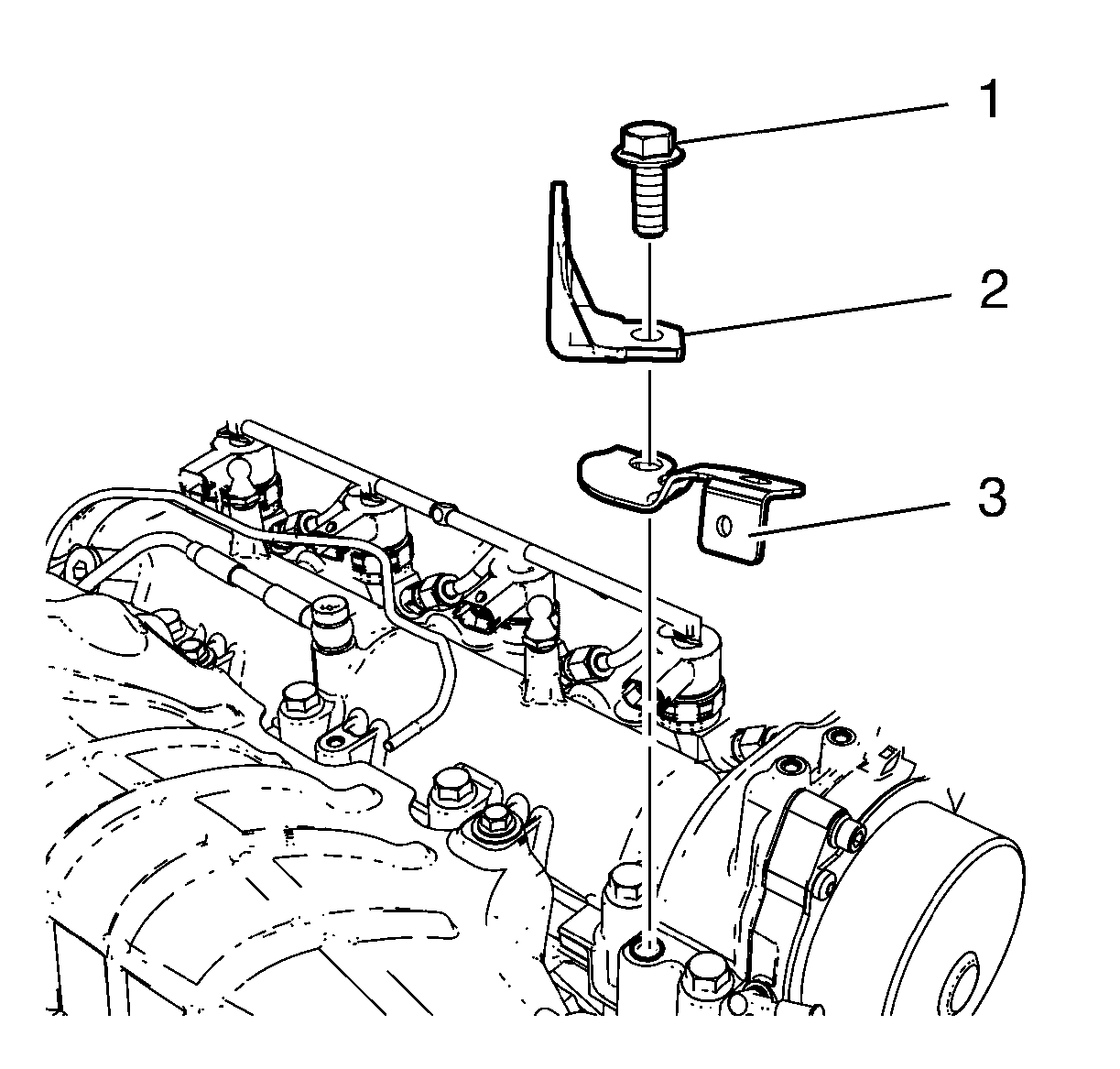

    Fig 1: Engine Lift Bracket Bolt
    GM2190594Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine lift bracket (2).
  3. Install the engine lift bracket bolt (1) and tighten to 50 N.m (37 lb ft).
    CAUTION: Refer to Fastener Caution .
