Engine Coolant Thermostat Housing Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the thermostat housing seal (2).

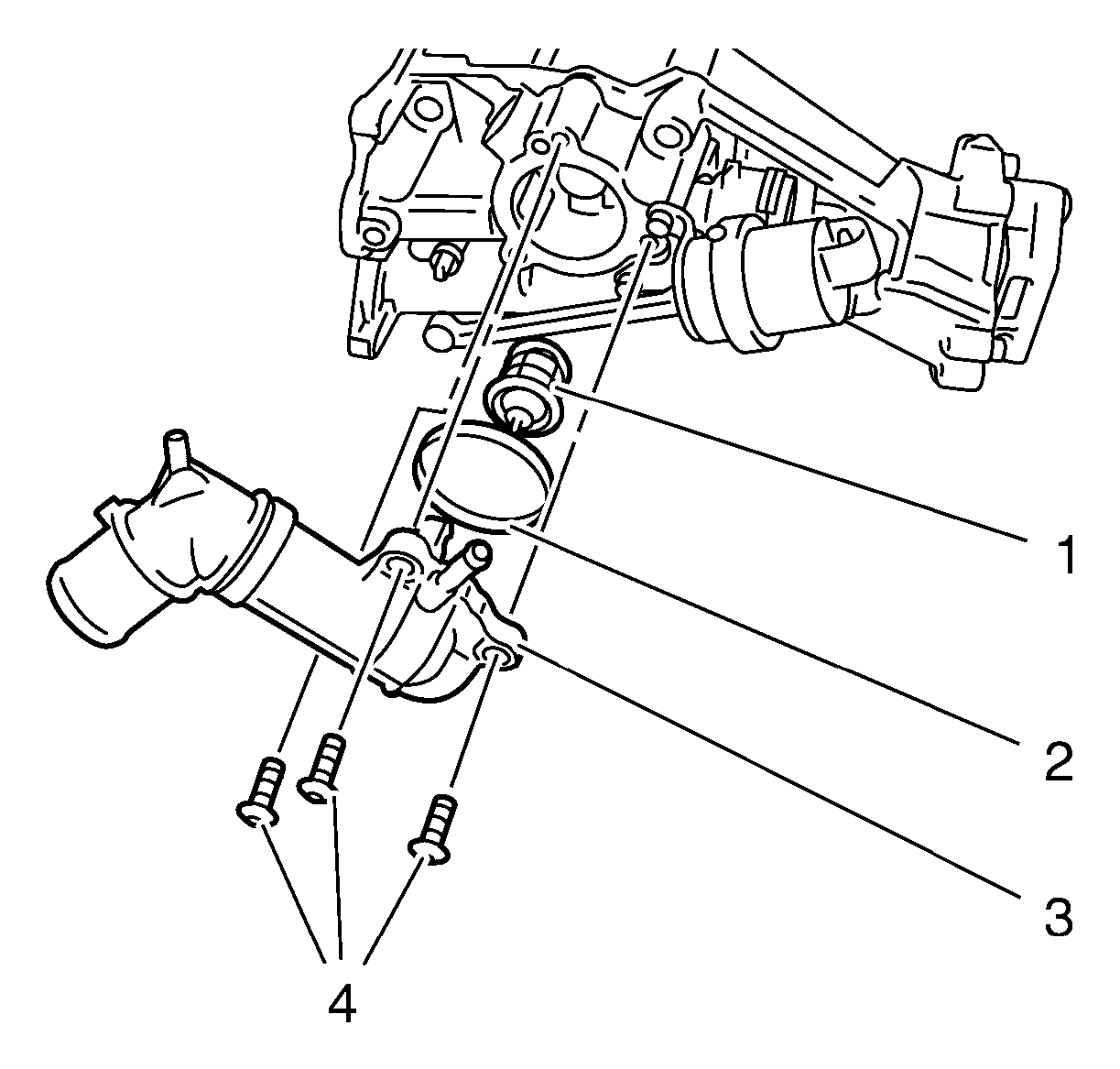

    Fig 1: Thermostat Housing And Bolts
    GM2026725Courtesy of GENERAL MOTORS COMPANY
  2. Install the thermostat (1).
  3. Install the thermostat housing (3).
  4. Install the 3 thermostat housing bolts (4) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution
