Engine Coolant Temperature Sensor Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the engine coolant temperature sensor gasket (2).

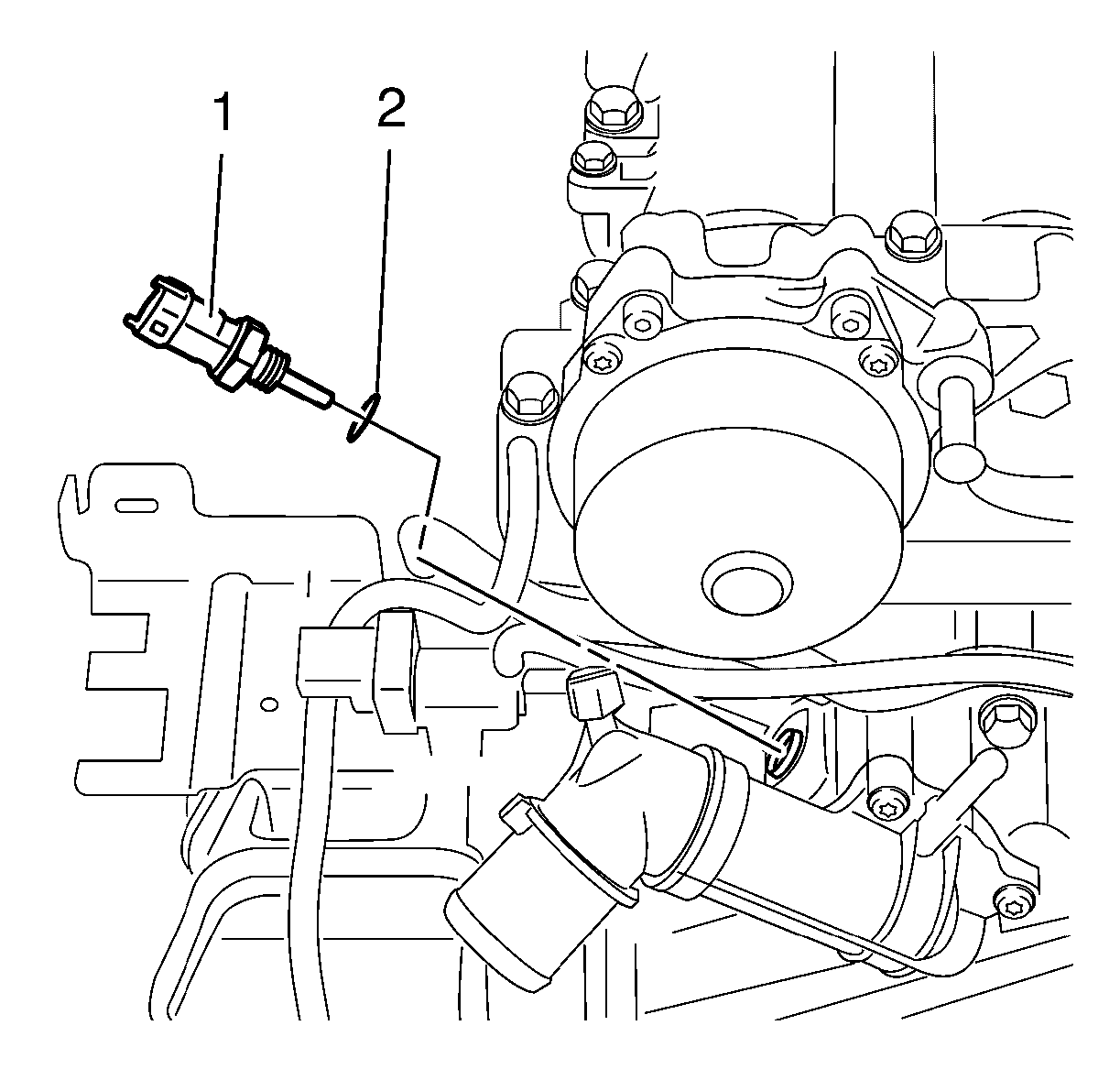

    Fig 1: Engine Coolant Temperature Sensor And Gasket
    GM2026605Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine coolant temperature sensor (1) and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
