Engine Block Disassemble

WARNING: This page is about a different variant/trim than selected.

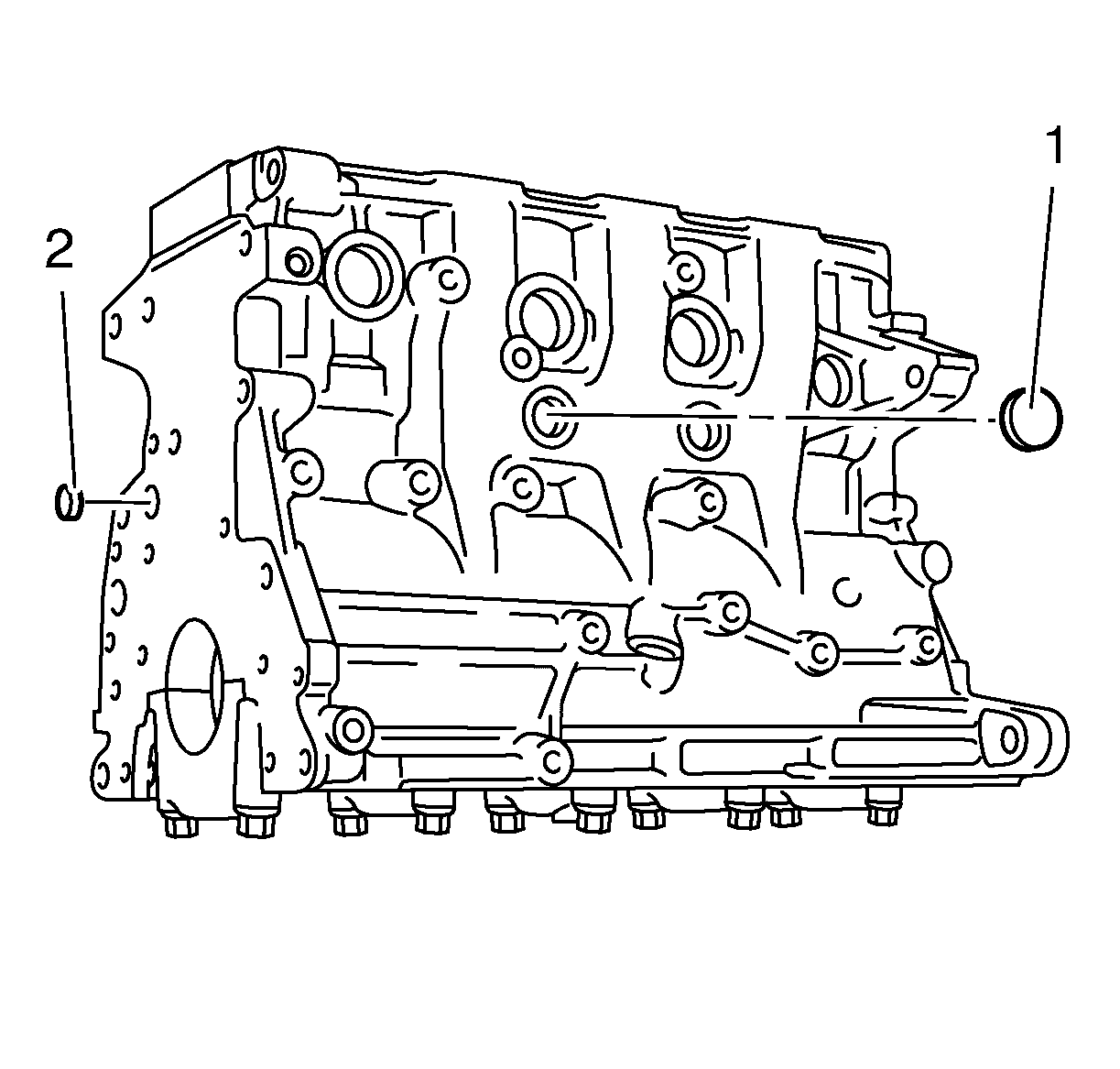

Remove the water jacket drain plugs (1, 2).

Fig 1: Water Jacket Drain Plugs
Courtesy of GENERAL MOTORS COMPANY

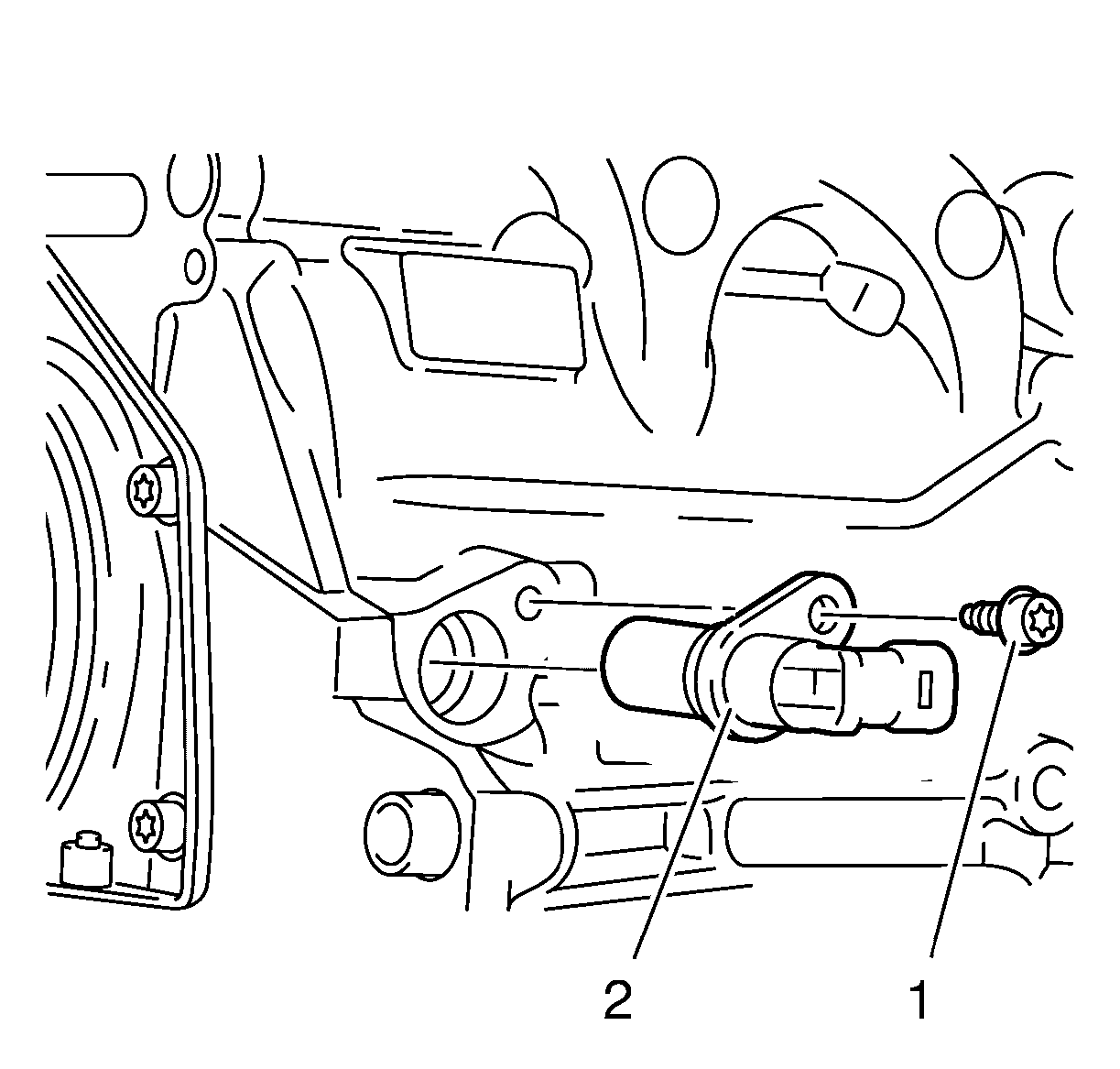

Remove the crankshaft position sensor (2) and bolt (1).

Fig 2: Crankshaft Position Sensor And Bolt
Courtesy of GENERAL MOTORS COMPANY

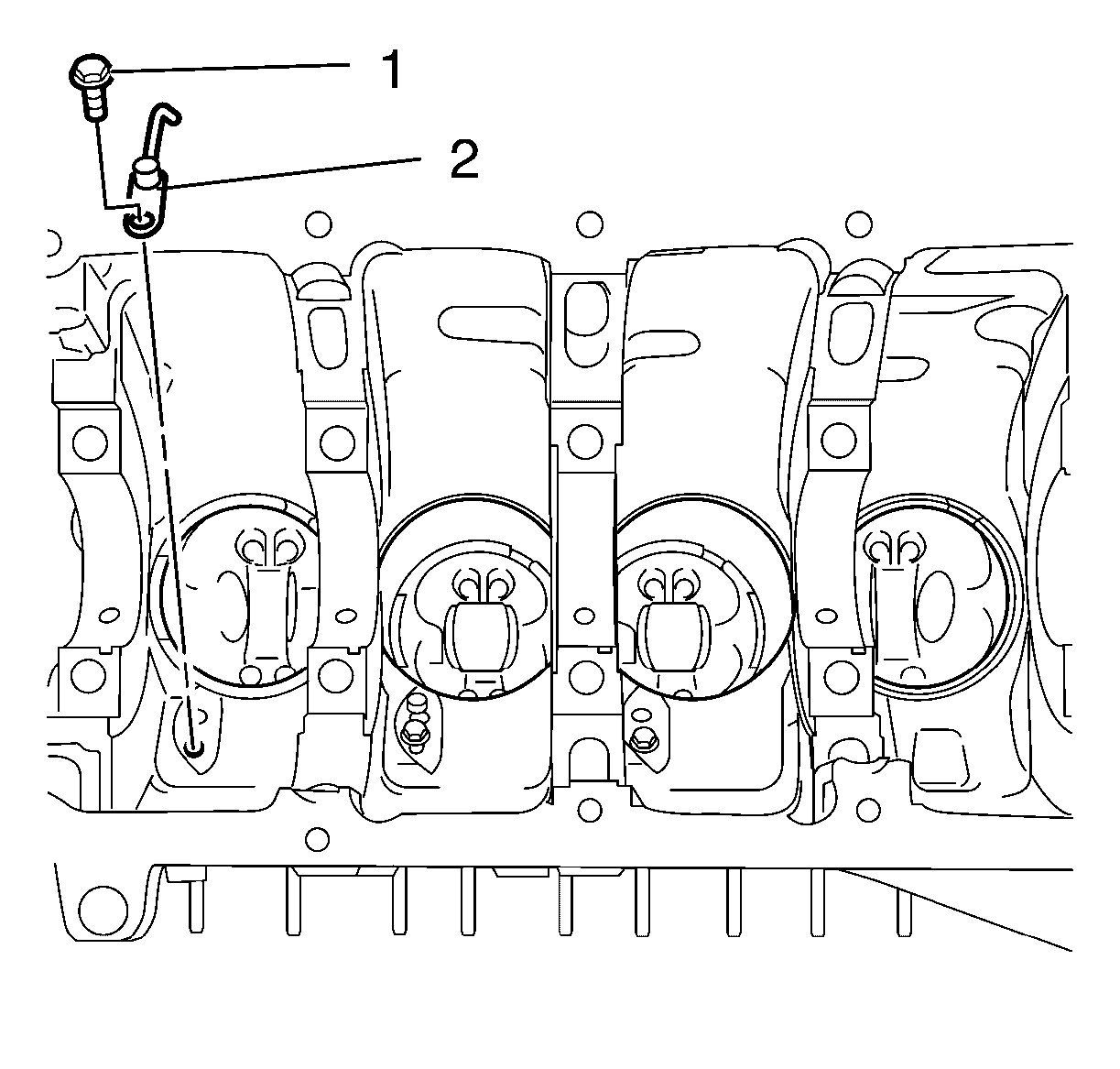

Remove the piston oil nozzle bolt (1).

Fig 3: Piston Oil Nozzle Bolt
Courtesy of GENERAL MOTORS COMPANY
Remove the piston oil nozzle (2).
