Engine Block Core Hole Plug Removal - Transmission Side

WARNING: This page is about a different variant/trim than selected.

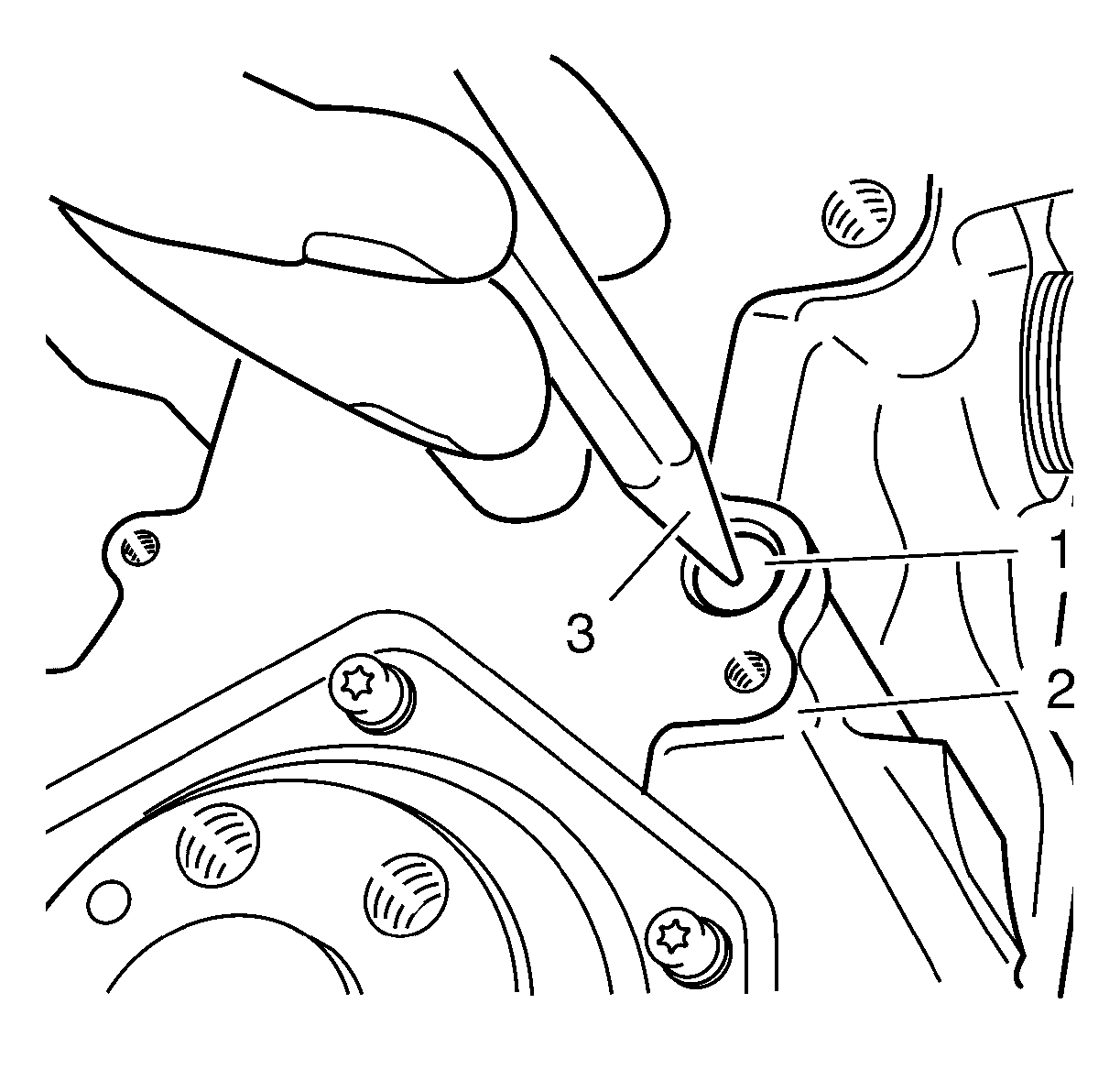

Strike a hole into the plug (1).

Fig 1: Strike Hole Into Plug
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Do not drill out engine block core hole plugs. Metal fragments could fall into the oil channel and lead to engine damage.
Use a suitable tool (3).

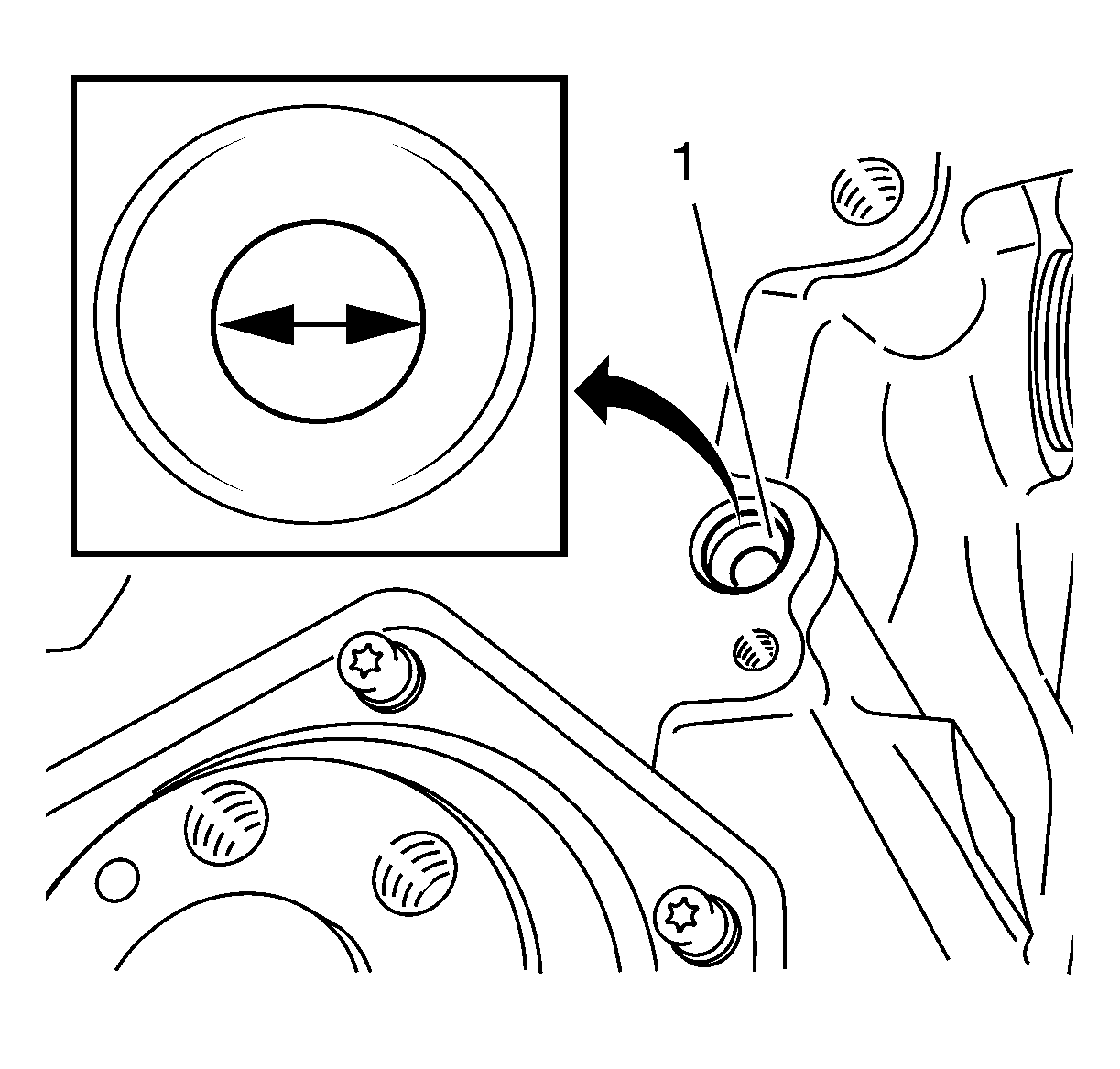

The hole diameter inside the plug (1) should amount 6 to 7 mm (1) (0.236 to 0.275 in).

Fig 2: Hole Diameter Inside Plug Should Amount 6 to 7 mm
Courtesy of GENERAL MOTORS COMPANY

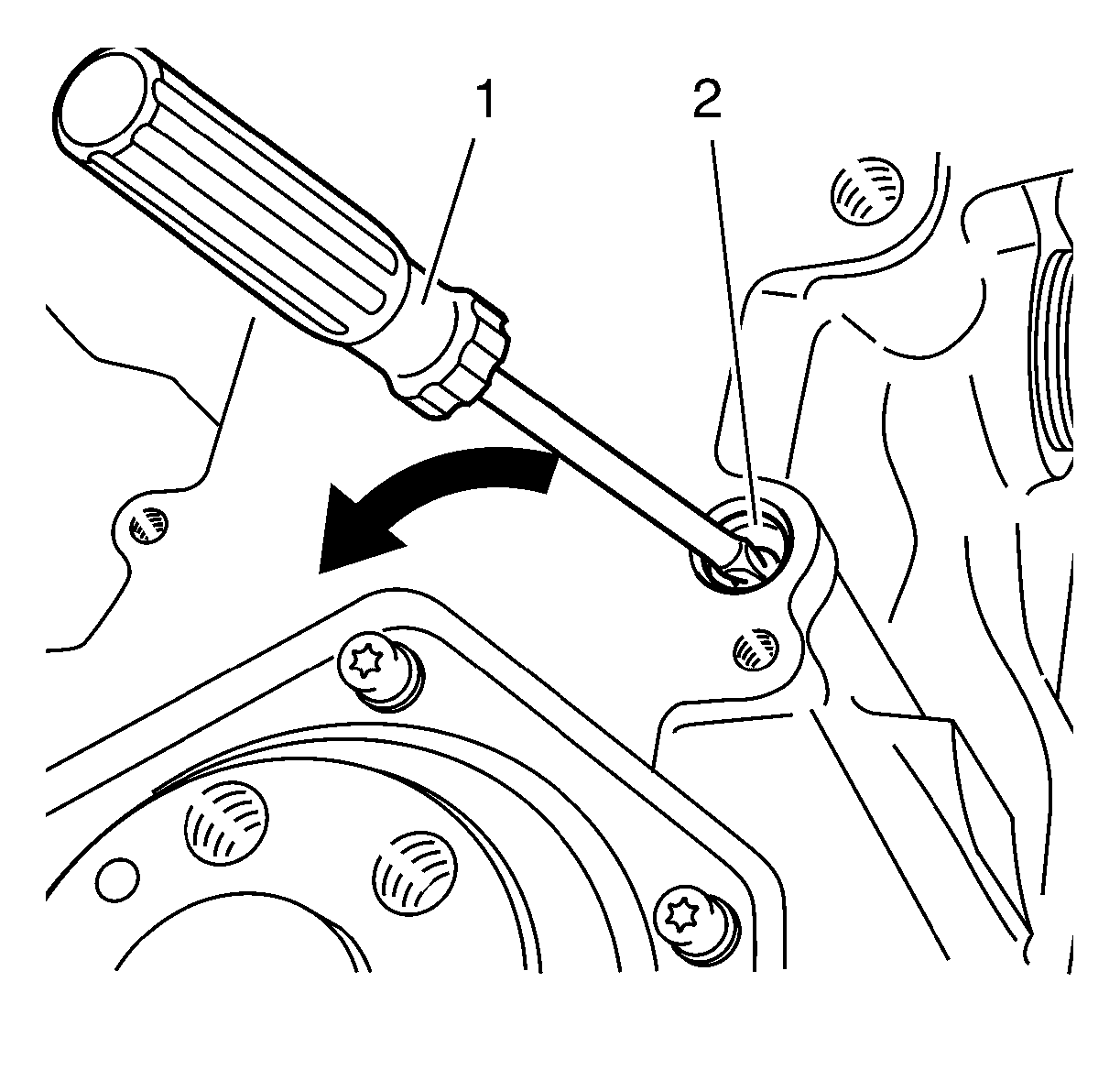

To remove the core hole plug (2) put a suitable tool (1) into the hole and push in direction of the arrow.

Fig 3: Core Hole Plug
Courtesy of GENERAL MOTORS COMPANY

NOTE: Do not damage the sealing surface.
Remove the old gasket material.
