Engine Block Cleaning and Inspection
WARNING: This page is about a different variant/trim than selected.

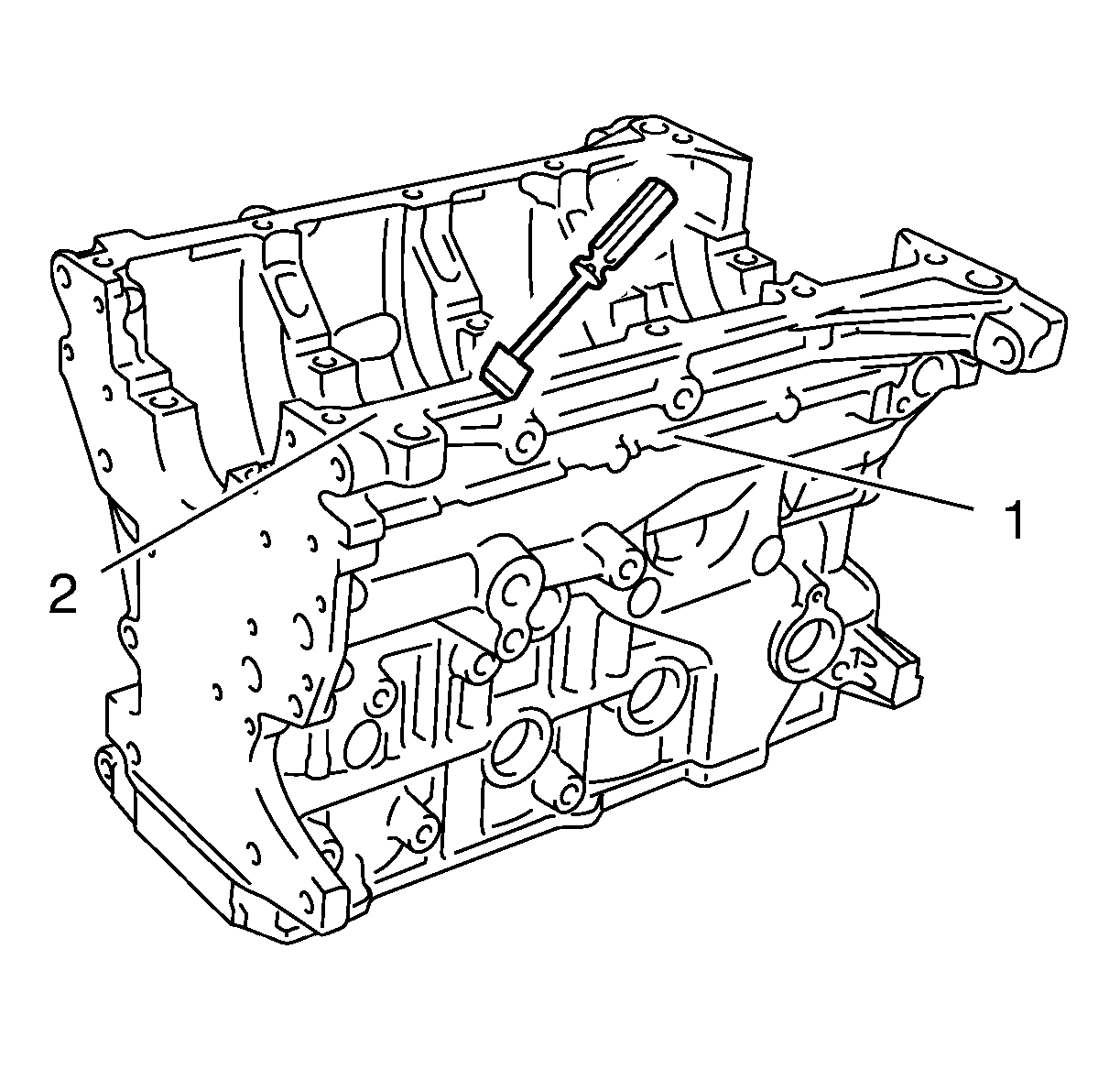

- Clean the sealing material from the gasket mating surfaces (2).
- Clean the engine block (1) and lower crankcase in a cleaning tank with solvent.
- Flush the engine block with clean water or steam.
- Clean the oil passages.
- Clean the blind holes.
- Spray the cylinder bores and the machined surfaces with engine oil.
- Inspect the threaded holes. Clean the threaded holes with a rifle brush. If necessary, drill out the holes and install thread inserts.

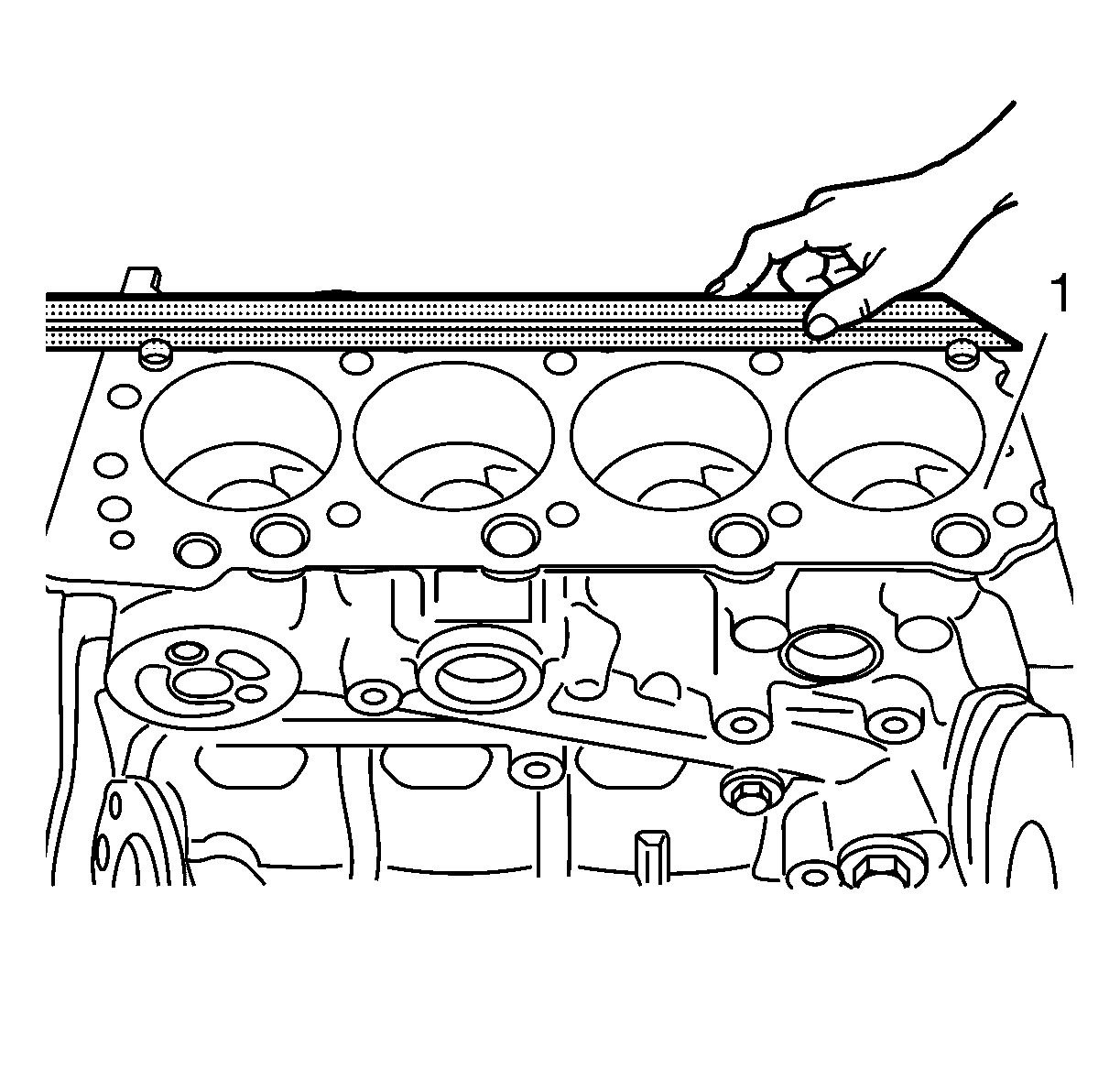

- Use a straight edge and a feeler gauge to check the deck surface (1) for flatness. If the deck surface is out of specification, replace the block. DO NOT machine the block.
NOTE: DO NOT attempt to machine the lower crankcase to engine block surfaces.
- Inspect the oil pan rail for nicks. Inspect the front cover attaching area for nicks. Use a flat mill file to remove any nicks.

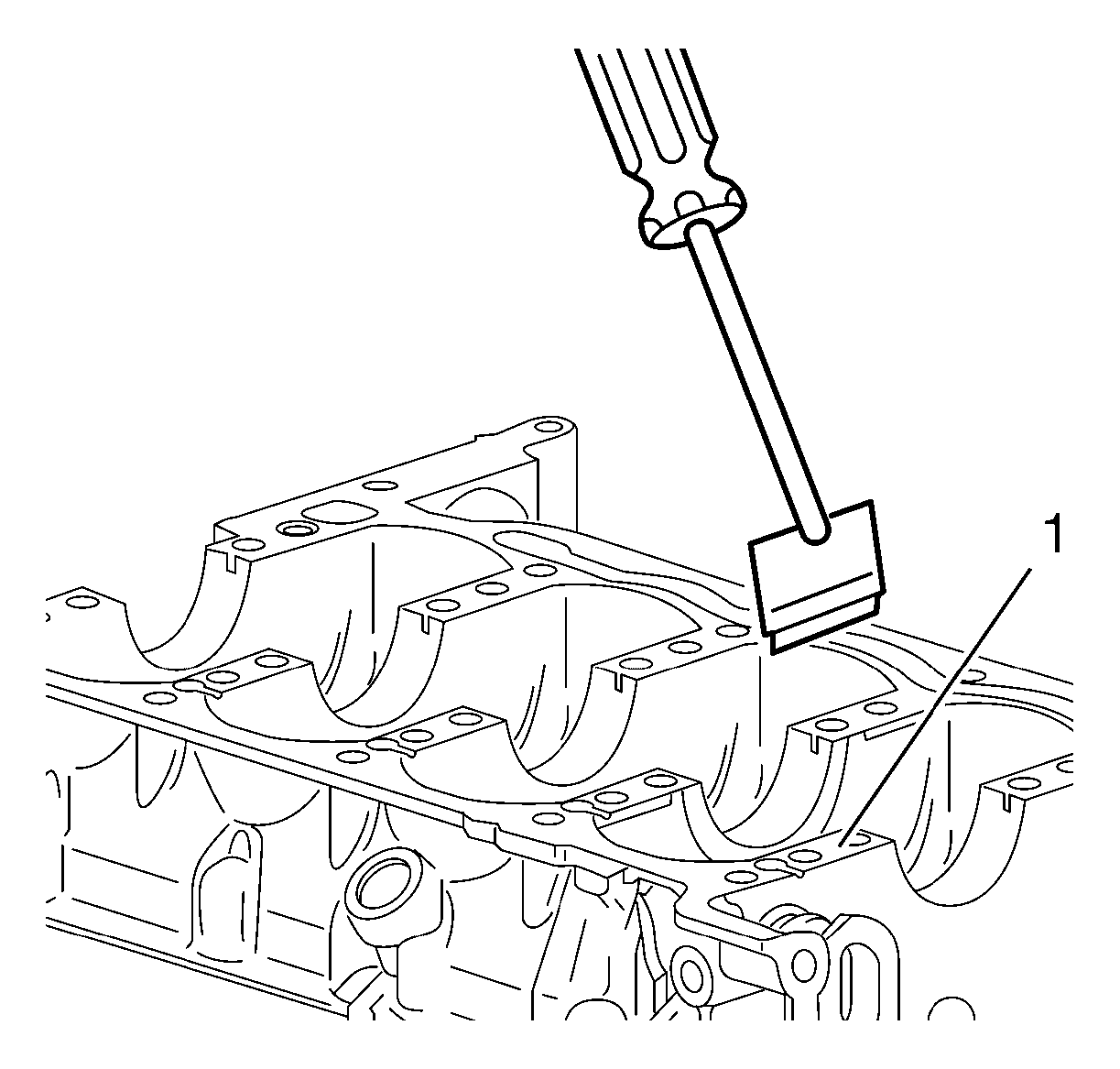

- Clean the sealing material from the gasket mating surfaces on the lower crankcase engine block side (1).

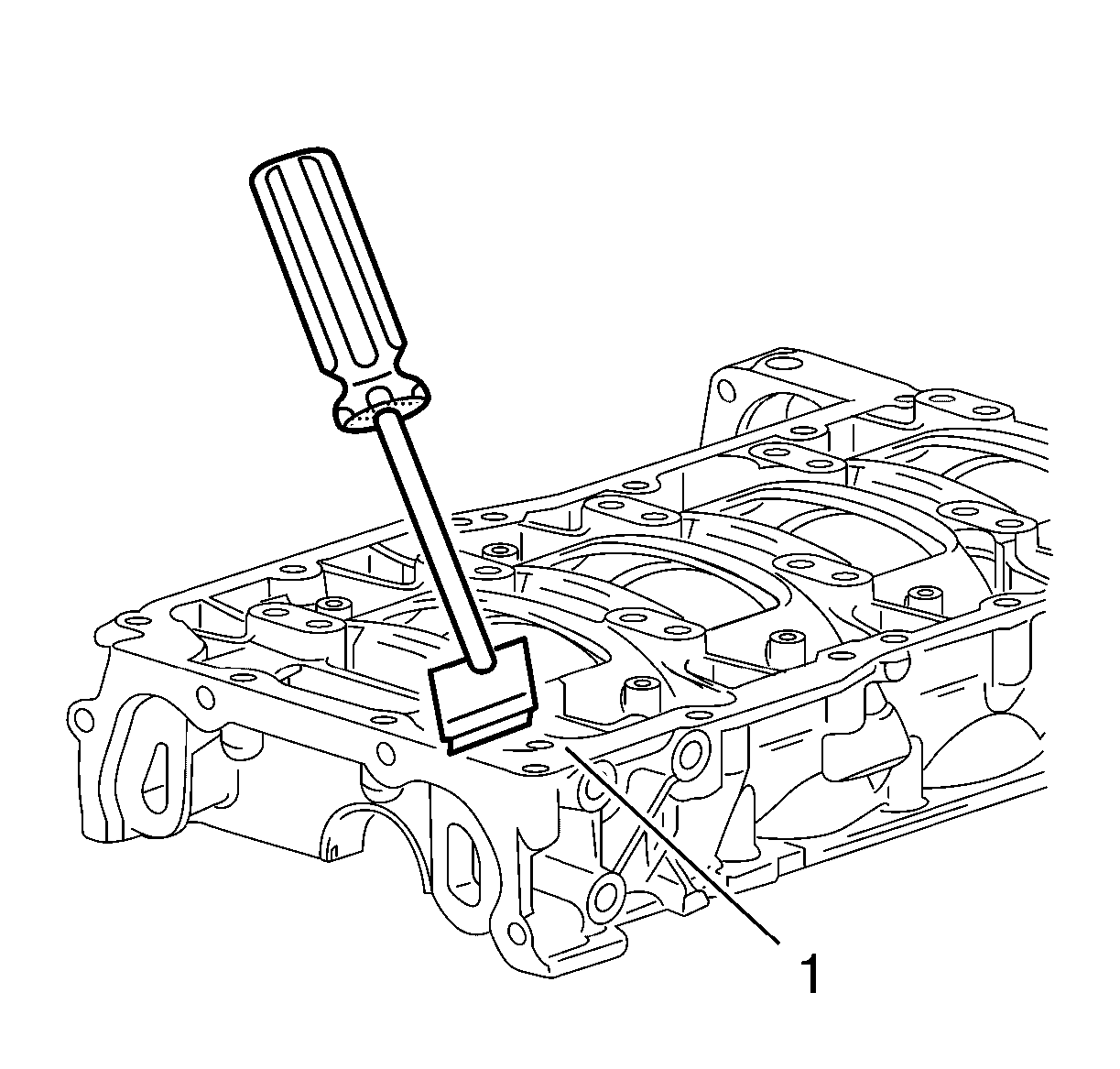

- Clean the sealing material from the gasket mating surfaces on the lower crankcase oil pan side (1).
- Inspect the crankshaft main bearing bores. Use a suitable tool (1) to measure the bearing bore concentricity and alignment. Refer to Engine Mechanical Specifications .
- Replace the engine block and bed plate if the crankshaft bearing bores are out of specification.

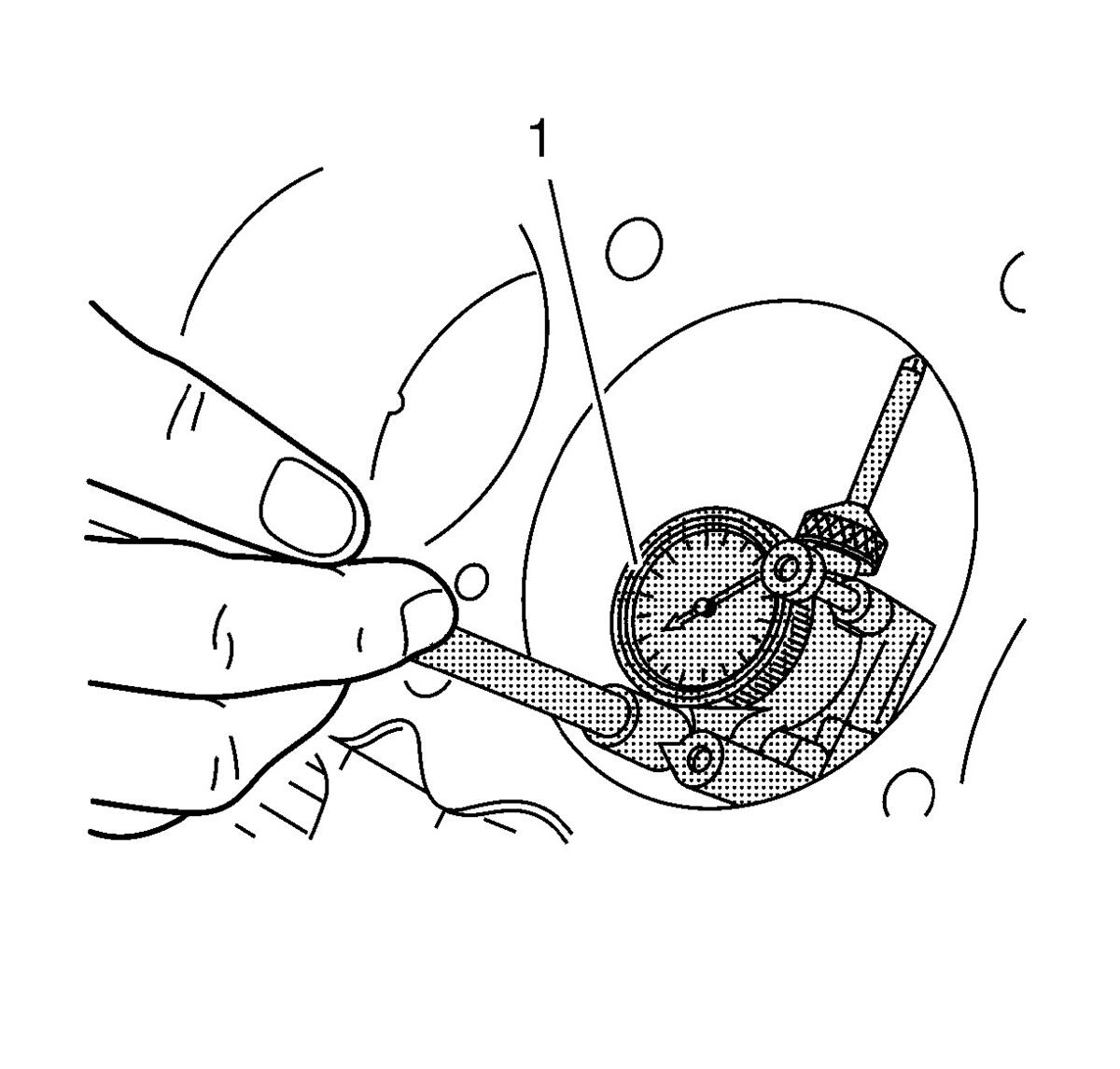

- Inspect the cylinder bores using a suitable tool (1). Inspect for the following items:
- Wear
- Taper
- Runout
- Ridging
Refer to Engine Mechanical Specifications for specifications.
- If the cylinder bores are out of specification, replace the block.
