Drive Belt Tensioner Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the drive belt tensioner (2).

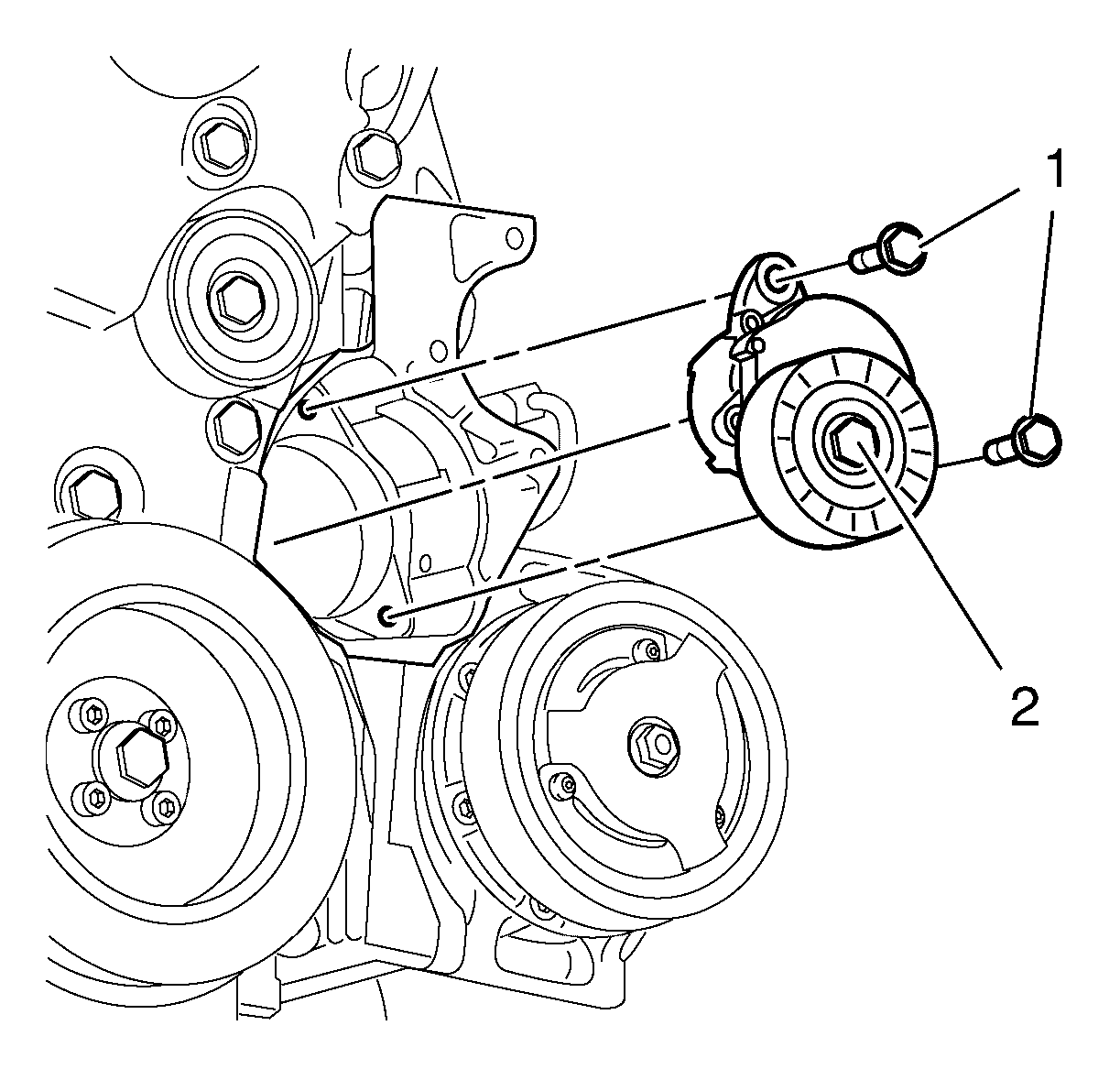

    Fig 1: Drive Belt Tensioner Bolts
    GM2026733Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 drive belt tensioner bolts (1) and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
