Diesel Fuel Separator Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the 2 exhaust pressure sensor bracket bolts (3).

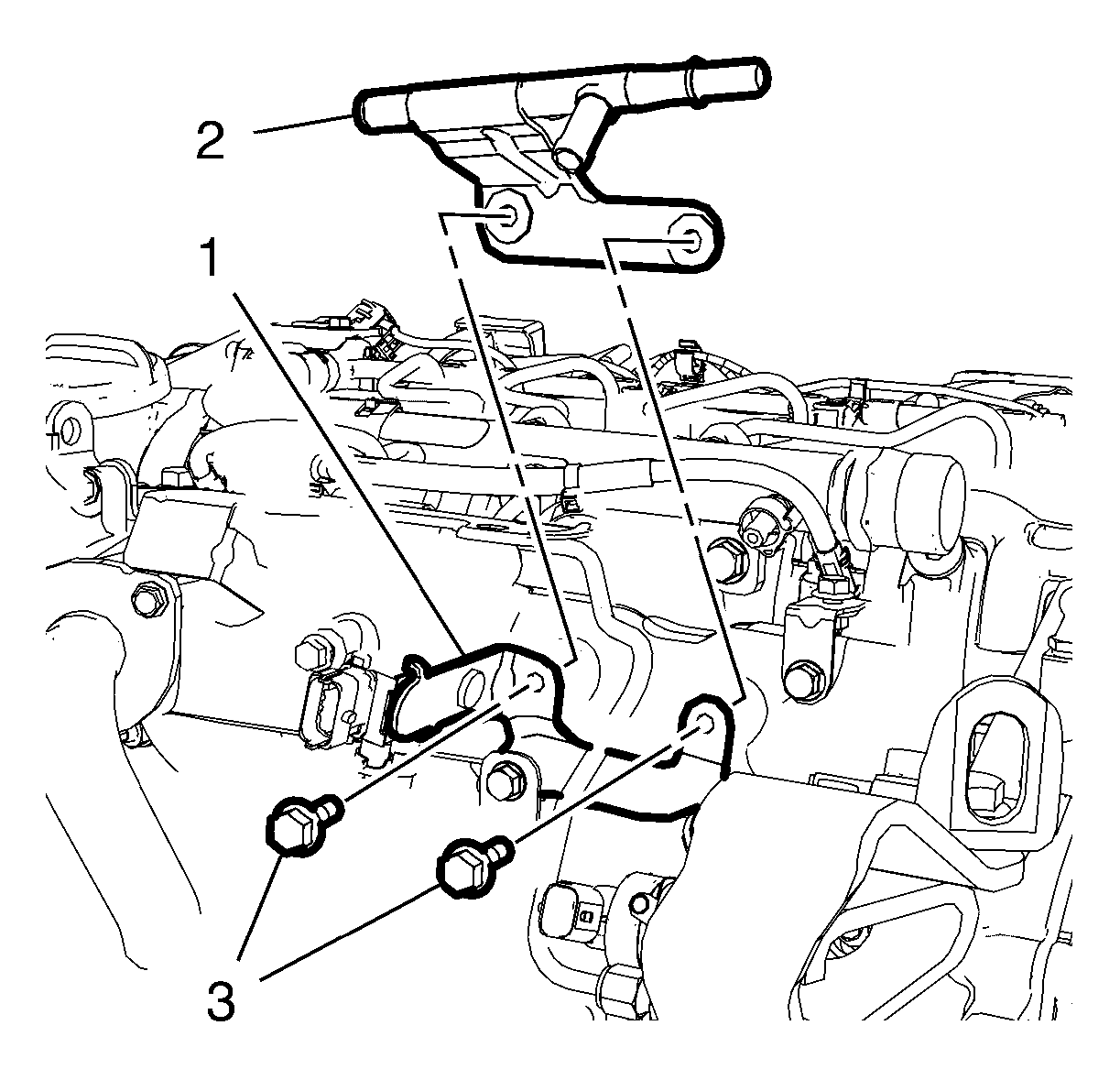

    Fig 1: Exhaust Pressure Sensor Bracket
    GM2949048Courtesy of GENERAL MOTORS COMPANY
  2. Remove the exhaust pressure sensor bracket (1).
  3. Remove the diesel fuel separator (2).
