Crankshaft And Bearing Removal

WARNING: This page is about a different variant/trim than selected.
  1. Loose the 10 crankshaft bearing cap bolts as shown in sequence.

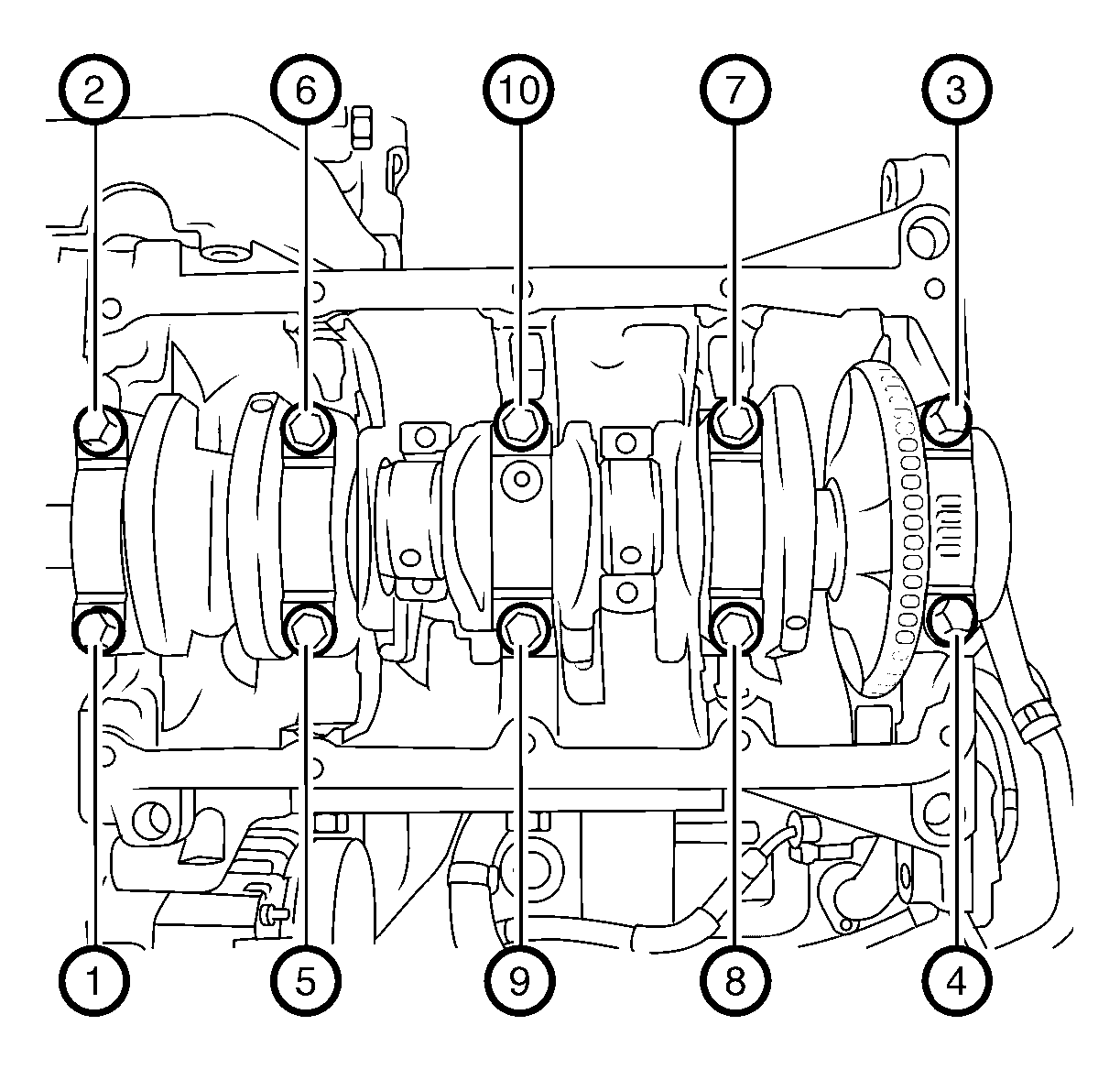

    Fig 1: Crankshaft Bearing Cap Bolts In Sequence
    GM2026781Courtesy of GENERAL MOTORS COMPANY
  2. Remove the 10 crankshaft bearing cap bolts (1, 2).
    Fig 2: Crankshaft Bearing Caps And Bolts
    GM2026657Courtesy of GENERAL MOTORS COMPANY
  3. Remove the 5 crankshaft bearing caps (3).
  4. Using both hands, lift the crankshaft straight up from the engine block.
  5. Place the crankshaft in a secure place.
  6. Prepare a piece of cardboard or equivalent, numbered (1-5) for bearing identification. Main bearing journals are numbered from the front of the engine.
  7. Remove the 10 crankshaft bearing halves (4) from the cylinder block and the crankshaft. Note the position of the thrust bearing.
  8. Place the 10 crankshaft bearing (4) on the cardboard in the correct positions.
  9. Remove the 3 increment wheel bolts (2).
    Fig 3: Increment Wheel Bolts
    GM2026783Courtesy of GENERAL MOTORS COMPANY
  10. Remove the increment wheel (1).
