Crankshaft Position Sensor Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the crankshaft position sensor (2).

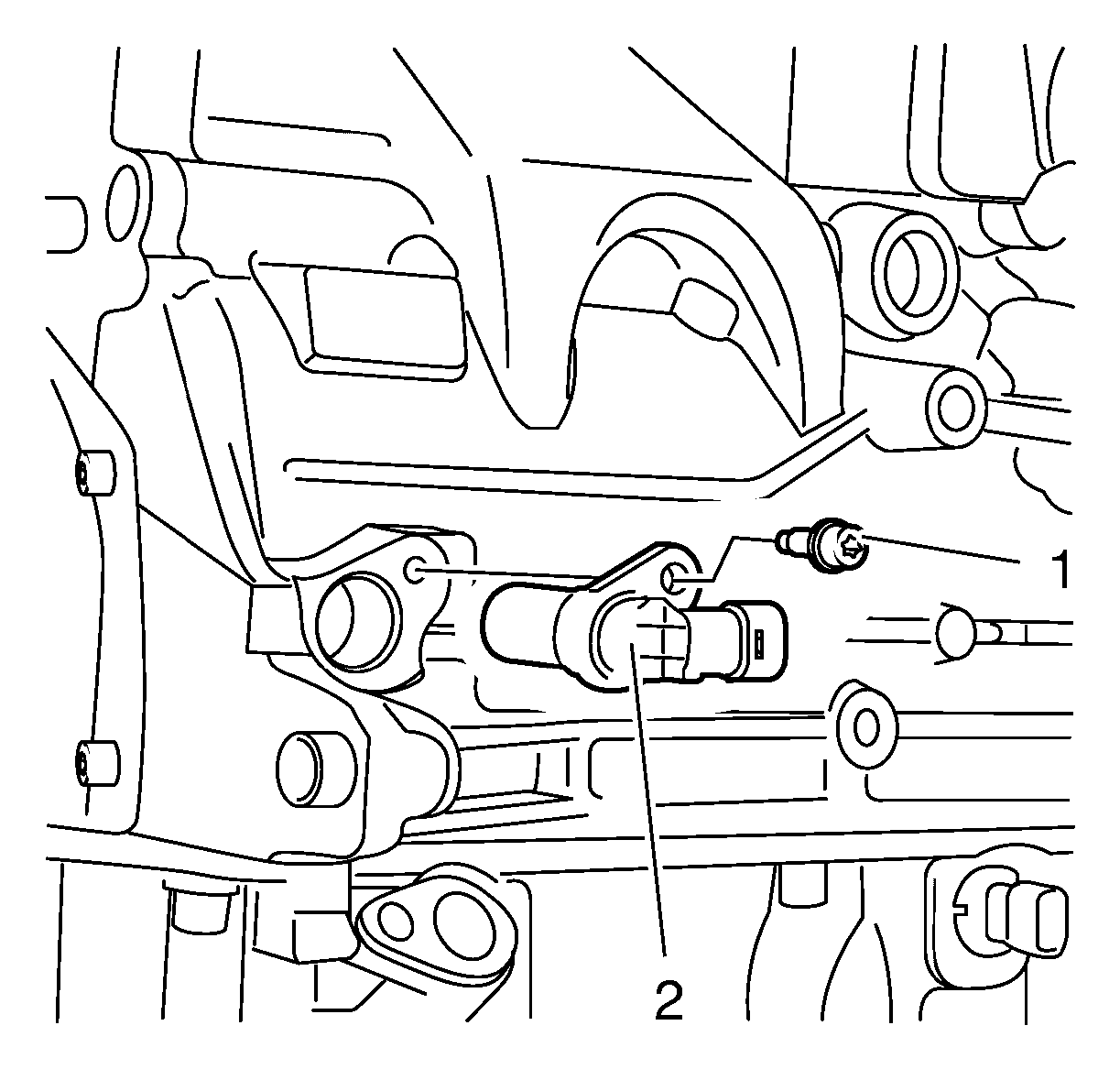

    Fig 1: Crankshaft Position Sensor And Bolt
    GM2026639Courtesy of GENERAL MOTORS COMPANY
  2. Install the crankshaft position sensor bolt (1) and tighten to 12 N.m (106 lb in), using a ribe M6 short socket.
    CAUTION: Refer to Fastener Caution .
