Catalytic Converter Heat Shield Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the catalytic converter heat shield (2).

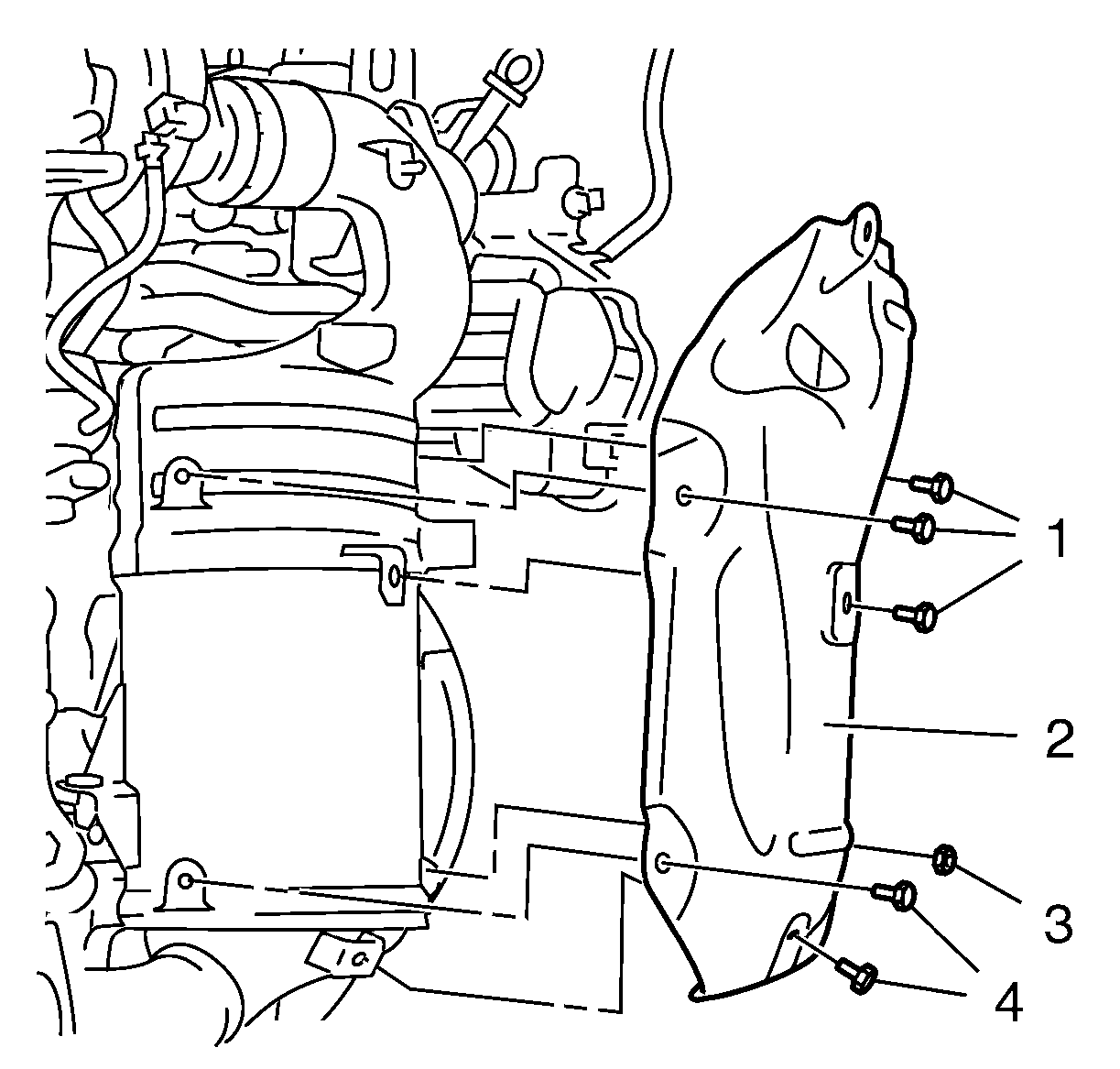

    Fig 1: Catalytic Converter Heat Shield Nut
    GM2026556Courtesy of GENERAL MOTORS COMPANY
  2. Install the catalytic converter heat shield nut (3) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Install the catalytic converter heat shield 5 bolts (1, 4) and tighten to 8 N.m (71 lb in).
