Camshaft Position Sensor Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the camshaft position sensor bolt (1).

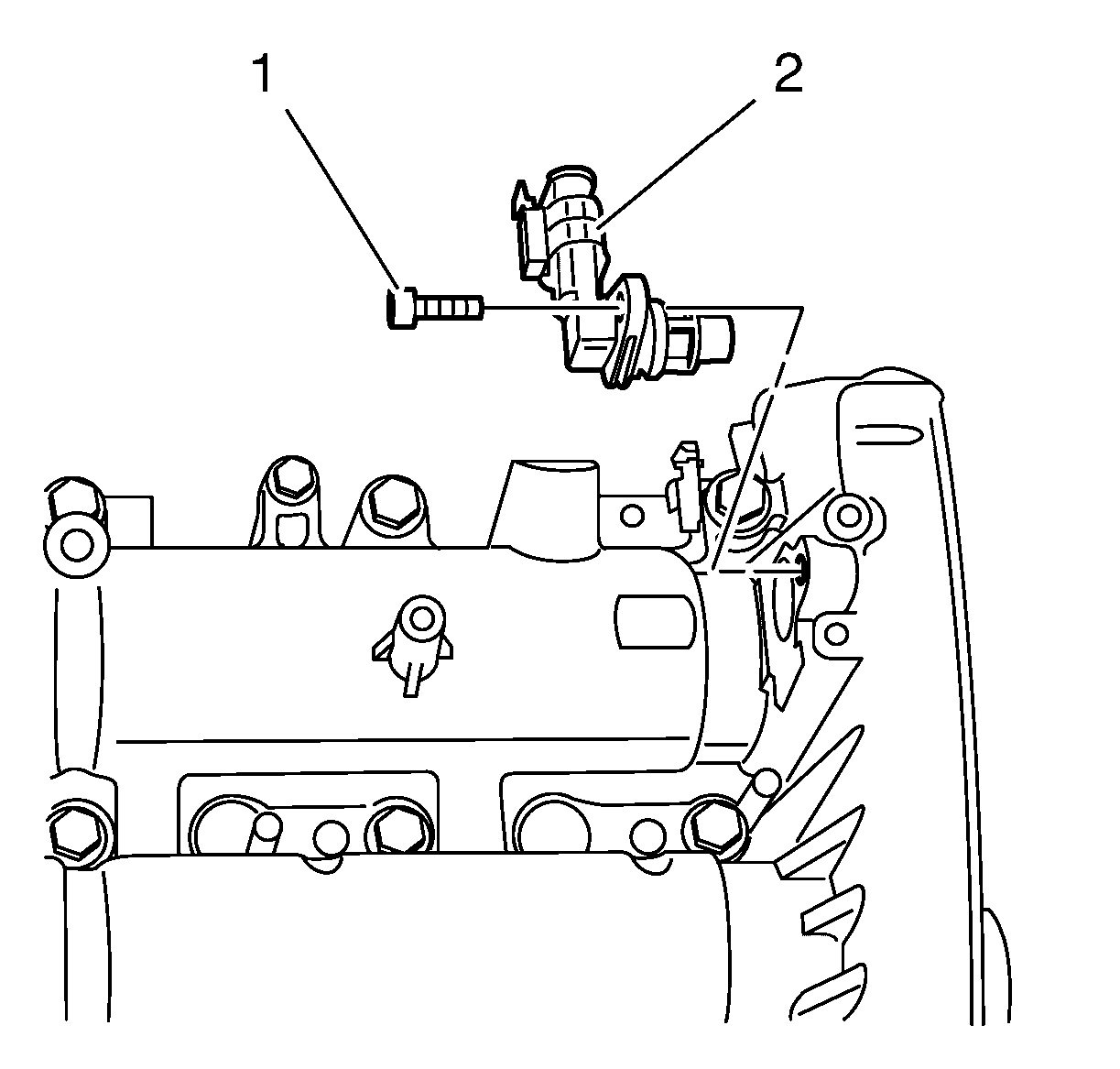

    Fig 1: Camshaft Position Sensor And Bolt
    GM2026638Courtesy of GENERAL MOTORS COMPANY
  2. Remove the camshaft position sensor (2).
  3. Remove the camshaft position sensor O-ring.
