Camshaft Housing Installation

WARNING: This page is about a different variant/trim than selected.

Install a NEW camshaft housing gasket.

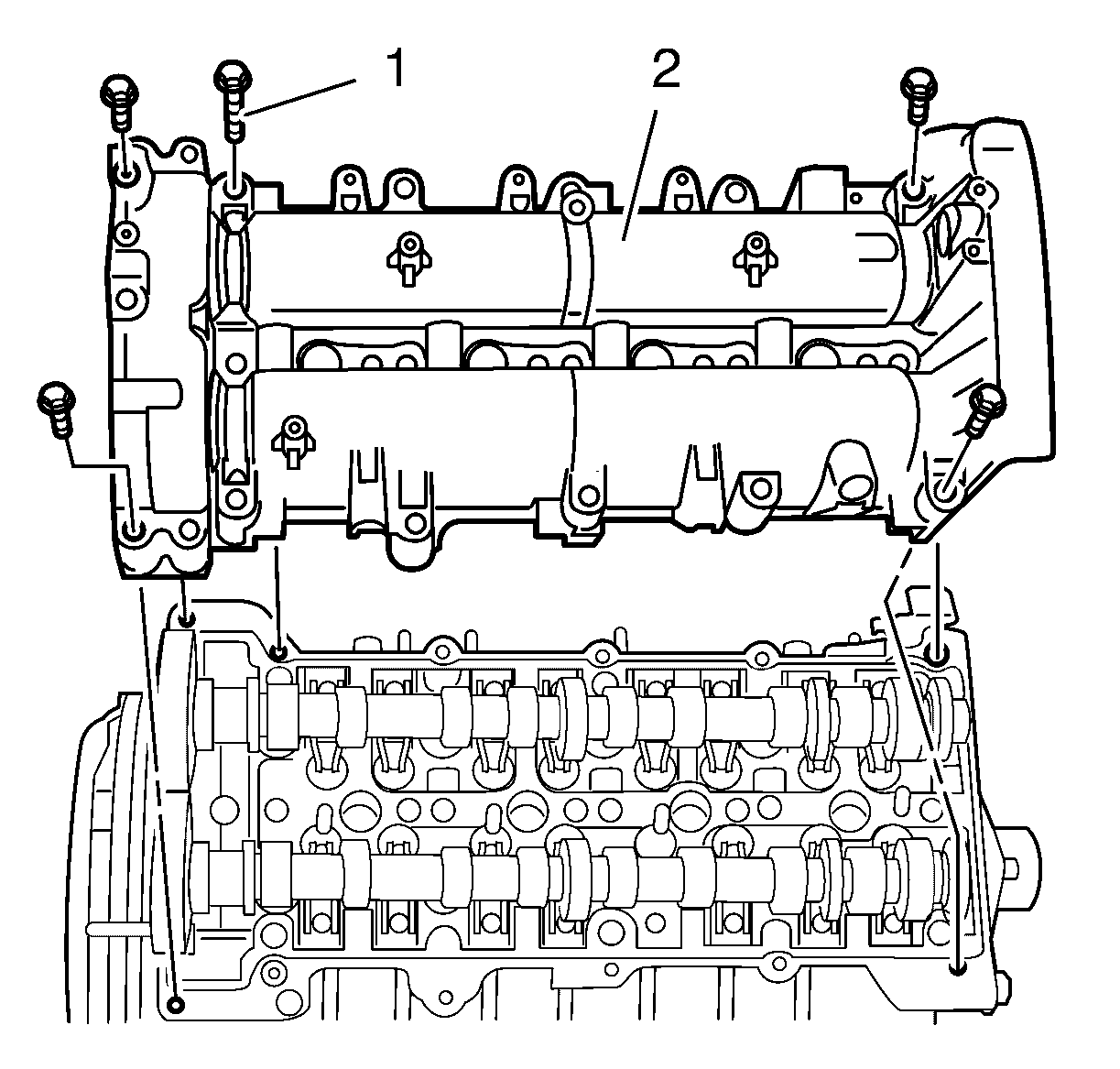

Fig 1: Camshaft Housing Bolts
Courtesy of GENERAL MOTORS COMPANY
Install the camshaft housing (2).
Install the camshaft housing bolts to the camshaft housing.
Tighten the camshaft housing bolts in sequence as shown in the graphic to 25 N.m (18 lb ft).

Fig 2: Camshaft Housing
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .

NOTE: Remind different bolt lengths.

NOTE: Tighten the bolts in several passes to allow the camshaft housing lower evenly.
