Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the camshaft front oil seal ring (1). Use a suitable tool.

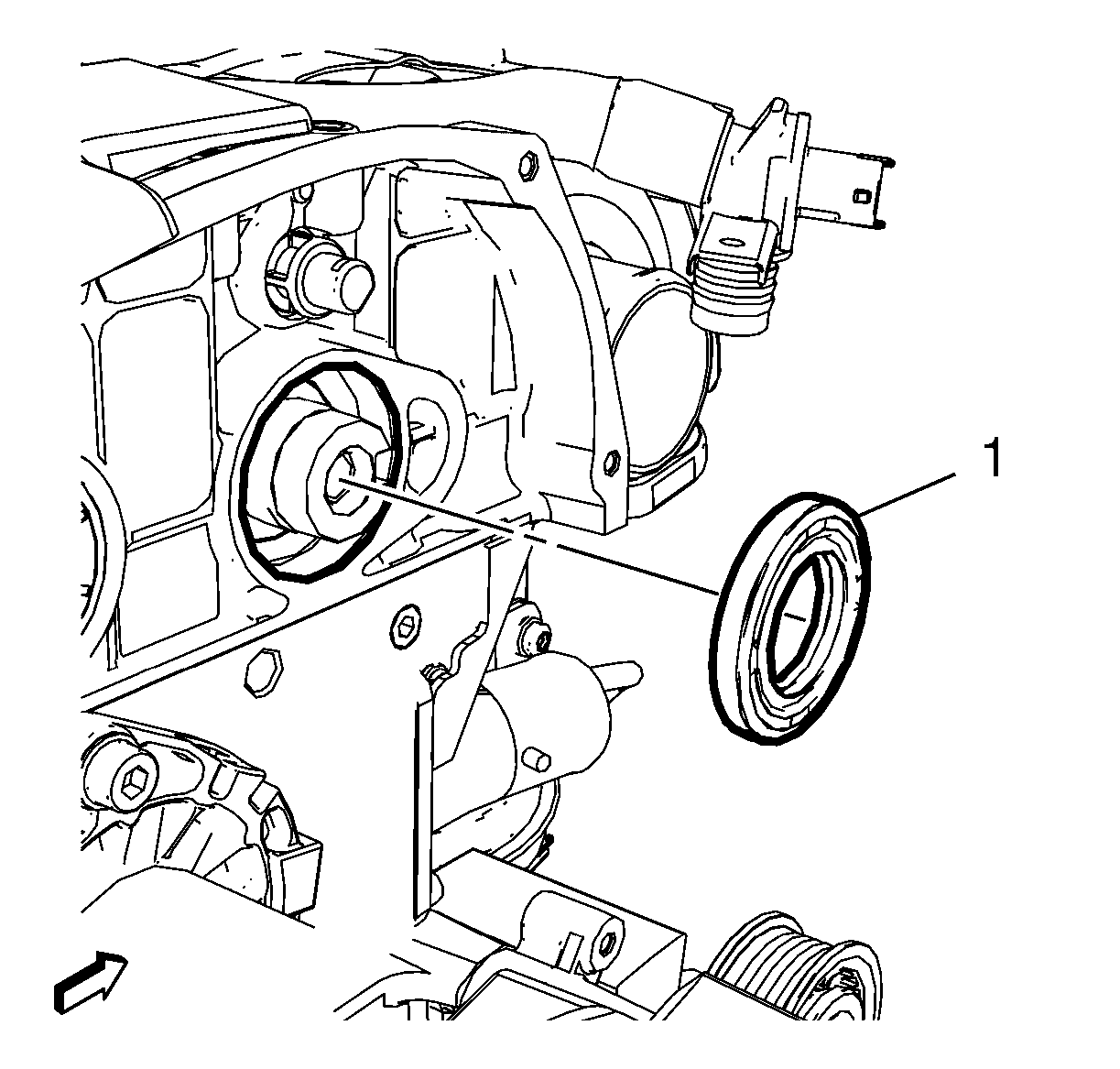

    Fig 1: Camshaft Front Oil Seal Ring
    GM2871822Courtesy of GENERAL MOTORS COMPANY
